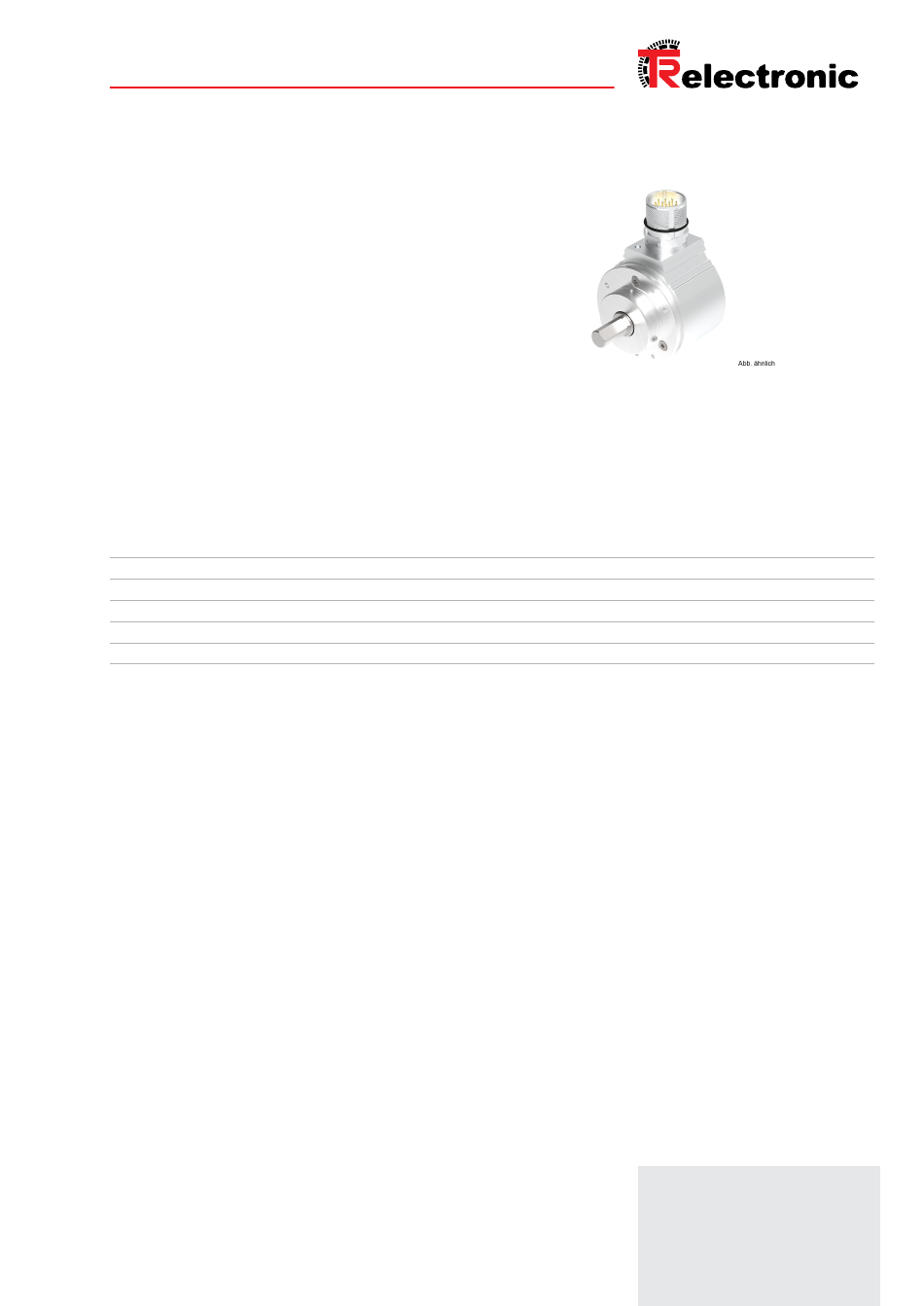

Page 1 TR-ECE-BA-DGB-0039-14.pdf Betriebsanleitung de/en Baureihe 362/582/802/1102 SSI TRWinp. TR-ECE-BA-DGB-0141-05.pdf Konformitätserklärung de/en EU-Konformitätserklärung ECE (EMV+RoHS) TR-ECE-KE-DGB-0374-05.pdf Konformitätserklärung de/en UKCA, Konformitätserkl. ECE (EMV+RoHS) TR-ECE-KE-GB-0375-05.pdf Technische Daten Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 1/1 info@tr-electronic.de www.tr-electronic.de...
Page 2 Seite 2 - 32 Page 33 - 63 Drehgeber Baugröße 58 _Grundlegende Sicherheitshinweise _Verwendungszweck _Allgemeine Funktionsbeschreibung _Montagehinweise Montageanleitung...
Page 3 Menüauswahlen von Software.  < >  weist auf Tasten der Tastatur Ihres Computers hin (wie etwa <RETURN>).  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 4 4.2 Sacklochwelle ......................... 19 4.3 Hohlwelle ..........................25 4.4 Kupplung ..........................29 5 Zubehör ............................31  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 5 - Mitgeltende Dokumente Magnetische-Abtastung aufgenommen 23.05.17 Verallgemeinerung auf Baugröße 58 14.02.18  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 64 TR - ECE - BA - DGB - 0035 - 14 02/14/2018...
Page 6 Dokumentationen z.B. Produktdatenblätter, Maßzeichnungen, Prospekte und schnittstellenspezifische Benutzerhandbücher etc. dar.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 5 of 64...
Page 7 5-stellige fortlaufende Nr. Die Produkte sind durch aufgeklebte Typenschilder gekennzeichnet und sind Bestandteil einer Anlage.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 8 Normen und Richtlinien entwickelt, konstruiert und gefertigt. Eine entsprechende Konformitätserklärung kann bei der Firma TR-Electronic GmbH angefordert werden. Der Hersteller der Produkte, die TR-Electronic GmbH in D-78647 Trossingen, besitzt ein zertifiziertes Qualitätssicherungssystem gemäß ISO 9001. 1.4 Verwendete Abkürzungen und Begriffe Europäische Gemeinschaft...
Page 9 Schnittstelle über verschiedene Interface-Module ausgegeben. Prinzip: Codescheibe mit Opto-Elektronik zur Erfassung der Schritte pro Umdrehung.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 10 Prinzip: Magnet-Quelle zur Erfassung der Schritte pro Umdrehung.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 9 of 64...
Page 11 Durch eine entsprechende Zählerauswertung in der Folgeelektronik kann die Mess- System – Auflösung elektronisch verdoppelt oder vervierfacht werden: Referenz-Signale nicht dargestellt!  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 12 Anlage/Maschine in die das Mess-System eingebaut werden soll, den Bestimmungen der EU-EMV-Richtlinie, den harmonisierten Normen, Europanormen oder den entsprechenden nationalen Normen entspricht.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018...
Page 13 Beachtung der Mitgeltenden Dokumente verwenden! Insbesondere Störungen, die die Sicherheit beeinträchtigen können, umgehend beseitigen (lassen)!  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 14  Eigenmächtige vorgenommene mechanische oder elektrische Veränderungen am Mess-System.  Eigenmächtige durchgeführte Reparaturen.  Katastrophenfälle durch Fremdeinwirkung und höhere Gewalt.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 15 Installation, Inbetriebnahme und Bedienung festlegen. Beaufsichtigungspflicht bei zu schulendem oder anzulernendem Personal !  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 16 Muss nach der Lebensdauer des Gerätes eine Entsorgung vorgenommen werden, sind die jeweils geltenden landesspezifischen Vorschriften zu beachten.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 17 Unsachgemäßes Verpackungsmaterial kann beim Transport Schäden am Gerät verursachen. Lagerung Lagertemperatur: siehe Produktdatenblatt Trocken lagern  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 64 TR - ECE - BA - DGB - 0035 - 14 02/14/2018...
Page 18 4 Montagehinweise / Schema 4.1 Vollwelle Flansch-Montage Klemmflansch-Montage  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 17 of 64...
Page 19 Montagehinweise / Schema Spannpratzen-Montage Servoklammern-Montage  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 64 TR - ECE - BA - DGB - 0035 - 14 02/14/2018...
Page 20 4.2 Sacklochwelle Stift-Nut axial mit Klemmring Stift-Nut radial mit Klemmring  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 19 of 64...
Page 21 Montagehinweise / Schema Stift-Nut axial mit Klemmring, Stift kundenseitig Stift-Nut axial mit axialer Schraube  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 22 Stift-Nut radial mit axialer Schraube Stift-Nut axial mit axialer Schraube, Stift kundenseitig  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 21 of 64...
Page 23 Montagehinweise / Schema Stift-Nut axial mit Kerbnut und axialer Schraube Stift-Nut radial mit Kerbnut und axialer Schraube  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 24 Stift-Nut axial mit Kerbnut und axialer Schraube, Stift kundenseitig Drehmomentstütze mit Klemmring  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 23 of 64...
Page 25 Montagehinweise / Schema Drehmomentstütze mit Kerbnut und axialer Schraube Drehmomentstütze mit axialer Schraube  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 26 4.3 Hohlwelle Stift-Nut axial mit Klemmring flanschseitig Stift-Nut radial mit Klemmring flanschseitig  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 25 of 64...
Page 27 Montagehinweise / Schema Stift-Nut axial mit Klemmring flanschseitig, Stift kundenseitig Stift-Nut axial mit Klemmring haubenseitig  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 26 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 28 Stift-Nut radial mit Klemmring haubenseitig Stift-Nut axial mit Klemmring haubenseitig, Stift kundenseitig  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 27 of 64...
Page 29 Montagehinweise / Schema Drehmomentstütze mit Klemmring flanschseitig Drehmomentstütze mit Klemmring haubenseitig  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 30  Radiale und axiale Toleranz zur Kundenwelle  Weniger Montageteile notwendig  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 29 of 64...
Page 31 (Sicherheit von Maschinen siehe DIN EN ISO 12100). 92Sh A - GS [Shore]  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 32 5 Zubehör www.tr-electronic.de/produkte/drehgeber/zubehoer.html  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 31 of 64...
Page 34 _Intended use Assembly Instructions _General functional description _Instructions for mounting  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 33 of 64...
Page 35  < >  indicates keys on your computer keyboard (such as <RETURN>).  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 34 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 36 4.3 Hollow through shaft ....................... 57 4.4 Integrated claw coupling ......................61 5 Accessories ............................. 63  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 37 Magnetic scanning unit added 05/23/17 Generalization to construction size 58 02/14/18  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 36 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 38 As the documentation is arranged in a modular structure, this Assembly Instruction is supplementary to other documentation, such as product datasheets, dimensional drawings, leaflets and interface-specific User Manuals etc.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018...
Page 39 Consecutive number, 5-digit The products are labeled with affixed nameplates and are components of a system.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 38 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 40 The measuring systems have been developed, designed and manufactured under observation of the applicable international and European standards and directives. A corresponding declaration of conformity can be requested from TR-Electronic GmbH. The manufacturer of the product, TR-Electronic GmbH in D-78647 Trossingen, operates a certified quality assurance system in accordance with ISO 9001.
Page 41 Principle: Code disk and opto-electronic scanning unit to identify the steps per revolution.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 40 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 42 Principle: Magnet source to identify the steps per revolutions.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 41 of 64...
Page 43 By a corresponding counter evaluation in the user electronics the measuring system resolution can be doubled or quadrupled electronically: Reference signals not represented!  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 42 of 64...
Page 44 EU EMC Directive, the harmonized standards, European standards or the corresponding national standards.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018...
Page 45 Other applicable documents! Faults which could threaten safety should be eliminated without delay!  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 44 of 64...
Page 46  Repairs carried out autonomously.  Third party interference and Acts of God.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 47  Define clear rules of responsibilities for the assembly, installation, start-up and operation. The obligation exists to provide supervision for trainee personnel !  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 46 of 64...
Page 48 Disposal If disposal has to be undertaken after the life span of the device, the respective applicable country-specific regulations are to be observed.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 49 Storage Storage temperature: see product data sheet Store in a dry place  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 48 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 50 4 Instructions for mounting / schematic 4.1 Solid shaft Flange mounting Clamping flange  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 49 of 64...
Page 51 Instructions for mounting / schematic Clamping brackets Servo clamps  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 50 of 64 TR - ECE - BA - DGB - 0035 - 14 02/14/2018...
Page 52 4.2 Blind shaft Pin-Groove axial with clamping ring Pin-Groove radial with clamping ring  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 51 of 64...
Page 53 Instructions for mounting / schematic Pin-Groove axial with clamping ring, pin customer side Pin-Groove axial with axial screw  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 52 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 54 Pin-Groove radial with axial screw Pin-Groove axial with axial screw, pin customer side  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 53 of 64...
Page 55 Instructions for mounting / schematic Pin-Groove axial with V-groove and axial screw Pin-Groove radial with V-groove and axial screw  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 54 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 56 Pin-Groove axial with V-groove and axial screw, pin customer side Torque holder with clamping ring  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 57 Instructions for mounting / schematic Torque holder with V-groove and axial screw Torque holder with axial screw  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 56 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 58 4.3 Hollow through shaft Pin-Groove axial with clamping ring front Pin-Groove radial with clamping ring front  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 59 Instructions for mounting / schematic Pin-Groove axial with clamping ring front, pin customer side Pin-Groove axial with clamping ring back  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 58 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 60 Pin-Groove radial with clamping ring back Pin-Groove axial with clamping ring back, pin customer side  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 61 Instructions for mounting / schematic Torque holder with clamping ring front Torque holder with clamping ring back  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 60 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 62  Simple and fast mounting / dismounting  Radial and axial tolerance to the customer shaft  Only few components necessary  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14...
Page 63 (Safety of machines see DIN EN ISO 12100). 92Sh A - GS [Shore]  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 62 of 64 TR - ECE - BA - DGB - 0035 - 14...
Page 64 5 Accessories www.tr-electronic.com/products/rotary-encoders/accessories.html  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany 02/14/2018 TR - ECE - BA - DGB - 0035 - 14 Page 63 of 64...
Page 66 Seite 2 - 54 Page 55 - 107 Absolute Encoder C__-58/80/110 Explosion Protection Enclosure Explosionsschutzgehäuse / C_ _ -58 C_H-80 C_H-110 Abbildungen ähnlich Stock photos _Zusätzliche Sicherheitshinweise _Additional safety instructions _Installation _Installation _Inbetriebnahme _Commissioning _Parametrierung _Parameterization _Fehlerursachen und Abhilfen _Cause of faults and remedies Benutzerhandbuch User Manual 437696 (437860), 437732, 43774A, 437753, 437744, 437765, 43776E, 437831, 437A01, 437835...
Page 67 Menüauswahlen von Software. ″ < > ″ weist auf Tasten der Tastatur Ihres Computers hin (wie etwa <RETURN>).  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 68 5.2.3 Ausgabecode ......................27 5.2.4 Negative Werte ....................... 27 5.3 Endschalter ..........................28 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 3 of 107...
Page 69: Table Of Contents
7.2.3 Ausgabecode ......................39 7.3 Istwerte ........................... 39 7.3.1 Position ........................39  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 70 8.4.2 Geschwindigkeit in Umdr/Min ................. 52 9 Fehlerursachen und Abhilfen ......................53 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 5 of 107...
Page 71 19.06.17 - Kapitel „Anschluss – Hinweise“ bearbeitet EX-Passus „neutral“ 30.07.20  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 72 Außendurchmesser ∅ 110 mm Singleturn Multiturn Fortlaufende Nummer * = Platzhalter Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 7 of 107...
Page 73 National Electrical Code Periodendauer SSI Monozeit Pausenzeit Verzögerungszeit Vorzeichen Hexadezimale Darstellung  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 74 Dies gilt in besonderem Maße für nur gelegentlich, z. B. bei der Parametrierung des Mess-Systems, tätig werdendes Personal. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 75 Der gefahrlose Einsatz erfordert zusätzliche Maßnahmen bzw. Anforderungen. Diese sind vor der Erstinbetriebnahme zu erfassen und müssen entsprechend umgesetzt werden.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 76 Von Nachteil ist aber die stark erhöhte Übertragungsdauer. Abbildung 1: SSI Prinzip-Eingangsschaltung Abbildung 2: SSI-Ausgangsschaltung Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 11 of 107...
Page 77 ● Es wird empfohlen, nach Abschluss der Montagearbeiten eine visuelle Abnahme mit Protokoll zu erstellen.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 78 Ausgängen zur Verfügung, die Empfängerbausteine erkennen Pegel von ± 200 mV noch als gültiges Signal. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 79 Die Steckerbelegungsnummer ist auf dem Typenschild des Mess-Systems vermerkt.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 80 Für den Betrieb ab Windows 7 wird der USB PC-Adapter HID (V5), Art-Nr.: 490-00313 mit Installationsanleitung TR-E-TI-DGB-0103 benötigt. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 15 of 107...
Page 81 Takt+ High Daten+ High intern re-triggerbares Monoflop Abbildung 4: SSI-Übertragungsformat  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 82 Der ausgegebene Positionswert wird mit einer Nullpunktskorrektur, der eingestellten Zählrichtung und den eingegebenen Getriebeparametern verrechnet. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 83 Anzahl Umdrehungen Zähler Messlänge in Schritten = Anzahl Schritte pro Umdrehung * Anzahl Umdrehungen Nenner  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 84 Den mechanisch zurückgelegten Weg in mm vermessen Istposition des Mess-Systems an der angeschlossenen Steuerung ablesen Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 85 = 1348,073499 Schritte / Umdr. * 1 Umdrehung Nenner = 5521709 Schritte (abgerundet)  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 86 –1 073 741 824 Obergrenze 1 073 741 824 Default Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 21 of 107...
Page 88 S1 S2 S3 S4 S5 S6 S7 Anzahl Umdrehungen Schrittzahl pro Umdrehung Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 23 of 107...
Page 89 Wegen der hohen Störsicherheit bei diesem Übertragungsformat, wird diese Technik z.B. in elektrisch stark „verseuchter“ Umgebung mit langen Verbindungswegen eingesetzt.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 90 SSI-Sonderbits auf „ständig 0V“ programmiert und erzeugen, wenn sie zum Tragen kommen, bis zum 26. Takt nachlaufende „Nullen“. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 92 0x9999 0x8001 0xFFFE 0x8002 0x9998 0x8002 0xFFFD 0x8003 0x9997 0x8003 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 27 of 107...
Page 93: Sonderbits
Bewegung oder Richtungsänderung gemeldet wird. Die Hysterese gilt auch für die nachfolgend geschilderten Signale Aufwärts gegangen und Bewegung.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 107...
Page 94: Aufwärts Gegangen
Im Fehlerfall wird es invertiert. Dadurch wird die zusätzliche Übertragung eines Encoderfehlers eingespart. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 95: Istwerte
5.5.2 Umdr/Min Im Onlinezustand wird im Feld Umdr/Min die aktuelle Mess-System-Drehzahl in min angezeigt.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 96: Trwinprog Parametrierung: Cm_58
Legt die Anzahl der Umdrehungen fest, bevor das Mess-System wieder bei null beginnt. Untergrenze Obergrenze 4096 Default 4096 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 31 of 107...
Page 97: Auflösung (Anzahl Der Schritte Pro Umdrehung)
Auswahl Beschreibung Default freigegeben Preset-Justage-Funktion aktiv kundenspezifisch gesperrt Preset-Justage-Funktion inaktiv  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 32 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 98: Positionswerte
6.3.4 SSI-Monozeit Untergrenze 20 µs Obergrenze 50 µs Default 20 µs Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 33 of 107...
Page 99: Ssi-Sonderbits
Parity-Sonderbit folgt immer nach dem letzten Datenbit der Positionsausgabe. Es wird aus allen vorausgehenden Bits berechnet. Daher ist auch nur ein einziges Parity- Sonderbit möglich.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 34 of 107...
Page 100: Trwinprog Parametrierung: Ce_58 Bis 15 Bit Auflösung
Zur Berechnung können die Parameter Schritte/Umdr. und Anzahl Umdrehungen vom Typenschild des Mess-Systems abgelesen werden. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 101: Anzahl Umdrehungen
Auswahl Beschreibung Default freigegeben Preset-Justage-Funktion aktiv kundenspezifisch gesperrt Preset-Justage-Funktion inaktiv  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 36 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 102: Ssi
Programmierte Anzahl Datenbits = 22 1 – 22 – P 2 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 37 of 107...
Page 103 – P 2 – P 2 Anzahl Umdrehungen Schrittzahl pro Umdrehung  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 38 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 104: Anzahl Datenbits
Funktion Daten zum Gerät schreiben übernommen. gewünschter Positionswert < prog. Messlänge in Schritten Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 39 of 107...
Page 105: Trwinprog Parametrierung: Co_58 / C_H80 / C_H110
Umdrehungen Zähler/Umdrehungen Nenner eine Kommazahl sein darf. Der ausgegebene Positionswert wird mit einer Nullpunktskorrektur, der eingestellten Zählrichtung und den eingegebenen Getriebeparametern verrechnet.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 40 of 107...
Page 106: Messlänge In Schritten
Messlänge in Schritten = Anzahl Schritte pro Umdrehung * Anzahl Umdrehungen Nenner Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 41 of 107...
Page 107 Zu erfassende Mechanik in Endlage bringen Den mechanisch zurückgelegten Weg in mm vermessen Istposition des Mess-Systems an der angeschlossenen Steuerung ablesen  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 42 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 108 = 1348,073499 Schritte / Umdr. * 1 Umdrehung Nenner = 5521709 Schritte (abgerundet) Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 43 of 107...
Page 109: Presetwert
Preset-Justage-Funktion inaktiv 8.1.5 Messwertanfang Keine Funktion, wird intern auf „0“ gesetzt.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 44 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 110: Ssi
Programmierte Anzahl Datenbits = 22 1 – 22 – P 2 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 45 of 107...
Page 111: Parity Gerade
Datenbit der Positionsausgabe angehängt. Nach jeder fehlerfreien SSI- Übertragungssequenz wird der momentane Zustand des Toggelbits geändert. Im Fehlerfall wird der letzte Zustand des Toggelbits vor dem Fehler beibehalten.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 46 of 107...
Page 112: Wiederholung Mit 1-3 Pausentakten
– P 2 – P 2 Datenwort 1 Datenwort 2 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 47 of 107...
Page 113: Prüfsumme 28 Nach 25-28 Datenbits
Wegen der hohen Störsicherheit bei diesem Übertragungsformat, wird diese Technik z.B. in elektrisch stark „verseuchter“ Umgebung mit langen Verbindungswegen eingesetzt.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 48 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 114: Anzahl Datenbits
Beschreibung Default Binär SSI-Ausgabecode = Binär Gray SSI-Ausgabecode = Gray Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 49 of 107...
Page 115: Negative Werte
Drehrichtung im Uhrzeigersinn, K1 nacheilend mit Blick auf die Anflanschung  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 50 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 116: Nullimpuls Wenn
Blick auf die Anflanschung K1 = 0, K2 = 0 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 51 of 107...
Page 117: Position
Im Onlinezustand wird im Feld Geschwindigkeit in Umdr/Min die aktuelle Mess-System-Drehzahl in min angezeigt.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 52 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 118: Fehlerursachen Und Abhilfen
Lässt sich der Fehler auch nicht durch mehrmaliges Speicherfehler Quittieren zurücksetzen, muss das Mess-System getauscht werden. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 53 of 107...
Page 121 ″ < > ″ indicates keys on your computer keyboard (such as <RETURN>).  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 56 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 122 5.2.3 Transmit code ......................81 5.2.4 Negative values ...................... 81 5.3 Cams ............................82 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 57 of 107...
Page 123 7.2.3 Transmit code ......................93 7.3 Position value.......................... 93 7.3.1 Position ........................93  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 58 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 124 8.4.2 Speed 1/min......................106 9 Causes of faults and remedies ...................... 107 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 59 of 107...
Page 125: Revision Index
06/19/17 - Chapter “Connection – notes” edited EX passage “neutral” 07/30/20  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 60 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 126: General Information
Single turn Multi turn Consecutive number * = Wild cards Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 61 of 107...
Page 127: Abbreviations Used / Terminology
SSI mono time Pause time Delay time Sign Hexadecimal notation  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 62 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 128: Additional Safety Instructions
This particularly applies for personnel who are only deployed occasionally, e.g. at the parameterization of the measurement system. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 129: Usage In Explosive Atmospheres
Fail-safe usage requires additional measures and requirements. Such measures and requirements must be determined prior to initial commissioning and must be taken and met accordingly.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 64 of 107...
Page 130: Ssi Information
Figure 1: SSI Principle input circuit Figure 2: SSI Output circuit Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 65 of 107...
Page 131: Installation / Preparation For Commissioning
● Upon completion of installation, a visual inspection with report should be carried out.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 66 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 132: Rs422 Data Transmission Technology
Under load RS422 transmitters provide output levels of ±2 V between the two outputs. RS422 receivers still recognize levels of ±200 mV as valid signal. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 133: Cable Definition
„www.tr-electronic.com/service/downloads/pin-assignments.html”. The number of the pin assignment is noted on the nameplate of the measuring system.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 68 of 107...
Page 134: Connection To The Pc (Programming)
For operation ex Windows 7 the USB PC adapter HID (V5), order no.: 490-00313 with installation guide TR-E-TI-DGB-0103 must be used. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 69 of 107...
Page 135: Ssi Interface
High internal Monoflop, can be retriggered Figure 4: SSI transmission format  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 70 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 136: Trwinprog Parameterization: C_58, Ce_58 - 13 Bit Resolution
The position value output is calculated with a zero point correction, the count direction set and the gearbox parameter entered. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 137: Total Number Of Steps
Number of revolutions numerator Total number of steps = Number of steps per revolution * Number of revolutions denominator  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 72 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 138 Read off the actual value of the measuring system from the controller connected Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 73 of 107...
Page 139 = 1348.073499 steps / rev. * 1 revolution denominator = 5521709 steps (rounded off)  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 74 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 140: Preset Value
–1 073 741 824 upper limit 1 073 741 824 default Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 75 of 107...
Page 141: Ssi
Programmed number of data bits = 22 1 – 22 – P 2  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 76 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 142: Tree Format Yes
S1 S2 S3 S4 S5 S6 S7 Number of revolutions Number of steps per revolution Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 77 of 107...
Page 143: Check Sum
Because of high immunity to disturbance with this transmission format, this technology is used e.g. in areas with strong electro smog and long connection lines.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 78 of 107...
Page 144: 26-Bit + Repeat
"Logical 0V" and produce, if they can be output, added "zeros" up to the 26. clock. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 146: Number Of Data Bits
0x9999 0x8001 0xFFFE 0x8002 0x9998 0x8002 0xFFFD 0x8003 0x9997 0x8003 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 81 of 107...
Page 148: Moving
In the case of an error, it is inverted. Its purpose is to make additional transmitting of the encoder error unnecessary. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 149: Position Value
5.5.2 Speed 1/min. In the online state in the field Speed 1/min. the current measuring system speed in is displayed.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 84 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 150: Trwinprog Parameterization: Cm_58
4096 default 4096 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 85 of 107...
Page 151: Resolution (Number Of Steps Per Revolution)
Preset adjustment function active user-specific disabled Preset adjustment function inactive  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 86 of 107 TR - ECE - BA - DGB - 0039 - 14 07/30/2020...
Page 152: Position-Values
20 μs upper limit 50 μs default 20 μs Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 87 of 107...
Page 153: Ssi-Special Bits
It is calculated from all previous bits. About that, only one single Parity special bit is possible.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 88 of 107...
Page 154: Trwinprog Parameterization: Ce_58 - 15 Bit Resolution
To calculate, the parameters Number of steps per revolution and the Number of revolutions can be read on the measuring system nameplate. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 155: Number Of Revolutions
Preset adjustment function active user-specific Not in use Preset adjustment function inactive  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 90 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 156: Ssi
Programmed number of data bits = 22 1 – 22 – P 2 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 91 of 107...
Page 157: Tree Format Yes
– P 2 Number of revolutions Number of steps per revolution  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 92 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 159: Trwinprog Parameterization: Co_58 / C_H80 / C_H110
/ Revolutions denominator can be a decimal number. The position value output is calculated with a zero point correction, the count direction set and the gearbox parameter entered.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 94 of 107...
Page 160: Total Number Of Steps
Total number of steps = Number of steps per revolution * Number of revolutions denominator Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14...
Page 161 Measure the mechanical distance covered in mm Read off the actual value of the measuring system from the controller connected  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 96 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 162 = 1348.073499 steps / rev. * 1 revolution denominator = 5521709 steps (rounded off) Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 97 of 107...
Page 163: Preset Value
Preset adjustment function inactive 8.1.5 Origin Type Not supported, internally set to “0”.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 98 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 164: Ssi
Programmed number of data bits = 22 1 – 22 – P 2 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 99 of 107...
Page 165: Parity Even
Toggle bit is changed. In the event of an error the last condition of the Toggle bit, before the error was occurred, is maintained.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany...
Page 166: Repeat With 1-3 Low Clocks
– P 2 – P 2 Data word 1 Data word 2 Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 101 of 107...
Page 167: Check Sum 28 After 25-28 Data Bits
Because of high immunity to disturbance with this transmission format, this technology is used e.g. in areas with strong electro smog and long connection lines.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 102 of 107...
Page 168: Number Of Data Bits
SSI output code = Binary Gray SSI output code = Gray Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 103 of 107...
Page 169: Negative Values
K1 after K2 clockwise, with view onto the flange side  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 104 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 171: Position Value
8.4.2 Speed 1/min. In the online state in the field Speed 1/min. the current measuring system speed in is displayed.  TR-Electronic GmbH 2005, All Rights Reserved Printed in the Federal Republic of Germany Page 106 of 107 TR - ECE - BA - DGB - 0039 - 14...
Page 172: Causes Of Faults And Remedies
If the error cannot be reset, the measuring system must be Memory error replaced. Printed in the Federal Republic of Germany  TR-Electronic GmbH 2005, All Rights Reserved 07/30/2020 TR - ECE - BA - DGB - 0039 - 14 Page 107 of 107...
Page 173 Seite 2 - 32 Page 33 - 64 Drehgeber Baureihe: - 362 - 582 - 802 - 1102 _Zusätzliche Sicherheitshinweise _Installation _Inbetriebnahme _Parametrierung _Fehlerursachen und Abhilfen Benutzerhandbuch 437582...
Page 174 Courier-Schrift zeigt Text an, der auf dem Display bzw. Bildschirm sichtbar ist und Menüauswahlen von Software.  < >  weist auf Tasten der Tastatur Ihres Computers hin (wie etwa <RETURN>).  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 64 TR-ECE-BA-DGB-0141 v05...
Page 175 5.3 Position ........................... 26 5.3.1 Position ........................26 5.4 Endschalter ..........................26 5.4.1 Endschalter ein/aus ....................26 5.4.2 Überdrehzahl 1/min ....................26  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 3 of 64...
Page 176: Inhaltsverzeichnis
5.7.3 Nullimpulsverknüpfung .................... 30 5.7.4 Set K0 ........................31 5.7.5 Signalpegel ......................31 6 Fehlerursachen und Abhilfen ......................32  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 177: Änderungs-Index
Optionaler V/R-Eingang ergänzt (high- und low-aktiv) 19.03.2021 Togglebit ergänzt (Kapitel 5.5.8) 23.09.2022 - Gültigkeit um Baureihe 362 erweitert 11.11.2022 - Tannenbaum-Format entfernt  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 5 of 64...
Page 178: Allgemeines
- Baureihe 362: www.tr-electronic.de/s/S024834 - Baureihe 582: www.tr-electronic.de/s/S021100 - Baureihe 802: www.tr-electronic.de/s/S021101 - Baureihe 1102: www.tr-electronic.de/s/S021102 • optional: -Benutzerhandbuch  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 179: Verwendete Abkürzungen / Begriffe
Least Significant Bit (niederwertiges Bit) Most Significant Bit (höchstwertiges Bit) National Electrical Code Periodendauer SSI Monozeit Pausenzeit Verzögerungszeit Vorzeichen Hexadezimale Darstellung  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 7 of 64...
Page 180: Zusätzliche Sicherheitshinweise
Der gefahrlose Einsatz erfordert zusätzliche Maßnahmen bzw. Anforderungen. Diese sind vor der Erstinbetriebnahme zu erfassen und müssen entsprechend umgesetzt werden.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 64 TR-ECE-BA-DGB-0141 v05...
Page 181: Ssi Informationen
Von Nachteil ist aber die stark erhöhte Übertragungsdauer. Abbildung 1: Prinzip-SSI-Eingangsschaltung mit Optokoppler Abbildung 2: Prinzip SSI-Eingangsschaltung RS422 Abbildung 3: Prinzip SSI-Ausgangsschaltung RS422  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05...
Page 182: Installation / Inbetriebnahmevorbereitung
Richtlinie sowie die Schirmungs- und Erdungsrichtlinien in den jeweils gültigen Fassungen zu beachten. ● Es wird empfohlen, nach Abschluss der Montagearbeiten eine visuelle Abnahme mit Protokoll zu erstellen.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 183: Rs422 Übertragungstechnik
Ausgängen zur Verfügung. Die Empfängerbausteine erkennen einen Pegel von ± 200 mV noch gültiges Signal, dies gilt allerdings nicht einer Eingangsschaltung mit Optokoppler.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 11 of 64...
Page 184: Kabelspezifikation
Bei der Auslieferung des Mess-Systems wird jeweils eine Steckerbelegung in gedruckter Form beigelegt kann nachträglich auch Seite „www.tr-electronic.de/service/downloads/steckerbelegungen.html?L=0“ heruntergeladen werden. Die Steckerbelegungsnummer ist auf dem Typenschild des Mess-Systems vermerkt.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 185: Anbindung An Den Pc (Programmierung)
TR-E-TI-DGB-0074, Deutsch/Englisch Für den Betrieb ab Windows 7 wird der USB PC-Adapter HID (V5), Art-Nr.: 490-00313 mit Installationsanleitung TR-E-TI-DGB-0103 benötigt.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 13 of 64...
Page 186: V/R-Eingang (Optional)
Mess-System-Position im Uhrzeigersinn steigend beschaltet Mess-System-Position im Uhrzeigersinn fallend mit Blick auf Anflanschung, Zählrichtungseinstellung (Kap.: 5.1.1) = steigend  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 187: Ssi Schnittstelle
(n+1) als die zu übertragende Anzahl der Datenbits. Abbildung 4: Typische SSI-Übertragungssequenzen High Takt+ High Daten+ High intern re-triggerbares Monoflop Abbildung 5: SSI-Übertragungsformat  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 15 of 64...
Page 188: Parametrierung Über Trwinprog
Umdrehungen Zähler/Umdrehungen Nenner eine Kommazahl sein darf. Der ausgegebene Positionswert wird mit einer Nullpunktskorrektur, der eingestellten Zählrichtung und den eingegebenen Getriebeparametern verrechnet.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 64...
Page 189: Messlänge In Schritten
Default Nenner Formel für Getriebeberechnung: Anzahl Umdrehungen Zähler Messlänge in Schritten = Anzahl Schritte pro Umdrehung * Anzahl Umdrehungen Nenner  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 17 of 64...
Page 190 Zu erfassende Mechanik in Endlage bringen Den mechanisch zurückgelegten Weg in mm vermessen Istposition des Mess-Systems an der angeschlossenen Steuerung ablesen  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 64 TR-ECE-BA-DGB-0141 v05...
Page 191 Anzahl Umdrehungen Nenner 4096 Umdrehungen Zähler = 1348,073499 Schritte / Umdr. * 1 Umdrehung Nenner = 5521709 Schritte (abgerundet)  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 19 of 64...
Page 192: Presetwert
Abschnitt „SSI“ die Darstellungsart (2er-Komplement oder Vorzeichen und Betrag) für die negativen Werte festgelegt werden. –1 073 741 824 Untergrenze Obergrenze 1 073 741 824 Default  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 193: Ssi
„Nullen“ übertragen werden. Führende „Nullen“ werden erzeugt, indem der Parameter Anzahl Datenbits größer programmiert wird, als dies von der Gesamtmesslänge her nötig wäre.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05...
Page 194: Prüfsumme
Weise bis zu 5 Fehler je Codewort. Zudem lassen sich unterbrochene Takt- oder Datenleitungen im Empfangsgerät erkennen. Als Empfangsgeräte (SSI-Master) dienen TR-eigene Applikations-Module, wie z.B. die Achskassette „AK-41“.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 64 TR-ECE-BA-DGB-0141 v05...
Page 195: Bit Wiederholung
Sonderbits werden nach dem LSB-Positionsbit angehängt. In der Default-Einstellung sind die SSI-Sonderbits auf „ständig 0V“ programmiert und erzeugen, wenn sie zum Tragen kommen, bis zum 26. Takt nachlaufende „Nullen“.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022...
Page 196 1 – 22 – P 2 – P 2 S1 S2 S3 S4 S1 S2 S3 S4 Datenwort 1 Datenwort 2  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 197: Negative Werte
0x0001 0x0001 0x0001 0x0000 0x0000 0x0000 0x0000 0xFFFF 0x8001 0x9999 0x8001 0xFFFE 0x8002 0x9998 0x8002 0xFFFD 0x8003 0x9997 0x8003  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 25 of 64...
Page 198: Position
. Die Überdrehzahl kann als Sonderbits auf der SSI-Schnittstelle ausgegeben werden, siehe Kap.: SSI-Sonderbits. Untergrenze Obergrenze 6000 Default 6000  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 26 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 199: Ssi-Sonderbits
Abwärts gehen gesetzt wird. 5.5.5 Bewegung Das Sonderbit ist gesetzt, solange entweder Aufwärts gehen oder Abwärts gehen gesetzt ist.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 27 of 64...
Page 200: Statischer Und Dynamischer Fehler (Watchdog)
Signalbit von High (1) zu Low (0) oder von Low (0) zu High (1). Selbst Im Fehlerfall toggelt dieses weiter. Beispiel:  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 64 TR-ECE-BA-DGB-0141 v05...
Page 201: Geschwindigkeit
Umdrehungen pro Stunde 5.7 Inkremental (optional) 5.7.1 Anzahl Impulse Festlegung der ausgegebenen Impulse/Umdrehung. Untergrenze Obergrenze 65 536 Default 4096 Programmierbarkeit einschrittig  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 29 of 64...
Page 202: Phase
Länge: 90° • Parameter ”Phase”: Lage: K1 & K2 = 1 K1, voreilend Länge: 180° Lage: K1 = 1  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 203: Set K0
Bei einer Versorgungsspannung von US = 5 V und der Auswahl Versorgungs- spannung ist die Stromaufnahme deutlich erhöht! Dieses Verhalten muss vor allem bei Auswerteeinheiten, welche das Mess-System mitversorgen, beachtet werden.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05...
Page 204: Fehlerursachen Und Abhilfen
Mess-System getauscht werden. Lässt sich der Fehler auch nicht durch mehrmaliges Speicherfehler Quittieren zurücksetzen, muss das Mess-System getauscht werden.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 32 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 205 - 582 - 802 - 1102 _Additional safety instructions _Installation User Manual _Commissioning Interface _Parameterization _Cause of faults and remedies  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 33 of 64...
Page 206 Courier font displays text, which is visible on the display or screen and software menu selections.  < >  indicates keys on your computer keyboard (such as <RETURN>).  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 34 of 64 TR-ECE-BA-DGB-0141 v05...
Page 207 5.3 Position ........................... 58 5.3.1 Position ........................58 5.4 Cams ............................58 5.4.1 Cams on/off ......................58 5.4.2 Overspeed 1/min ..................... 58  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 35 of 64...
Page 208 5.7.3 Zero pulse combination ................... 62 5.7.4 Set K0 ........................63 5.7.5 Signal level ......................63 6 Causes of faults and remedies ...................... 64  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 36 of 64 TR-ECE-BA-DGB-0141 v05...
Page 209: Revision Index
Optional F/B input added (high- and low-active) 03/19/2021 Toggle bit added (chapter 5.5.8) 09/23/2022 - Validity extended by series 362 11/11/2022 - Tree format removed  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 37 of 64...
Page 210: General Information
- Series 362: www.tr-electronic.com/s/S024836 - Series 582: www.tr-electronic.com/s/S021103 - Series 802: www.tr-electronic.com/s/S021104 - Series 1102: www.tr-electronic.com/s/S021105 • optional: -User Manual  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 38 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 211: Abbreviations Used / Terminology
Least Significant Bit Most Significant Bit National Electrical Code Period SSI mono time Pause time Delay time Sign Hexadecimal notation  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 39 of 64...
Page 212: Additional Safety Instructions
Fail-safe usage requires additional measures and requirements. Such measures and requirements must be determined prior to initial commissioning and must be taken and met accordingly.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 40 of 64...
Page 213: Ssi Information
Figure 1: Principle SSI input circuit with opto coupler Figure 2: Principle SSI input circuit RS422 Figure 3: Principle SSI output circuit RS422  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05...
Page 214: Installation / Preparation For Commissioning
● Upon completion of installation, a visual inspection with report should be carried out.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 42 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 215: Rs422 Data Transmission Technology
The receivers still recognize levels of ± 200 mV as valid signal, but this does not apply to an input circuit with opto coupler.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022...
Page 216: Cable Definition
„www.tr-electronic.com/service/downloads/pin-assignments.html”. The number of the pin assignment is noted on the nameplate of the measuring system.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 44 of 64...
Page 217: Connection To The Pc (Programming)
For operation ex Windows 7 the USB PC adapter HID (V5), order no.: 490-00313 with installation guide TR-E-TI-DGB-0103 must be used.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 45 of 64...
Page 218: F/B Input (Optional)
Measuring system position increasing clockwise connected Measuring system position decreasing clockwise with view onto the flange connection, count direction setting (chapter: 5.1.1) = Increasing  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 46 of 64 TR-ECE-BA-DGB-0141 v05...
Page 219: Ssi Interface
Figure 4: Typical SSI - transmission sequences High Clock+ High Data+ High internal Monoflop, can be retriggered Figure 5: SSI transmission format  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 47 of 64...
Page 220: Parameterization Via Trwinprog
/ Revolutions divisor can be a decimal number. The position value output is calculated with a zero point correction, the count direction set and the gearbox parameter entered.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 48 of 64...
Page 221: Total Number Of Steps
Formula for gearbox calculation: Number of revolutions numerator Total number of steps = Number of steps per revolution * Number of revolutions divisor  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05...
Page 222 Measure the mechanical distance covered in mm Read off the actual value of the measuring system from the controller connected  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 50 of 64 TR-ECE-BA-DGB-0141 v05...
Page 223 Number of revolutions divisor 4096 revolutions numerator = 1348.073499 steps / rev. * 1 revolution divisor = 5521709 steps (rounded off)  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 51 of 64...
Page 224: Preset Value
(Complement or Sign + value) for the negative values must be specified. –1 073 741 824 lower limit upper limit 1 073 741 824 default  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 52 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 225: Ssi
"zeros" and without leading "zeros". Leading "zeros" are produced if the parameter Number of data bits is programmed larger, as it would be necessary from the total measuring length.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022...
Page 226: Check Sum
As receive devices (SSI master) serve TR application modules, e.g. the "AK-41" axis cassette.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 54 of 64 TR-ECE-BA-DGB-0141 v05...
Page 227: 26-Bit + Repeat
LSB position bit. In the default setting the SSI special bits are programmed to "Logical 0V" and produce, if they can be output, added "zeros" up to the 26. clock.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022...
Page 228 – P 2 – P 2 S1 S2 S3 S4 S1 S2 S3 S4 Data word 1 Data word 2  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 56 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 229: Negative Values
0x0001 0x0001 0x0001 0x0000 0x0000 0x0000 0x0000 0xFFFF 0x8001 0x9999 0x8001 0xFFFE 0x8002 0x9998 0x8002 0xFFFD 0x8003 0x9997 0x8003  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 57 of 64...
Page 230: Position
. The speed monitor can be output in the form of special bits on the SSI interface, see chapter “SSI special bit”. lower limit upper limit 6000 default 6000  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 58 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 231: Ssi Special Bit
The special bit is set when Going up is set and it is deleted when Going down is set. 5.5.5 Moving The special bit is set while either Going up or Going down is set.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05...
Page 232: Encoder And Dynamic Error (Watchdog)
(toggles) from High (1) to Low (0) or from Low (0) to High (1). Even if an error occurred, this bit continues to toggle. Example:  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 60 of 64...
Page 233: Speed
The parameter defines the output pulses per revolution. Lower limit Upper limit 65 536 Default 4096 Programmability 1 Step  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05 Page 61 of 64...
Page 234: Phase
• Parameter ”Phase”: Length: 90° Position: K1 & K2 = 1 K1, leading signal Length: 180° Position: K1 = 1  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 62 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 235: Set K0
This behavior must be taken into account in the case of evaluation units which also supply the measuring system.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 11/11/2022 TR-ECE-BA-DGB-0141 v05...
Page 236: Causes Of Faults And Remedies
- Satellite scanning error system must be replaced. If the error cannot be reset, the measuring system must Memory error be replaced.  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 64 of 64 TR-ECE-BA-DGB-0141 v05 11/11/2022...
Page 237 Elektro- und Elektronikgeräten (RoHS) 2011/65/EU (L 174/88) Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) in alleiniger Verantwortung von / under the sole responsibility of: TR-Electronic GmbH Eglishalde 6 D - 78647 Trossingen Tel.: 07425/228-0...
Page 238 Gültigkeitsliste / List of validity Baugröße / Size: 20 Order No.: 240-xxxxx Type: IH20 Baugröße / Size: 22 Order No.: CMV22x-xxxxx, CMV22x-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CMV22, CMW22 Baugröße / Size: 24 Order No.: 209-xxxxx Type: IEV24, IES24 Baugröße / Size: 36 Order No.: Cxx36x-xxxxx, 0000-xxxxx Type: CEV36, CES36, COV36, COS36, CDV36, CDF36, CMV36, CMS36, CMF36...
Page 239 Baugröße / Size: 58 Order No.: Cxx58x-xxxxx, 0042-xxxxx, 0062-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CEV58, CES58, CEH58, CEK58, CEW58, CDV58, CDS58, CDH58, CDK58, CDW58, CMV58, CMS58, CMH58, CMK58, CMW58, COV58, COS58, COH58, COK58, COW58, CPV58, CPS58, CPH58, CPK58, CPW58 Order No.: Cxx582x-xxxxx, 0062-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CMV582, CMS582, CMK582, CMW582, CEV582, CES582, CEH582, CEK582, CEW582, COV582, COS582, COH582, COK582, COW582,...
Page 240 Baugröße / Size: 62 Order No.: IEV62-xxxxx Type: IEV62 Baugröße / Size: 65 Order No.: 110-xxxxx, 111-xxxxx, 113-xxxxx, 114-xxxxx, 121-xxxxx, 122-xxxxx, 0062-xxxxx, 0002-xxxxx, 0022-xxxxx Type: CE65, CK65, CS65 Order No.: Cxx65x-xxxxx, 0062-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CEV65, CES65, CEH65, CEK65, CEW65, CDV65, CDS65, CDH65, CDK65, CDW65, CMV65, CMS65, CMH65, CMK65, CMW65, COV65, COS65, COH65, COK65, COW65, CXV65, CXS65, CXH65, CXK65, CXW65 Order No.: 6500-xxxxx, 6502-xxxxx, 6520-xxxxx, 6522-xxxxx, 6540-xxxxx, 6542-xxxxx,...
Page 241 Baugröße / Size: 80, 81 Order No.: CEH80x-xxxxx, COH80x-xxxxx Type: CEH80, COH80 Order No.: CES80x-xxxxx, COS80x-xxxxx Type: CES80, COS80 Order No.: CEH802x-xxxxx, COH802x-xxxxx Type: CEH802, COH802 Order No.: CES802x-xxxxx, COS802x-xxxxx Type: CES802, COS802 Order No.: IEH80-xxxxx Type: IEH80 Order No.: 260-xxxxx, 261-xxxxx Type: ZH80, ZH81 Order No.: Qxx8xx-xxxxx...
Page 242 Order No.: CEx100x-xxxxx Type: CEV100, CES100, CEH100 Order No.: 201-xxxxx, 202-xxxxx Type: HE100 Order No.: HEx100x-xxxxx Type: HEV100, HES100, HEH100 Order No.: 172-xxxxx, 173-xxxxx Type: ZE100, ZE115 Order No.: 235-xxxxx Type: IE100, IE101 Order No.: IEx100-xxxxx Type: IEV100, IES100, IEH100 Baugröße / Size: 110 Order No.: CEH110x-xxxxx, COH110x-xxxxx Type:...
Page 243 The Restriction of the Use of Certain Hazardous Substances in S.I. 2012 No. 3032 Electrical and Electronic Equipment Regulations 2012 under the sole responsibility of the manufacturer: Name and address of authorised representative: TR-Electronic GmbH TR-Electronic Ltd. Eglishalde 6 4 William House D - 78647 Trossingen Old St.
Page 244 List of validity Size: 20 Order No.: 240-xxxxx Type: IH20 Size: 22 Order No.: CMV22x-xxxxx, CMV22x-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CMV22, CMW22 Size: 24 Order No.: 209-xxxxx Type: IEV24, IES24 Size: 36 Order No.: Cxx36x-xxxxx, 0000-xxxxx Type: CEV36, CES36, COV36, COS36, CDV36, CDF36, CMV36, CMS36, CMF36 Order No.: Ixx36x-xxxxx Type: IMV36, IMS36, IMF36...
Page 245 Size: 58 Order No.: Cxx58x-xxxxx, 0042-xxxxx, 0062-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CEV58, CES58, CEH58, CEK58, CEW58, CDV58, CDS58, CDH58, CDK58, CDW58, CMV58, CMS58, CMH58, CMK58, CMW58, COV58, COS58, COH58, COK58, COW58, CPV58, CPS58, CPH58, CPK58, CPW58 Order No.: Cxx582x-xxxxx, 0062-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CMV582, CMS582, CMK582, CMW582, CEV582, CES582, CEH582, CEK582, CEW582, COV582, COS582, COH582, COK582, COW582,...
Page 246 Size: 62 Order No.: IEV62-xxxxx Type: IEV62 Size: 65 Order No.: 110-xxxxx, 111-xxxxx, 113-xxxxx, 114-xxxxx, 121-xxxxx, 122-xxxxx 0062-xxxxx, 0002-xxxxx, 0022-xxxxx Type: CE65, CK65, CS65 Order No.: Cxx65x-xxxxx, 0062-xxxxx, 0000-xxxxx, 0002-xxxxx Type: CEV65, CES65, CEH65, CEK65, CEW65, CDV65, CDS65, CDH65, CDK65, CDW65, CMV65, CMS65, CMH65, CMK65, CMW65, COV65, COS65, COH65, COK65, COW65, CXV65, CXS65, CXH65, CXK65, CXW65 Order No.: 6500-xxxxx, 6502-xxxxx, 6520-xxxxx, 6522-xxxxx, 6540-xxxxx, 6542-xxxxx,...
Page 247 Size: 80, 81 Order No.: CEH80x-xxxxx, COH80x-xxxxx Type: CEH80, COH80 Order No.: CES80x-xxxxx, COS80x-xxxxx Type: CES80, COS80 Order No.: CEH802x-xxxxx, COH802x-xxxxx Type: CEH802, COH802 Order No.: CES802x-xxxxx, COS802x-xxxxx Type: CES802, COS802 Order No.: IEH80-xxxxx Type: IEH80 Order No.: 260-xxxxx, 261-xxxxx Type: ZH80, ZH81 Order No.: Qxx8xx-xxxxx...
Page 248 Order No.: CEx100x-xxxxx Type: CEV100, CES100, CEH100 Order No.: 201-xxxxx, 202-xxxxx Type: HE100 Order No.: HEx100x-xxxxx Type: HEV100, HES100, HEH100 Order No.: 172-xxxxx, 173-xxxxx Type: ZE100, ZE115 Order No.: 235-xxxxx Type: IE100, IE101 Order No.: IEx100-xxxxx Type: IEV100, IES100, IEH100 Size: 110 Order No.: CEH110x-xxxxx, COH110x-xxxxx Type:...
Page 249 KABELLAENGE 10,000 m FLANSCHART ZB36 15 DICK WELLENVARIANTE VOLLWELLE WELLENAUSFUEHRUNG D10 L19,5 FLÄCHE ARBEITSTEMPERATUR -20°C… +75°C SCHUTZART IP67 MTTFd [y] (T=45°C, DC=0) >= Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 1/5 info@tr-electronic.de www.tr-electronic.de...
Page 250 - SSI-Monozeit, typisch 20 µs - Ausgabecode Binär, Gray, Gray gekappt - Anzahl Datenbits 1…64 - Parametrisierungsart programmierbar Inkremental - Schnittstelle - Ausstattung Optionale Schnittstelle Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 2/5 info@tr-electronic.de www.tr-electronic.de...
Page 251 Maximal Drehzahl, mechanisch <= 12000 1/min Wellenbelastung, axial/radial <= 50 N, <= 100 N Lagerlebensdauer >= 3,9E+10 Umdrehungen Lagerlebensdauer - Beiwerte - Drehzahl 6000 1/min Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 3/5 info@tr-electronic.de www.tr-electronic.de...
Page 252 98 %, keine Betauung Schutzart - Standard IP65 - Optional erweitert auf IP67 Beständigkeit - gegen Salz (Seewasser) DIN EN IEC 60068-2-52 - Prüfverfahren Prüfverfahren 1 Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 4/5 info@tr-electronic.de www.tr-electronic.de...
Page 253 CEV582M*8192/4096 SSI 36ZB10FL Bestellnr.: CEV582M-00210 11.7.2023 / 010102058202010201 IP67 Umgebungsbedingungen Fortsetzung - ausgenommen sind Anbauteile Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 5/5 info@tr-electronic.de www.tr-electronic.de...
Page 254 Maße in mm Maßstab 1 : 1 DIN A3 [Tolerancing] [all dimensions in mm] [Scale] Artikel-Nr. und Steckerbelegung: siehe Datenblatt E-Mail: info@tr-electronic.de CAD: STEP Support: http://tr-e.info/01 [Article-No. and pin assignment: see data sheet] Bezeichnung Datum Name [Designation] CEV-582-M, 36er Zentr.

This manual is also suitable for:

582 series 802 series 1102 series C-58 ssi series C-80 ssi series C-110 ssi series ... Show all

TR-Electronic 362 Series Assembly Instructions Manual

Deutsch

English

Available languages

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TR-Electronic 362 Series

Summary of Contents for TR-Electronic 362 Series

This manual is also suitable for:

Table of Contents
