TR-Electronic C 65 Series User Manual

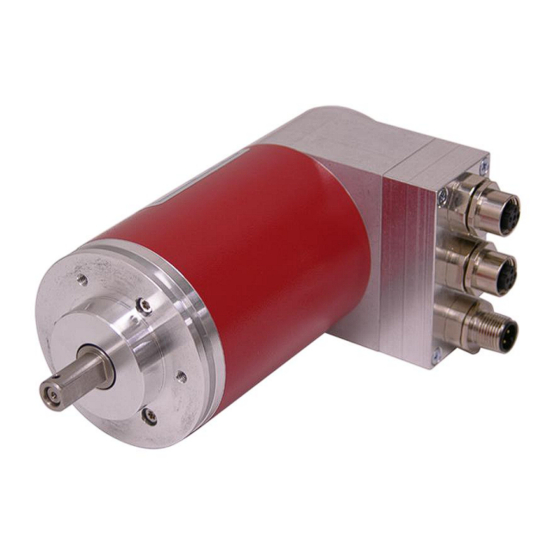

Rotary encoder
Hide thumbs Also See for C 65 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Gesamtbedienungsanleitung
Für
CEV65M*4096/4096
EPN(ALTR.CEV582M-20063)
Material Nr.
CEV65M-10323
Generiert am
19.08.2023
Enthält Originalbedienungsanleitung
Dokumentationsabschnitte
Montageanleitung de/en 65er Montageanleitung
Betriebsanleitung
de/en C__-65/C__-58, PROFINET IO Schnittstelle
Technische Info
de/en Zubehör/Leitung: Ethernet/M12-Versorgung
Konformitätserklärung de/en EU-Konformitätserklärung ECE (EMV+RoHS)
Konformitätserklärung de/en UKCA, Konformitätserkl. ECE (EMV+RoHS)
Technische Daten
Seite 1/1
TR-ECE-BA-DGB-0046-06.pdf
TR-ECE-BA-DGB-0063-15.pdf
TR-E-TI-DGB-0173-02_Zubehoer-Leitungen-E
TR-ECE-KE-DGB-0374-05.pdf
TR-ECE-KE-GB-0375-05.pdf
Änderungen vorbehalten.
TR-Electronic GmbH
Eglishalde 6
78647 Trossingen
Tel. +49 (0) 7425 228-0
info@tr-electronic.de
www.tr-electronic.de
