Introduction

Feature

Lifting capacity:
Lifting height:
Lifting speed:
Motor output:
Brake:
Control:

Unpacking

．Winch assembly
．Wire rope 4 mm x 24 m with weight hook CHW-0031
．Pendant switch CPB-413 w/cord 1.25 mm
．Power lead 1.5 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
80 kg wire rope top layer
23 m
16 – 25 m/min
0.3kw x 6A at 110V; 0.3kw x 3A at 220-240V
Dynamic and mechanical brakes hold full load
Pendant switch powers the winch
2
x 3C x 3 m and plug

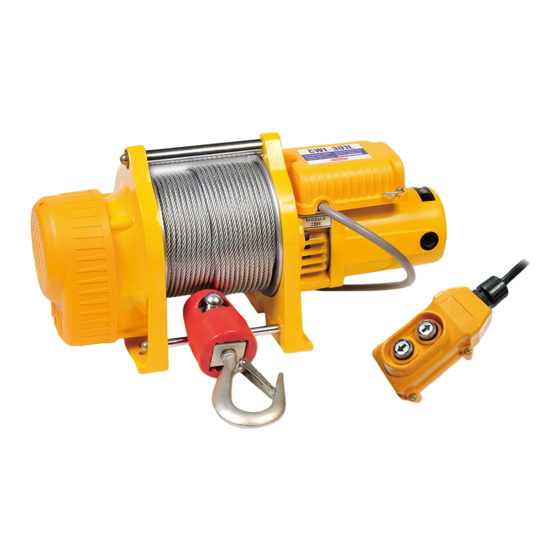

Compact Winch
CWL-80
Model:
2
x 6C x 3 m
PN: 374996 110V
374999 220V
1pc
1pc
1pc
1pc
