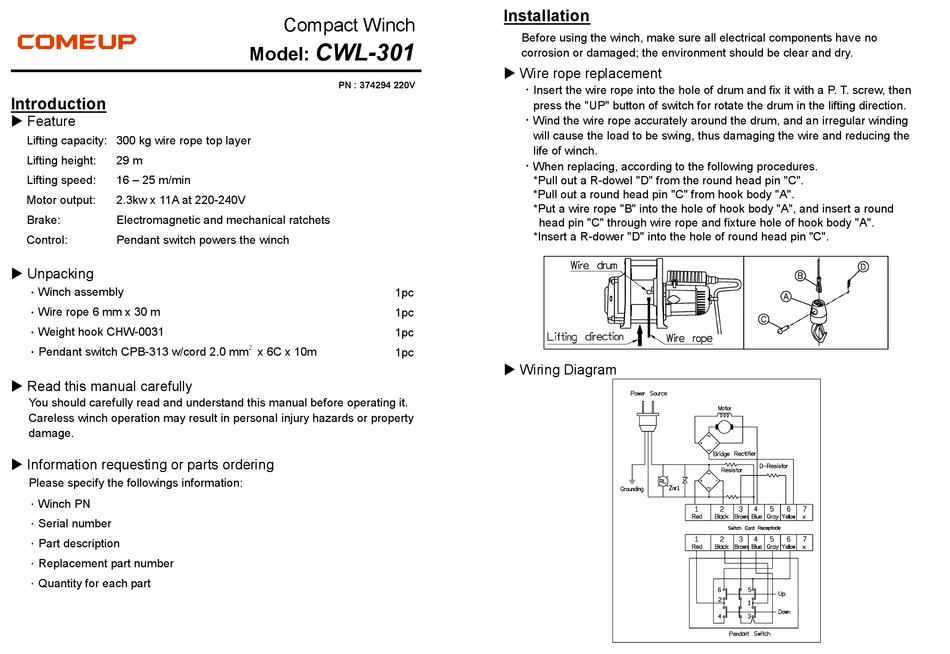

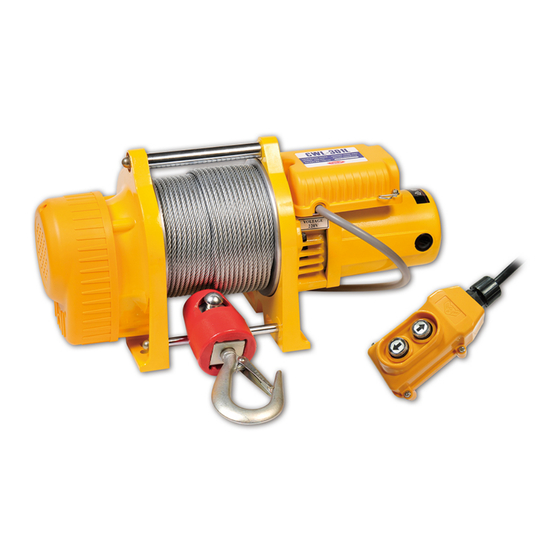

Comeup CWL-301 Quick Start Manual

Introduction
 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 29 m
Lifting speed: 16 – 25 m/min
Motor output: 2.3kw x 11A at 220-240V
Brake: Electromagnetic and mechanical ratchets
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m
．Weight hook CHW-0031
．Pendant switch CPB-313 w/cord 2.0 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Compact Winch
CWL-301
Model:
PN : 374294 220V
1pc
1pc
1pc
2
x 6C x 10m
1pc
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Wire rope replacement
． Insert the wire rope into the hole of drum and fix it with a P. T. screw, then
press the "UP" button of switch for rotate the drum in the lifting direction.
． Wind the wire rope accurately around the drum, and an irregular winding
will cause the load to be swing, thus damaging the wire and reducing the
life of winch.
． When replacing, according to the following procedures.
*Pull out a R-dowel "D" from the round head pin "C".
*Pull out a round head pin "C" from hook body "A".
*Put a wire rope "B" into the hole of hook body "A", and insert a round
head pin "C" through wire rope and fixture hole of hook body "A".
*Insert a R-dower "D" into the hole of round head pin "C".
 Wiring Diagram
