protech prox SP-6558-R Quick Reference Manual

SP-6558-R/
SP-6550-R
Quick
Reference
Guide

Jumper Setting

USB Power
Source Selection
1
S5 USBPWR: OFF
1
S5 USBPWR: ON
COM3/4 Pin9 RI/5V/12V
6 5
6 5
2 2 1
2 1
RI
12V
(default)
LVDS Backlight
Control Selection
1
3.3V
(default)
Clear CMOS Data
1
1
Normal
Clear
CMOS
(default)
LVDS VCC Voltage
1
3.3V
(default)
All Rights Reserved. Copyright 2021
(default)
JP_COM4
COM4
5
6
1 COM3
2
JDIO1
5V
COM2
COM1
1
JFP1
PWR2
1

Specifications

System
CPU Type
Memory Support
API
Storage Support
Power
Operating System
Power Adaptor
Expansion Slots
Dimensions / Weight
Mounting Support
Certificate
I/O Ports (Top side)
USB
Serial Ports
GPIO
Antenna Holes
LAN
I/O Ports (Bottom side)
Display
USB / Sound
LAN
Power Input
Power On / Off
LED
Environment
Operating Temp.
Ver. Q1
Storage Temp.
Humidity
CAUTION! Danger of explosion may occur if the battery is replaced incorrectly. Replace batteries only with
the same or equivalent type recommended by the manufacturer. Dispose the used batteries according to the
manufacturer's instructions.
VGA1
LAN2 LAN1
JP_COM3
JLPC1
JMCU1
M_SATA1
M_PCIE1
JP7
JP4
LVDS1
JBAT1
FAN1 JINV1

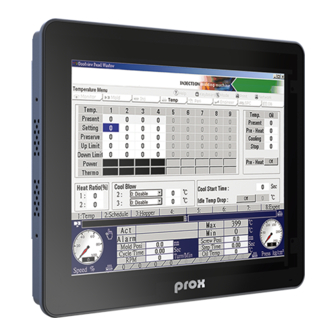

SP-6558-R / SP-6550-R
® ®
Intel Celeron J3455: 10w, 4C, 2.3GHz
® ®
Intel Celeron N3350: 6w, 2C, 2.4GHz
1 x DDR3L 1600/1867MHz SO-DIMM socket (up to 8GB)
Hardware monitor / WatchDog
1 x 2.5" 7mm SATAIII HDD / SSD drive space
Supports DC 12V, 19V and 24V power input
Windows 10 64bit / Ubuntu 17.04 64bit (kernel: 4.4)
Adapter w/ lockable 3-pin terminal block (optional)
1 x full-sized mPCIe slot (with PCIe and USB signals)
1 x full-sized mSATA slot (with SATA and USB signals)
SP-6558-R: 224.83 x 176.83 x 75.6mm (WxHxD) / 2.5kg
SP-6550-R: 259.63 x 216.03 x 73.2mm (WxHxD) / 3kg
Wall Mount / VESA 75 / Panel Mount
FCC/CE
Normal SKU: 2 x USB 2.0 (option) / PoE SKU: N/A
COM2: RS-232/422/485 selectable by BIOS(Default: RS-232)
COM3&4: RS-232 w/ RI/5V/12V selectable by jumper
Normal SKU: COM2~4
PoE SKU: COM3~4 & COM2 or DIO (Default: COM2)
Normal SKU: 1 (option, independent)
PoE SKU: 1 (option, choose either COM2 or DIO)
Normal SKU: 4 x antenna holes for reservation
PoE SKU: 2 x antenna holes for reservation
Normal SKU: N/A / PoE SKU: 2 x PoE LAN or 2 x GbE LAN
1 x HDMI1.4a, resolution: up to 4096x2160 @60Hz
4 x USB 3.0 / Line Out
2 x GbE LAN (support Wake-on-LAN) / LAN1 & 2: Intel
3-pin DC In terminal block (lockable)
1 x Power Button & 1 x Extended Power Switch
1 x Power LED
SSD: 0°C~45°C (32°F~113°F) / HDD: 0°C~40°C (32°F~104°F)
-30°C ~60°C (-22°F~140°F)
20% ~ 90%
SP-6558-R / SP-6550-R
HDMI1 USB2 USB1
JP_USBSW1
SATA_PWR1
SO_DIMM1
AUDIO1
SW1
JP3
USB3
JP9
JP_VDD1 SATA1
(Default: RI)
®
I210AT
JI2C1
