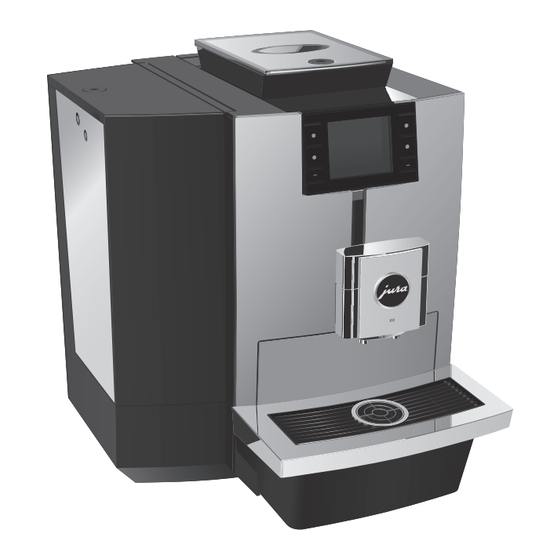

X10
(EA/SA/INTA)
Instructions for Use
Original instructions for use
Before using the machine read the instructions for use.
JURA Type 777

Advertisement

Table of Contents
loading

Summary of Contents for Jura X10

  • Page 1 (EA/SA/INTA) Instructions for Use Original instructions for use Before using the machine read the instructions for use. JURA Type 777...
  • Page 2: Table Of Contents

    Setting up the machine ������������������������������������������������������������������������������������������� Filling the bean container ����������������������������������������������������������������������������������������� Determining the water hardness �������������������������������������������������������������������������������� First-time use ��������������������������������������������������������������������������������������������������������� Managing your X10 – the JURA Cockpit ����������������������������������������������������������������������� Connecting milk ����������������������������������������������������������������������������������������������������� 4 Preparation ���������������������������������������������������������������������������������������������������������� Preparation with preselection (Speciality Selection) �������������������������������������������������������� Espresso and coffee ������������������������������������������������������������������������������������������������...
  • Page 3 Cleaning the bean container ������������������������������������������������������������������������������������ 8 Display messages ������������������������������������������������������������������������������������������������� 9 Troubleshooting ��������������������������������������������������������������������������������������������������� 10 Transport and environmentally friendly disposal ������������������������������������������������������� Transport / Emptying the system ������������������������������������������������������������������������������ Disposal �������������������������������������������������������������������������������������������������������������� 11 Technical data ������������������������������������������������������������������������������������������������������ 12 Index ����������������������������������������������������������������������������������������������������������������� 13 JURA contact details / Legal information �����������������������������������������������������������������...
  • Page 4: Control Elements

    1 Control elements 1 Control elements...
  • Page 5 Filler funnel for cleaning tablet Grinder adjustment wheel Cover Spanner for aroma preservation cover, water tank cover and grinder adjustment wheel Container for milk system cleaning Service socket for optionally available JURA Wi-Fi Connect / Payment Connect / MDB Connect...
  • Page 6: For Your Safety

    2 For your safety 2 For your safety Comply with the Before using the machine, read these instructions instructions for use for use thoroughly and completely and comply with the instructions they contain� Keep these instructions for use close to the machine and pass them on to the next user�...
  • Page 7: Use By Children

    This could result in fatal electric shock. In the event of signs of damage, disconnect the machine from the mains� To do this, first switch the X10 off with the On/Off button Q � Only then should you remove the mains plug from the power socket�...
  • Page 8: Preventing Damage

    Preventing damage To avoid damage to the machine and the mains cable: Do not use the X10 and the mains cable near hot surfaces� Do not allow the mains cable to rub against sharp edges and ensure that it does not become trapped�...
  • Page 9: Danger Of Electric Shock

    Do not put the X10 or any individual parts in the dishwasher� Before cleaning, switch the X10 off with the On/ Off button Q � Always wipe the X10 with a damp cloth rather than a wet one, and protect it from prolonged exposure to water splash� The X10 must not be cleaned with a jet of water�...
  • Page 10: Preparing And Using For The First Time

      Choose a spot for your X10 which protects the machine against overheating� Ensure that the ventilation slots are not covered�   Place the X10 on a horizontal surface that is not sensitive to water (minimum height of 80 cm)� Filling the bean container The aroma preservation cover of the bean container is lockable (spanner supplied as standard)�...
  • Page 11: First-Time Use

      For machines with a plug-in mains cable: Connect the mains cable to the machine�   Insert the mains plug into a power socket�   Press the On/Off button Q to switch the X10 on� ‘Sprachauswahl’ ‘Deutsch’   Press the button until the desired language is displayed, e�g�...
  • Page 12: Managing Your X10 - The Jura Cockpit

      Connect the milk pipe to the dual spout� E The milk system of your X10 has a connector HP3 and an interchangeable milk spout CX2.   Connect the other end of the milk pipe to a milk container or a...
  • Page 13: Preparation

    Stop preparation Press the ‘X’ button E Coffee tastes best served hot� A cold porcelain cup cools the beverage – and impairs the taste� We therefore recommend prewarming the cups� You can purchase a JURA cup warmer from your specialised dealer�...
  • Page 14: Preparation With Preselection (Speciality Selection)

    E If you press and hold your preselection (for 2 seconds), the preselection will be active until you switch off your X10� Espresso and coffee Example: Coffee   Place a cup under the dual spout�...
  • Page 15: Latte Macchiato, Cappuccino And Other Speciality Coffees With Milk

    Americano and lungo For the americano and lungo, the X10 blends the coffee with hot water using a special preparation method� This results in a full- bodied speciality coffee which is particularly easy to digest� You can change the amount of this additional water (see chapter 4 ‘Prepara-...
  • Page 16: Hot Water

    4 Preparation Hot water CAUTION There is a danger of scalding from hot water splashes�   Avoid direct contact with the skin�   Place a cup under the dual spout�   Press the ‘Hot water’ button (on page ä ä ö)� The preset amount of water flows into the cup� Adjusting the grinder You can adjust the grinder to suit the degree of roast of your coffee�...
  • Page 17: Daily Operation

      Place a receptacle under the dual spout�   Press the On/Off button Q� ‘Machine is rinsing’ Your X10 is switched on or off� E When the machine is switched off, the system is only rinsed if a speciality coffee has been prepared�...
  • Page 18: Maintenance Actions

    5 Daily operation Maintenance actions Optimal coffee quality depends on many factors� One important prerequisite is regular maintenance of your X10� Carry out the fol- lowing steps: Maintenance action Daily Note necessary Empty the drip tray and coffee Always empty the coffee grounds...
  • Page 19: Machine Settings

    6 Machine settings 6 Machine settings Press the button for approx. 2 seconds to enter the JURA Cockpit� The following settings can be saved in ‘Machine Settings’ f: Programme item Explanation Page ö ä ä ä ‘Switch off after’ Set the automatic switch-off time to save energy (switch-off after 15 minutes, 30 minutes or 1 –...
  • Page 20: Maintenance

    Once the filter cartridge stops working (depending on the water hardness setting), the X10 will prompt you to change the filter� E Your X10 no longer has to be descaled if you are using the CLARIS Pro Smart filter cartridge�...
  • Page 21: Cleaning The Milk System

    If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water�   Use only original JURA maintenance products� E JURA milk system cleaner is available from specialised dealers� E Use the container supplied for milk system cleaning�...
  • Page 22: Dismantling And Rinsing The Dual Spout

      Rinse all the parts under running water� If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml water and one dosing unit of JURA milk system cleaner� Then rinse the individual parts thoroughly�...
  • Page 23: Cleaning The Machine

      Fit the cover of the dual spout�   Connect the milk pipe to the dual spout� Cleaning the machine After 180 preparations or 80 switch-on rinses, the X10 will prompt you to clean it� CAUTION If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water�...
  • Page 24: Descaling The Machine

      Empty the drip tray and coffee grounds container and put them back into the machine� Descaling the machine The X10 builds up deposits of limescale over time and automatically prompts you to descale it when necessary (unless you are using a CLARIS filter cartridge Pro Smart )�...
  • Page 25 If the descaling agent comes into contact with sensitive surfaces (e�g� marble), damage cannot be ruled out�   Clean up any splashes immediately� E The descaling programme lasts approximately 40 minutes� E JURA descaling tablets are available from specialised dealers� Precondition: ‘Descale’ is displayed in the Cockpit�   Press the button for approx.
  • Page 26: Descaling The Water Tank

      Remove the water tank�   If you use a CLARIS Pro Smart filter cartridge, remove this�   Completely fill the water tank and dissolve 3 JURA descaling tab- lets in it�   Leave the water tank with the descaling solution for several hours (e�g�...
  • Page 27: Display Messages

    (see chapter 7 ‘Maintenance – lights up red� Inserting/changing the filter’)� ‘Filter’ ‘Clean’ The X10 is prompting you to Perform cleaning (see chapter 7 clean it� ‘Maintenance – Cleaning the machine’)� ‘Descale’ The X10 is prompting you to Perform descaling (see chapter 7 descale it�...
  • Page 28: Troubleshooting

    Grinder is making a There are foreign objects Contact customer support in your very loud noise� in the grinder� country (see chapter 13 ‘JURA contact details / Legal information’)� ‘ERROR 2’ ‘ERROR 5’ If the machine has been Warm the machine at room tempera- is displayed�...
  • Page 29 Contact customer support in your messages are country (see chapter 13 ‘JURA contact displayed� details / Legal information’)� E If you were unable to solve the problem, contact customer support in your country (see chapter 13 ‘JURA contact details / Legal information’)�...
  • Page 30: Transport And Environmentally Friendly Disposal

    10 Transport and environmentally friendly disposal 10 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your X10� It should be used to protect the system machine during transport� In order to protect the X10 from frost during transport, the system must be emptied�...
  • Page 31: Technical Data

    CLARIS filter cartridge Pro Smart (RFID technology) Frequency band 13�56 MHz Max� transmission power < 1 mW JURA Wi-Fi Connect (Wi-Fi connection) Frequency band 2�4 GHz Max� transmission power < 100 mW JURA type Information for testers (repeat test in accordance with DIN VDE 0701-0702): The central grounding point (CGP) is located on the back of the machine, right next to the mains cable's connection point�...
  • Page 32 12 Index 12 Index Addresses 36 Damage Adjusting the product settings 16 Preventing damage 8 Americano 15 What to do in the event of damage 7 Aroma preservation cover Declaration of Conformity 36 Bean container with aroma preservation Descaling cover 5 Machine 24 Water tank 26 Display 5...
  • Page 33 12 Index Product settings Adjusting 16 Insert for drip tray 5 Proper use 6 Interchangeable milk spout 31 RFID 31 JURA Rinsing Contact details 36 Machine 20 Latte macchiato 15 Safety information 6 Lungo 15 Setting up Setting up the machine 10...
  • Page 36 2014/30/EU – Electromagnetic Compatibility 2009/125/EC – Ecodesign Directive 2011/65/EU – RoHS Directive 2014/53/EU – Wireless Voltage Directive A detailed EU Declaration of Conformity for your X10 can be found at jura.com/conformity. Technical changes We reserve the right to make technical changes� The diagrams used in these instructions for use are for illustration purposes only and do not represent the original colours of the machine�...
