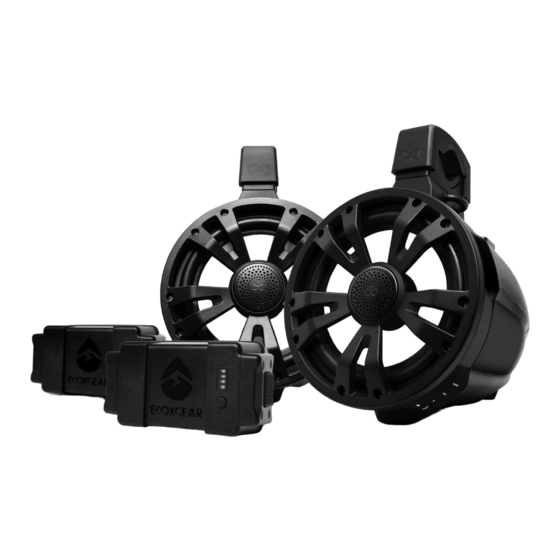

- Page 1 ExtremeTower TBB8 8 inch Tower Speakers No Wire Install Models: SEI-ETAMPBAT7700...20 Installation Guide Bluetooth Amplified Tower Speakers Batteries...
- Page 2 Important · Please read the Hardware Guide, this Installation Guide, and the User Guide before installation and use. · These speakers include two rechargeable Battery Packs. As such, the speakers can be installed without any wires. You also have the option to power the speakers by connecting them to a 12V Power Supply.
-
Page 3: Product Warranty
Important · When mounting the speaker, it is extremely important to make sure that the mount is secure and will not cause any potential issues. Please check that the speaker does NOT block the driver’s view or prevents the safe operation of your boat or other vehicle. Ensure that all screws are tightened and the speaker is secured correctly so that the speaker will NOT fall. - Page 4 ExtremeTower Overview ExtremeTower Speaker Layout Tweeter Party Lights Speaker Battery Pack Switches...
- Page 5 ExtremeTower Overview Rotating 360° Top Mount Mount Clamp Clamp Bottom Mount Base-Mount Clamp U-Shaped Pin Quick-Release Knob Control Buttons Waterproof Back Cover Back Cover Latch Dome Light Release Button...
- Page 6 ExtremeTower Overview Audio, LED Control Signals, and Power Connectors and Cables Power, Audio, and LED Lighting Connections The Amplified ExtremeTower Speaker has a 9-pin connector, but only 3 pins are used. Power + 12V DC Ground Remote Turn-On · 3 Input Wires: 12V (+), GND (-), and Remote Turn-On to connect to your vehicle.
- Page 7 ExtremeTower Overview Speaker Connector Jacks Each speaker has 2 types of Connector Jacks. 9-Pin Aviation Connector Jack 6-Pin Deutsch Connector Jack 4-Pin Deutsch Connector Jack 1. A round Aviation Connector Jack is inside the speaker Base- Mount, which allows the cable to pass through the Bottom Mount Clamp and go into a hole in the crossbar at the location where the speaker is mounted.
- Page 8 ExtremeTower Overview vehicle’s battery using the 4-pin Deutsch connector, you will need to remove the installed, large, rubber cap, then locate the smaller cap in the package that only covers the 6-pin jack. Insert it into the 6-pin jack so it doesn’t get damaged by dirt or water. FM Dipole Antenna Jack FM Dipole Antenna Jack...
- Page 9 ExtremeTower Overview INT EXT 3. Open the Back Cover (refer to Install the Rechargeable Battery Pack to the Amplified Speaker for details), move the (Blue) FM ANT Switch to the EXT position. Cables Your package includes 2 Cable Sets for each wiring option. These cables are optional: 9-Pin Aviation 3 Bare Wires (Input)
- Page 10 ExtremeTower Overview 2. Deutsch Cable Set —Suggested wiring method if you want to utilize the Quick-Release-Mount option. The Deutsch Cable connection between a 12V power supply and each Amplified ExtremeTower Speaker uses the following cable: 4-Pin Deutsch Power Inputs: 12V (+), GND (-), Connector and Remote Turn-On “Deutsch A1”...
- Page 11 Installation and Wiring Installation and Wiring Procedure 1: Round Aviation Cable If you choose to use the Aviation Cable Set for wiring your ExtremeTower Speakers, follow the steps below. Speaker Power Wiring (Optional) The Aviation Cable will pass through the Bottom Mount Clamp and go into a hole in the crossbar;...
- Page 12 Installation and Wiring Mount the Speaker to the Crossbar 1. Base-Mount: Remove the tape and pull out a small plastic bag from the Base-Mount. This bag has one Aviation Connector Jack Cap. You don’t need this cap for this installation, but save the cap for later use in case you change the wiring methods.
- Page 13 Installation and Wiring 4. Connect the (9-pin round) Aviation Connector to the Aviation Connector Jack on the speaker. Tighten the connector clockwise with a long nose plier (not included) or similar tool. IMPORTANT: Tighten the connector to ensure the connection is waterproof to avoid potential water or moisture penetration into the jack connector pins, causing damage to the speaker.
- Page 14 Installation and Wiring M5 Allen wrench (or with your hand if utilizing the Quick-Release Knob). Note: It is NOT recommended to use the Quick-Release Knob with this wiring method. Do NOT tighten the screw yet. Bolts Washers and Spring Washers Top Clamp Rubber Insert 9.
- Page 15 Installation and Wiring No Wire Installation and Wiring Procedure 2: Square Deutsch Cable This cable installation method does NOT require that the cables go through the mount. This method allows for the speakers to be mounted to the crossbar before running the wires and before completing the cable connections.
- Page 16 Installation and Wiring · The Deutsch Connector Jacks include an installed 4-pin/6-pin Rubber Plug to prevent potential water or moisture penetration into the jack. If you choose NOT to use the Deutsch Cables to connect the Amplified ExtremeTower Speakers to your vehicle’s battery, you MUST seal the Deutsch Connector Jacks with the Rubber Plug.
- Page 17 Installation and Wiring U-Shaped Pin Quick-Release Knob 4. Insert the U-Shaped Pin into the two holes on the side of the Base-Mount. Insert the pins into the holes on the left side of the Mount when viewing from the rear of the speaker. 5.
- Page 18 Installation and Wiring Bolts Washers and Spring Washers Top Clamp Rubber Insert 6. Put the Upper Rubber Insert on the Top Clamp. Align the rubber groove with the bulge of the Top Clamp and press down to assemble the Clamp and Rubber Insert. 7.
- Page 19 Installation and Wiring Speaker Power Wiring (Optional) 1. Run the (“Deutsch A1” 4-pin) Deutsch Power Cable to the location where your vehicle’s power and ignition signal terminal are located, but do NOT connect the power cable to the 12V vehicle battery and ignition signal terminal yet.
- Page 20 Installation and Wiring Connecting Your Speaker to a +12V Power Supply (Optional) and Powering On Black Cable Red Cable Remote Turn-On Extension Cable 1. Once you complete one of the Installation Procedures, you can connect the 3 wires (+12V, GND, and Remote Turn-On) on the Power Cables (or Extension Cables, if needed) to the vehicle’s battery and ignition signal terminal.
- Page 21 Installation and Wiring Install the Rechargeable Battery Packs on the Amplified Speakers IMPORTANT: If you connect the vehicle’s battery and ignition switch signal to the Amplified ExtremeTower Speakers, please turn on the speakers and check if they work fine first, then install the Battery Packs. 1.
- Page 22 Installation and Wiring 4. Place the Cover back on the speaker and turn clockwise until the latch is locked. IMPORTANT: When you put Cover back, make sure the Cover is closed properly. If not closed properly, the Cover is NOT sealed and water and moisture may penetrate into the battery connection area, causing damage.
- Page 23 Next, read your User Guide to explore more features and functions for your ExtremeTower Speakers...
