EcoExtreme 2
Models: GDI-EX3W210...220
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoExtreme 2 and is the answer not in the manual?

Questions and answers

Related Manuals for EcoxGear EcoExtreme 2

Summary of Contents for EcoxGear EcoExtreme 2

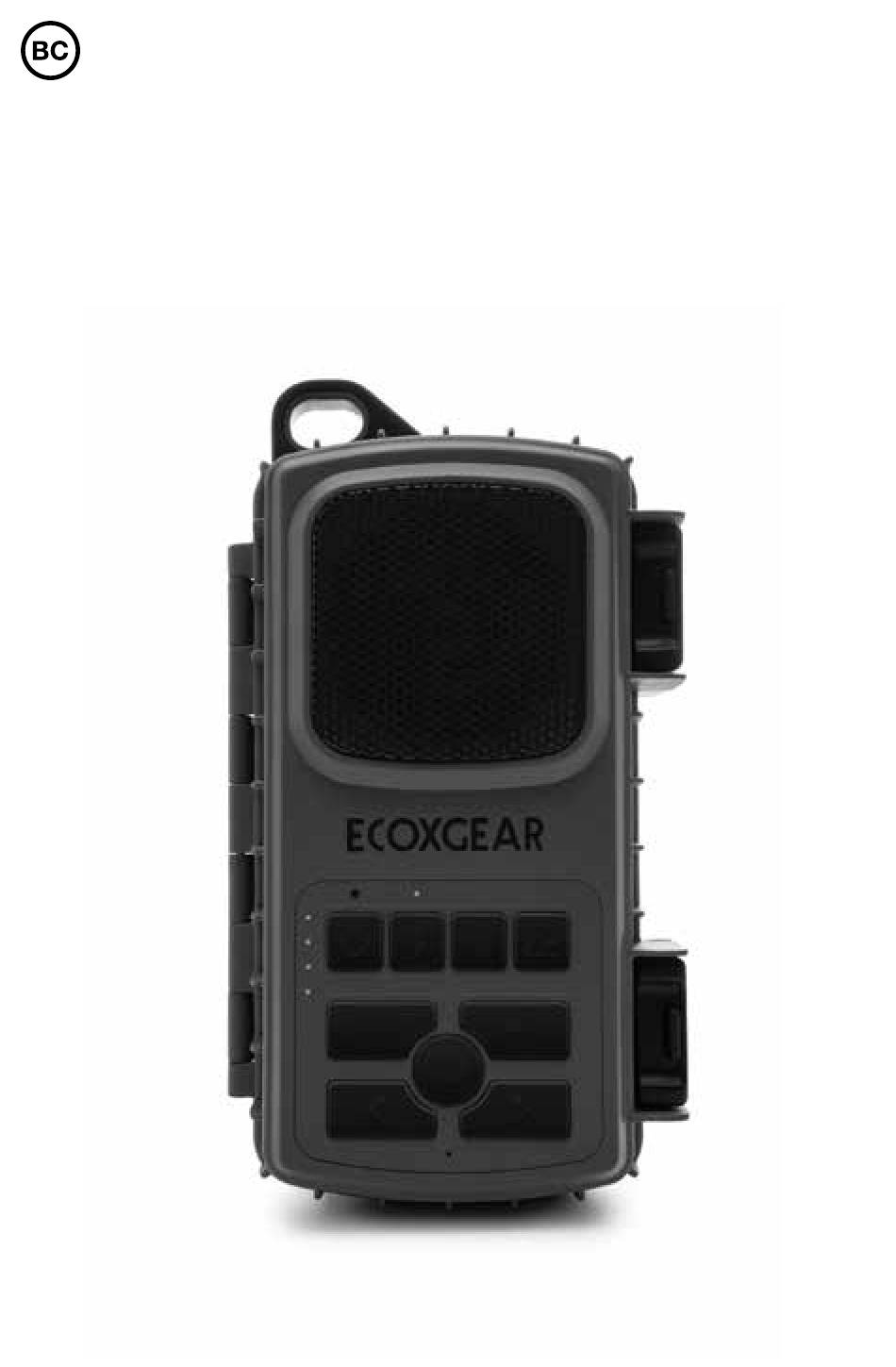

  • Page 1 EcoExtreme 2 Models: GDI-EX3W210...220 User Guide...

  • Page 2: Quick Start

    Quick Start Push buttons on Clasps to open your EcoExtreme 2 and access the Inside Panel Turn on the Main Power Switch On the Front Panel, press the Standby Power Button to power on your EcoExtreme 2 Search your Bluetooth Connection on your Smart Device Pair &...
  • Page 3 Zello IMPORTANT: Standby Power function will NOT Use the Zello app to turn operate when the Master your EcoExtreme 2 into a Power is set to OFF. Master Walkie-Talkie. Refer to Zello: Power Switch on the Push-to-Talk, Walkie-Talkie Inside Panel must be set Smartphone App for details.
  • Page 4 EcoTalk feature. Charging Status. RED: Charge in process GREEN: Full charge complete When you turn on the EcoExtreme 2, the blue LED above the Bluetooth Button on the Front Panel indicates Bluetooth Status. FLASHING: Ready to pair...

  • Page 5: Waterproof Case

    Waterproof Case Push Button on Lift Gently on Both Both Clasps Clasps & Open Case Open Case To open, press in the Safety Lock Button and pull up gently on both clasps. Important: Maintaining Waterproofness If the case is not properly closed, the unit is NOT watertight. To ensure the unit is watertight &...
  • Page 6 Inside Panel: Functions Master Power Switch USB-C Input Master Power Switch USB-C Input EcoExtreme 2 has a separate Connect the USB cable to the Master Power Switch and 5V USB-C Input to charge a Standby Button. The your EcoExtreme 2.

  • Page 7: Set Up Recommendations

    NOTE: The LED Charging Status Indicator will only turn on while the EcoExtreme 2 is connected to a 5V power source. It will shine red while charging and switch to green when the unit has reached a full charge.
  • Page 8 Once connected, select and play your desired audio. Pairing Mode: If the Bluetooth Status Indicator is not flashing or if you wish to place your EcoExtreme 2 in pairing mode, press and release the Bluetooth Button on the Front Panel. Your EcoExtreme 2 shall announce, “Ready to connect,”...
  • Page 9 Smartphone or other Smart Device, refer to the User Guide for your Smartphone to learn how to add and pair a new device (EcoExtreme 2 for instance) to your Smartphone using Bluetooth. Bluetooth Pairing & Connections: Once paired, should you...

  • Page 10: Press And Hold

    Internet access! You can use it one-on-one with a friend or for a live group-call. Steps to get “Zello” up and running with your EcoExtreme 2: Download the Zello app onto your phone from Apple’s or Google’s app stores.

  • Page 11: Specifications

    Specifications Unit Dimensions 5.5” 2.6” Unit Weight Play Time 22 ounces 15+ hours from full charge at 75% volume level Output Power 15W (15 Watt / Charging Options 4 ohms speaker) USB-C to 5V AC adapter or Computer S/N Ratio 88dB +/- 3dB Charging Time Approximately 3 hours...

  • Page 12: What's In The Box

    What’s in the Box EcoExtreme 2 Models: GDI-EX3W210...220 User Guide EcoExtreme 2 Unit User Guide Carabiner USB Cable Optional Accessories For Charging AC (5V, 1A) USB Wall Outlet Power Adapter...

  • Page 13: Fcc Statement

    PRODUCT USE AND PROTECTION: Read and follow all instructions. Use only as intended. The EcoExtreme 2 Bluetooth speaker is intended to be used indoors or outdoors and in land or water environments. The speaker has been tested to IP67 waterproofing standards, which means the speaker can be submerged in up to 3 feet of water for 30 minutes without any damage.
  • Page 14 5) Properly clean the EcoExtreme 2 and ensure the gaskets have no sand, dirt, or water on them prior to storage or removing the back cover. Ensure housing seal is clean and not damaged prior to each use.

  • Page 15: Care, Maintenance, & Precautions

    5) NEVER submerge the product in water below its depth rating: 3 feet / 1 meter. 6) NEVER attempt to fix, repair your EcoExtreme 2 unit. Please send it back to ECOXGEAR for any assessments and repairs.
  • Page 16 EcoExtreme 2 by ECOXGEAR, a division of Grace Digital Inc., San Diego, California. Designed and Engineered in the USA. Made in China. Patent Pending. Google is a trademark of Google LLC. Siri and Apple are trademarks of Apple Inc. Bluetooth...
