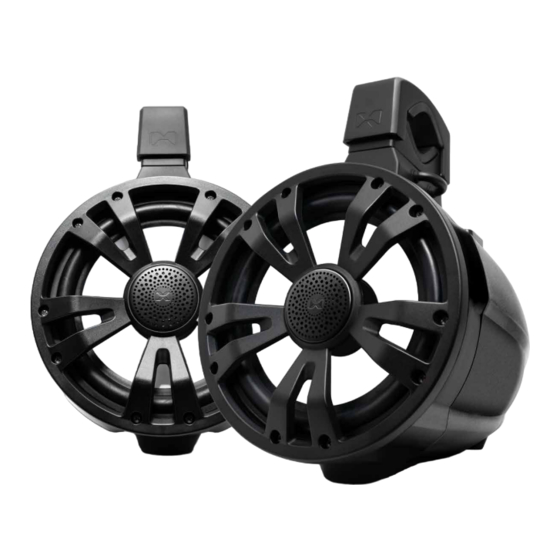

EcoxGear SOUNDEXTREME SEI-ET7700 20 Series User Manual

EcoxGear SOUNDEXTREME SEI-ET7700 20 Series User Manual

8 inch tower speakers
Hide thumbs Also See for SOUNDEXTREME SEI-ET7700 20 Series:

Advertisement

Quick Links

ExtremeTower T8
Models: SEI-ET7700...20
8 inch Tower
Speakers
User Guide
Installation and Operation
2
Passive Tower Speakers

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOUNDEXTREME SEI-ET7700 20 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EcoxGear SOUNDEXTREME SEI-ET7700 20 Series

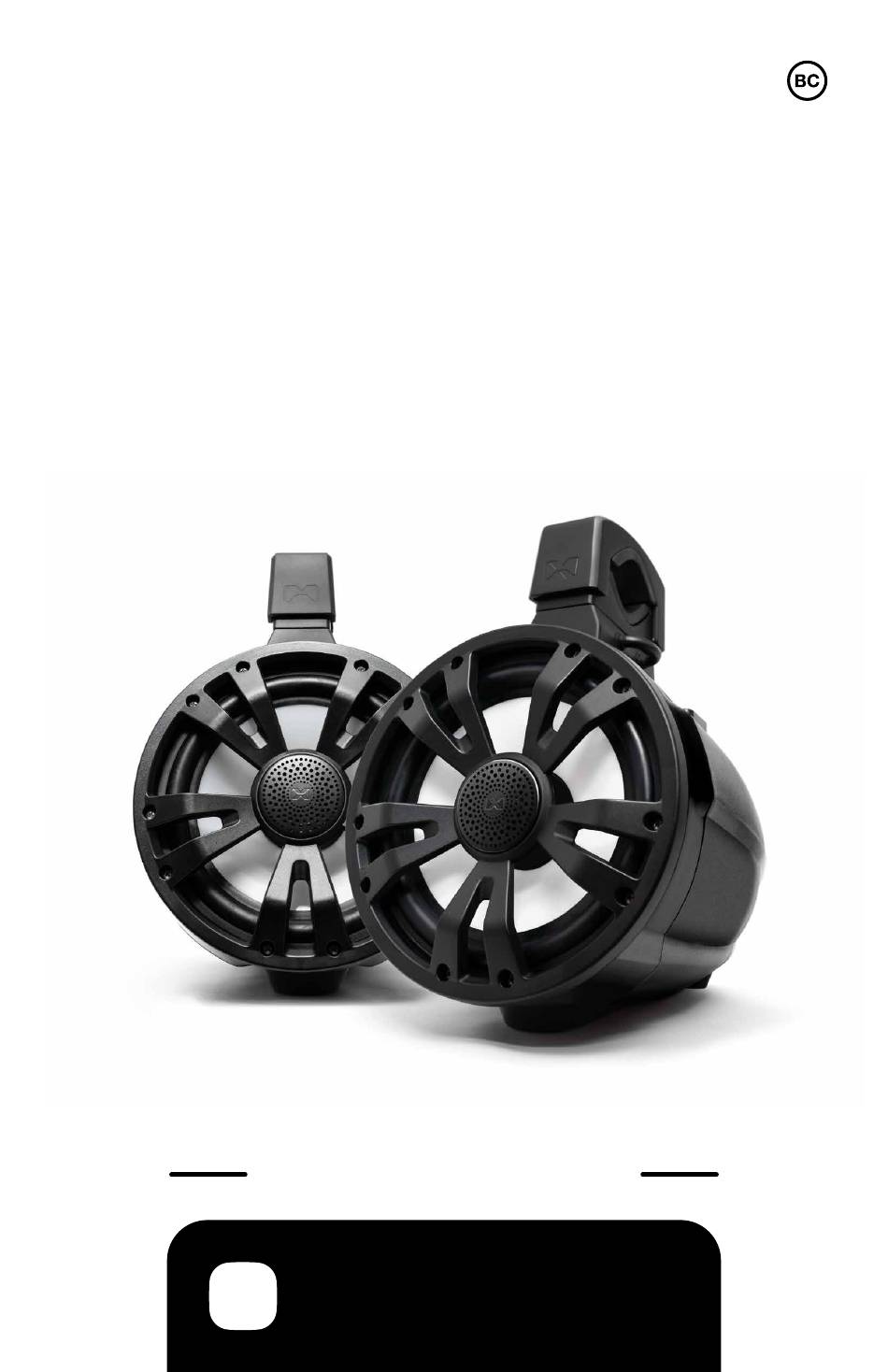

  • Page 1 ExtremeTower T8 Models: SEI-ET7700...20 8 inch Tower Speakers User Guide Installation and Operation Passive Tower Speakers...
  • Page 2 Important · Please read the Hardware Guide and User Guide before installation and use. · When mounting the speaker, it is extremely important to make sure that the mount is secure and will not cause any potential issues. Please check that the speaker does NOT block the driver’s view or prevents the safe operation of your boat or other vehicle.
  • Page 3 Important CAUTION: After taking the product out of the polyethylene bag, be sure to dispose of the polyethylene bag out of the reach of children. Children may play with the bag, which could result in the child’s suffocation.
  • Page 4 ExtremeTower Overview ExtremeTower Layout Tweeter Party Lights Speaker U-Shaped Pin Quick-Release Knob Rotating 360° Top Mount Mount Clamp Clamp Bottom Mount Base-Mount Clamp...
  • Page 5 ExtremeTower Overview Audio and LED Control Connectors and Cables Audio and LED Lighting Control Connections: The ExtremeTower Speakers have 5 input connections / wires. · 3 LED control inputs to connect to an external SoundExtreme LEDCast-enabled controller or LEDCast Radio (sold separately). ·...
  • Page 6 ExtremeTower Overview Cables Your package includes 2 types of 6-pin cables and a 3-pin LED Extension Cable. 6-Pin Aviation Speaker Audio Inputs 3-Pin LED Connector (Positive + and Negative -) Connector “Round C” 6-Pin Pass-Through LED and Speaker Aviation Cable 1.
  • Page 7 ExtremeTower Overview 3. LED Extension Cable — Depending on the distances between your speakers, the audio source, and the LED lighting controller, you may need to use the provided LED Extension Cables. For the LED Extension Cable, connect the 3-pin male connector on the Aviation (Round C) Cable or Deutsch (Deutsch C) Cable to the 3-pin female connector on the included LED Extension Cable.
  • Page 8: Installation And Wiring

    Installation and Wiring Installation and Wiring Procedure 1: Round Aviation Cable If you choose to use the Aviation Cable Set for wiring your ExtremeTower Speakers, follow the steps below. Aviation Connector Jack Speaker and LED Lighting Control Wiring: The Aviation Cable will pass through the Bottom Mount Clamp and go into a hole in the crossbar;...
  • Page 9 Installation and Wiring Rubber Insert Swivel Flange and Bottom Clamp Assembly 4 pcs M3 x 10 Screws Base Cover Plate Aviation Connector 2. Put the appropriate Lower Rubber Insert onto the Swivel Flange and Bottom Clamp Assembly. 3. Fish the (“Round C” 6-pin pass- through LED and speaker) Aviation Cable through the inner hole of the Swivel Flange and Bottom Clamp...
  • Page 10 Installation and Wiring controller is located. When using cable extensions, make sure the connections are sealed (e.g., with the included electrical tape) to prevent potential wire corrosion due to water or moisture penetration. 6. Put the Base Cover Plate on the speaker Mount-Base and secure with 4 pcs of M3 x 10 Screws.
  • Page 11 Installation and Wiring the supplied M5 Allen wrench (or with your hand if utilizing the Quick-Release Knob). Note: It is NOT recommended to use the Quick-Release Knob with this wiring method. Do NOT tighten the screw yet. Bolts Washers and Spring Washers Top Clamp Rubber Insert 10.
  • Page 12 Installation and Wiring Installation and Wiring Procedure 2: Square Deutsch Cable This cable installation method does NOT require that the cables go through the mount. This method allows for the speakers to be mounted to the crossbar before running the wires and before completing the cable connections.
  • Page 13 Installation and Wiring Mount the Tower Speaker to the Crossbar Rubber Insert Swivel Flange and Bottom Clamp Assembly 4 pcs M3 x 10 Screws Base Cover Plate Deutsch Cable 1. Put the appropriate Lower Rubber Insert onto the Swivel Flange and Bottom Clamp Assembly.
  • Page 14 Installation and Wiring U-Shaped Pin Quick-Release Knob 4. Insert the U-Shaped Pin into the two holes on the side of the Base-Mount. Insert the pins into the holes on the left side of the Mount when viewing from the rear of the speaker. 5.
  • Page 15 Installation and Wiring Bolts Washers and Spring Washers Top Clamp Rubber Insert 6. Put the Upper Rubber Insert on the Top Clamp. Align the rubber groove with the bulge of the Top Clamp and press down to assemble the Clamp and Rubber Insert. 7.
  • Page 16 Audio Source and LED Light Controller You can now connect the speakers to your audio source and a SoundExtreme LEDCast-enabled controller or LEDCast Radio. To prevent damaging the speaker, turn off the power of both the audio source and the controller BEFORE connecting the devices to the speakers.
  • Page 17: Specifications

    Specifications Dimensions Weight 9.66 lbs / 4.38 kg (with mount); 8. 1 6 lbs / 3.7 kg (without mount) Power Output 300 Watt max (100 Watt RMS) Tweeter 1.5’’ (38 mm) tweeter, 4 ohms Woofer 8’’ (203 mm) low and mid- 7.26 in / 184 mm range woofer, 3 ohms Frequency Response...
  • Page 18: Important Legal Information

    Important Legal Information FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference, and 2.) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 19 Important Legal Information Please exercise care and good judgment when using your ExtremeTower speakers. Audio levels should be appropriate to your environment, comply with all local regulations, and always ensure that you can hear and be aware of any potential hazards around you. You should always 1.) Use the ExtremeTower speakers in accordance with any music or noise rules and regulations.

This manual is also suitable for:

Soundextreme extremetower t8
