PLEASE READ
BEFORE UNBOXING
BEFORE you start unpacking your ExtremeTower
Speakers, PLEASE READ this Hardware Guide, then read
the ExtremeTower Speakers Installation and User Guides.

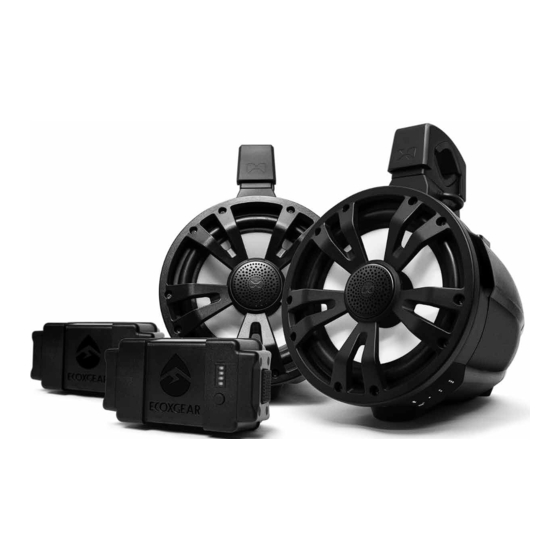

ExtremeTower TBB8 | Models: SEI-ETAMPBAT7700...20
8 inch Tower Speakers
Hardware Guide
2
Bluetooth Amplified Tower Speakers
2
Batteries
