EcoxGear GDI-EXBLD800 User Manual

EcoxGear GDI-EXBLD800 User Manual

Waterproof outdoor speaker

Advertisement

+

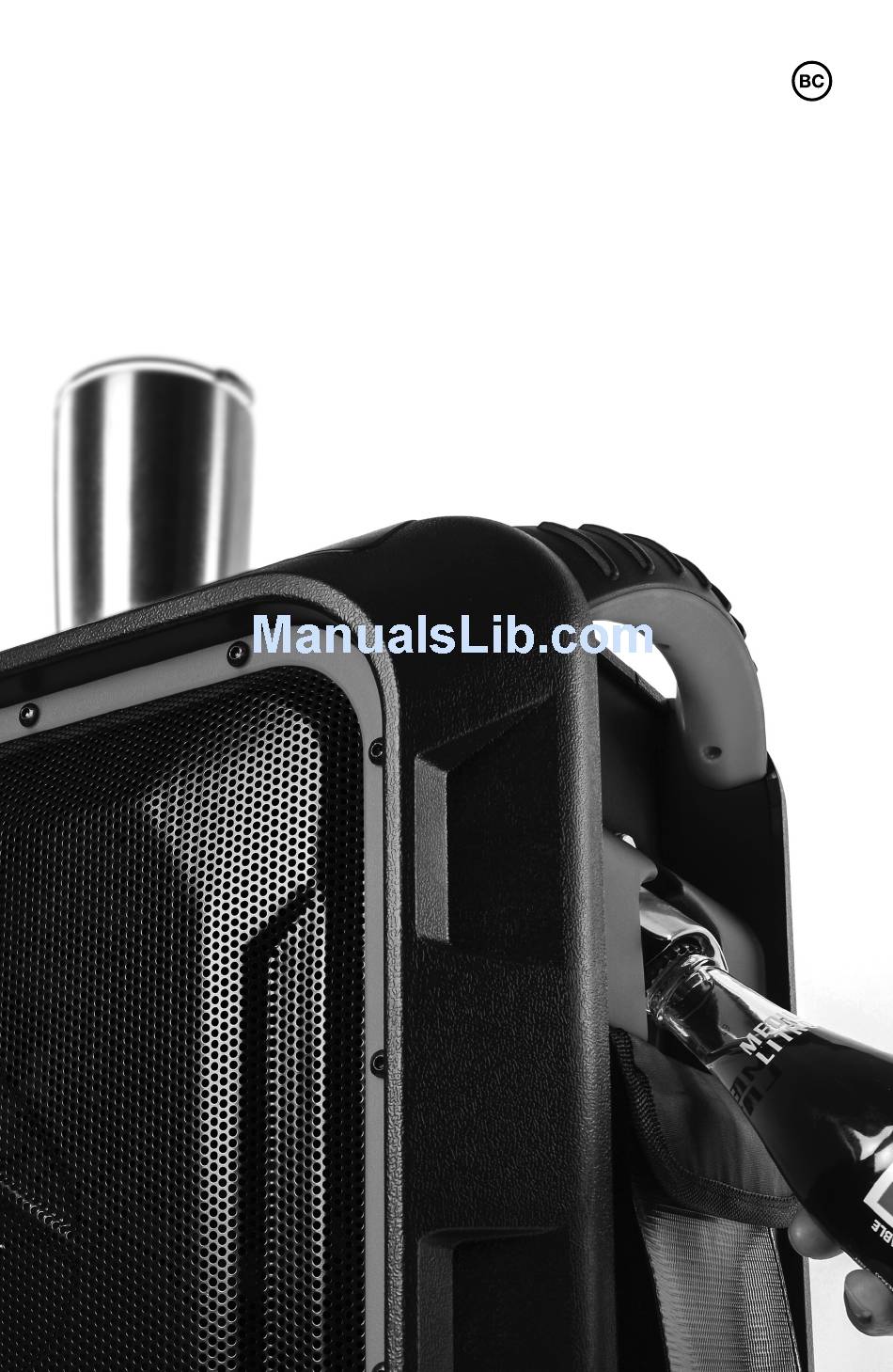

EcoBoulder
Waterproof Outdoor Speaker
User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI-EXBLD800 and is the answer not in the manual?

Questions and answers

Daniel McCutcheon
June 28, 2025

My GDI-EXBLD800…820 unit seems to be charging, but the power button isn’t turning the unit on. Any ideas on how to reset or otherwise get it to turn on?

Summary of Contents for EcoxGear GDI-EXBLD800

  • Page 1 EcoBoulder Waterproof Outdoor Speaker User Guide...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equalateral triangle, is intended to alert the user to the presence of non-insulated "dangerous voltage"...
  • Page 3 16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 4 EcoBoulder Layout Rugged Carrying Handles Connect Port Control Panel Charge Port FRONT...
  • Page 5 Models: GDI-EXBLD800...820 Storage Pocket Retractable Handle Rugged Wheels BACK...
  • Page 6: Connect Power

    Connect + Power In/Out Connections Do NOT use these connections if they are wet. Microphone Input: You can input a microphone, guitar, or other musical instrument. Port is ¼" (6.35 mm). Auxiliary Input: This input can be used to connect a CD player, MP3 player, etc.
  • Page 7: Left Side

    USB Jack AUX Jack Microphone Jack Power Cable Jack LEFT SIDE...
  • Page 8 Important: Maintaining Waterproofness If the caps on the left side panel are not properly closed, the unit is NOT watertight. Waterproof Caps To close properly, turn the cap clockwise so the cap’s arrow point lines up with the locked symbol To access the connections, turn the cap counterclockwise so the cap’s arrow point lines up with the unlocked symbol...
  • Page 9: Right Side

    Bottle Opener Storage Pocket RIGHT SIDE...
  • Page 10: Display Controls

    Display + Controls Cup Holders Secure Cradle for Devices 1. Power Button: Turns EcoBoulder+ on or off. 2. Bluetooth Button: When in Bluetooth mode, if the Bluetooth icon is not flashing on the LED screen, press this button to enter pairing mode. If your device is paired (solid icon on LED screen), press button to disconnect.
  • Page 11 7. EcoConnect Button: If you have purchased a second EcoBoulder+ (or one other ECOXGEAR speaker bearing the EcoConnect symbol), press and release this button on both speakers to link them together and play in stereo. 8. Master Volume Control: Press to adjust the speaker’s main mix volume. Press and hold to adjust the volume continually (volume levels are 0 to 30).
  • Page 12: Power On/Off

    3. Navigate to your Bluetooth device’s setup screen, find ECOXGEAR and connect. If the connection is successful, the Bluetooth icon will be lit solid and your EcoBoulder+ will announce “Connection successful. ”...
  • Page 13: Adjust The Master Volume

    Notes: · If the pairing is not complete within 5 minutes, the speaker will exit the pairing mode. You need to repeat the pairing steps again. · After the connection is successful, if you turn the speaker off and turn it on again, it will reconnect to the last connected device automatically.
  • Page 14: Play Music (Bluetooth Mode)

    Play Music (Bluetooth Mode) After the EcoBoulder+ is connected to your Bluetooth device, press briefly on the EcoBoulder+ to play, press again to pause. Press briefly to play previous song. Press briefly to get the next song. Press to adjust the volume. Notes: ·...
  • Page 15 AM/FM Presets and Equalization Store a favorite radio station to quickly tune to a preset radio station. There are 5 positions for AM station and 5 positions for FM stations. While listening to a station you want to store, press and hold a preset button (P1~P5) to assign the current station to that preset number.
  • Page 16 EcoConnect between the speakers, after power off, please follow the above steps. Notes: · You can also pair the EcoBoulder+ with any other ECOXGEAR speaker bearing the EcoConnect symbol · The EcoConnect functionality is only available while using Bluetooth as your audio source at a maximum range of 30 feet between both of the paired speakers.
  • Page 17: Troubleshooting

    Troubleshooting The sound is distorted Try lowering the volume control of your connected device or musical instrument. Also, try to reduce the overall volume of the EcoBoulder+. Cannot Pair With Bluetooth Device Make sure that your device is compatible with Bluetooth. Turn off your EcoBoulder+ and Bluetooth device, then power on and reconnect.
  • Page 18: Specifications

    Specifications Dimensions 15.5 in / 393 mm 11.3 in / 287 mm Bluetooth Compliance EcoConnect Bluetooth V 4.1 TrueWireless Stereo (TWS) Bluetooth Frequency Band EcoConnect Range 2.402~2.480GHz ISM Spectrum 30 ft / 9.1 m between left and right speaker Modulation GFSK, π/4-DQPSK, 8DPSK Compatibility Mobile phone/device supporting...
  • Page 19: Fcc Statement

    Read and follow all instructions. Use only as intended. The ECOXGEAR Bluetooth speaker is intended to be used indoors or outdoors and in land or water environments. The speaker has been tested to IP67 waterproofing standards, which means the speaker can be submerged in up to 3 feet of water for 30 minutes without any damage.
  • Page 20: Care, Maintenance & Precautions

    5.) Completely dry and clean your ECOXGEAR prior to attempting to charge the unit. 6.) Return the ECOXGEAR to Grace Digital if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected the integrity of the unit to take on water.

This manual is also suitable for:

Gdi-exbld820Ecoboulder+
