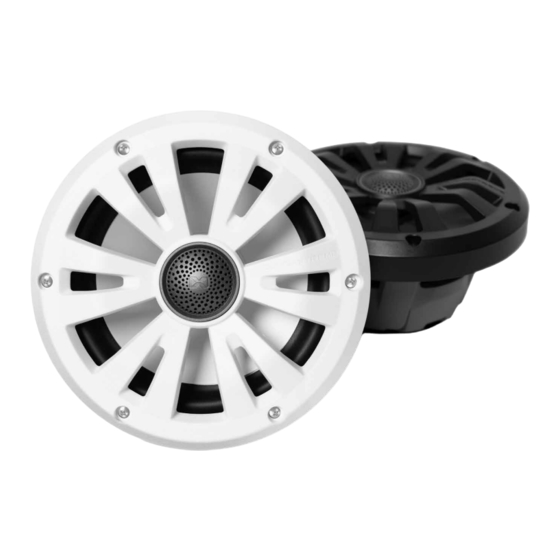

- Page 1 Extreme 6.5 inch LEDCast Speakers ™ Model: SEI-SESPKR65 User Guide Wired Speakers Black Grills + White Grills...
- Page 2 Important · Please read the User Guide before installation and use. · SoundExtreme Speakers have integrated addressable LEDs. The LEDs must be controlled by a SoundExtreme, LEDCast- enabled controller or radio (ExtremeControllers and Marine Radios sold separately). · Important: Do NOT make modifications to the speaker LED cable connectors.
- Page 3 6.5″ Wired Speakers Overview Extreme 6.5 inch LEDCast Speakers Layout Tweeter Party Lights Speaker 3-Pin LED Jack 2-Pin Audio Jack...
- Page 4 6.5″ Wired Speakers Overview Audio and LED Control Connectors and Cables Speaker Audio and LED Lighting Control Connection Jacks The 6.5″ Wired Speaker has 2 input Connection Jacks on the back. 1. 2-pin Audio Input (Positive + and Negative -) to connect to an external Audio Source (audio power amplifier or radio).
- Page 5 6.5″ Wired Speakers Overview connection from your speakers’ LED inputs to an LED Lighting Controller (such as the ExtremeController, sold separately). You have two wiring options: i. Connect each speaker’s LED Cable directly to an output jack on the ExtremeController with an Extension Cable. This will allow you to change the Light Modes on the two speakers independently.
-
Page 6: Installation And Wiring
Installation and Wiring Before Installation 1. Speaker Grill Color Selection · Your package includes 2 sets of grill covers: one white set and one black set. Choose your favorite set for the installation. 2. Mounting considerations · When you plan the speaker installation, please ensure that the mounting surface is flat for best sealing and has sufficient depth and air space behind the speaker. - Page 7 Installation and Wiring Mounting and Wirings 1. When cutting a mounting hole for your speaker, you may use the included template. Secure it to the selected location. When placing the template on the mounting surface, orient the template so the “Top” mark on the template is on the top. This is to ensure that the SoundExtreme logo on the front of the speaker is orientated properly.
- Page 8 Installation and Wiring 6. Fit the selected grill over the speaker. 7. While holding the speaker firmly in its mounting location, mount the speaker with the included 6 screws. 8. Tighten the screws until the speaker is snugly in place to prevent rattling.
- Page 9 Installation and Wiring Connecting your Speakers to an Audio Source and LED Light Controller You MUST turn off the Audio System and LED Lighting Controller before making any connections to these Source Units. Failure to do so could result in permanent damage to the Audio System, the controller, or the wired speakers.
- Page 10 Installation and Wiring LED Lighting Control Connections 1. Connect the 3-pin male connector on your LED Extension Cable to the 3-pin female connector on the LEDCast enabled controller. Align the arrow on both connectors, push-in, and screw the nut cap on the female connector. 2.
- Page 11 Installation and Wiring Turn ON Your Audio Power Amplifier and LED Lighting Controller 1. When you turn on your audio power amplifier, it is highly recommended that you set your amplifier gain properly. For example, set your receiver volume to 80% of the maximum setting and then slowly turn up the volume.
-
Page 12: Specifications
Specifications Dimensions Ø 0. 1 7 in / 4.4 mm 6. 1 2 in / 156 mm 6.94 in / 176 mm 5.35 in / 136 mm 1.22 in / 31 mm 3.79 in / 96 mm... -
Page 13: Operating Temperature
Specifications Weight 2.29 lbs / 1.04 kg Power Output 200 Watt peak (65 Watt RMS) Tweeter 1.5″ (38 mm) tweeter, 4 ohms · Frequency Response 2.2KHz~20KHz · Sensitivity 92dB ± 3dB @ /1W/1m Woofer 6.5″ (165 mm) low and mid-range woofer, 4 ohms ·... -
Page 14: Important Legal Information
Important Legal Information FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference, and 2.) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 15 Important Legal Information Please exercise care and good judgment when using your Extreme 6.5″ Wired Speakers. Audio levels should be appropriate to your environment, comply with all local regulations, and always ensure that you can hear and be aware of any potential hazards around you. You should always 1.) Use the Extreme 6.5″...
-
Page 16: What's In The Box
What’s in the Box (2 pcs) 6.5″ (2 pcs) (2 pcs) (2 pcs) Mounting Speakers Black Grills White Grills Templates (2 pcs) 2-Pin Audio Cables (11.81 in / 300 mm) (2 pcs) 3-Pin LED Cables (11.81 in / 300 mm) (2 pcs) 3-Pin LED (1 pc) 3-Pin Extension Cables...
