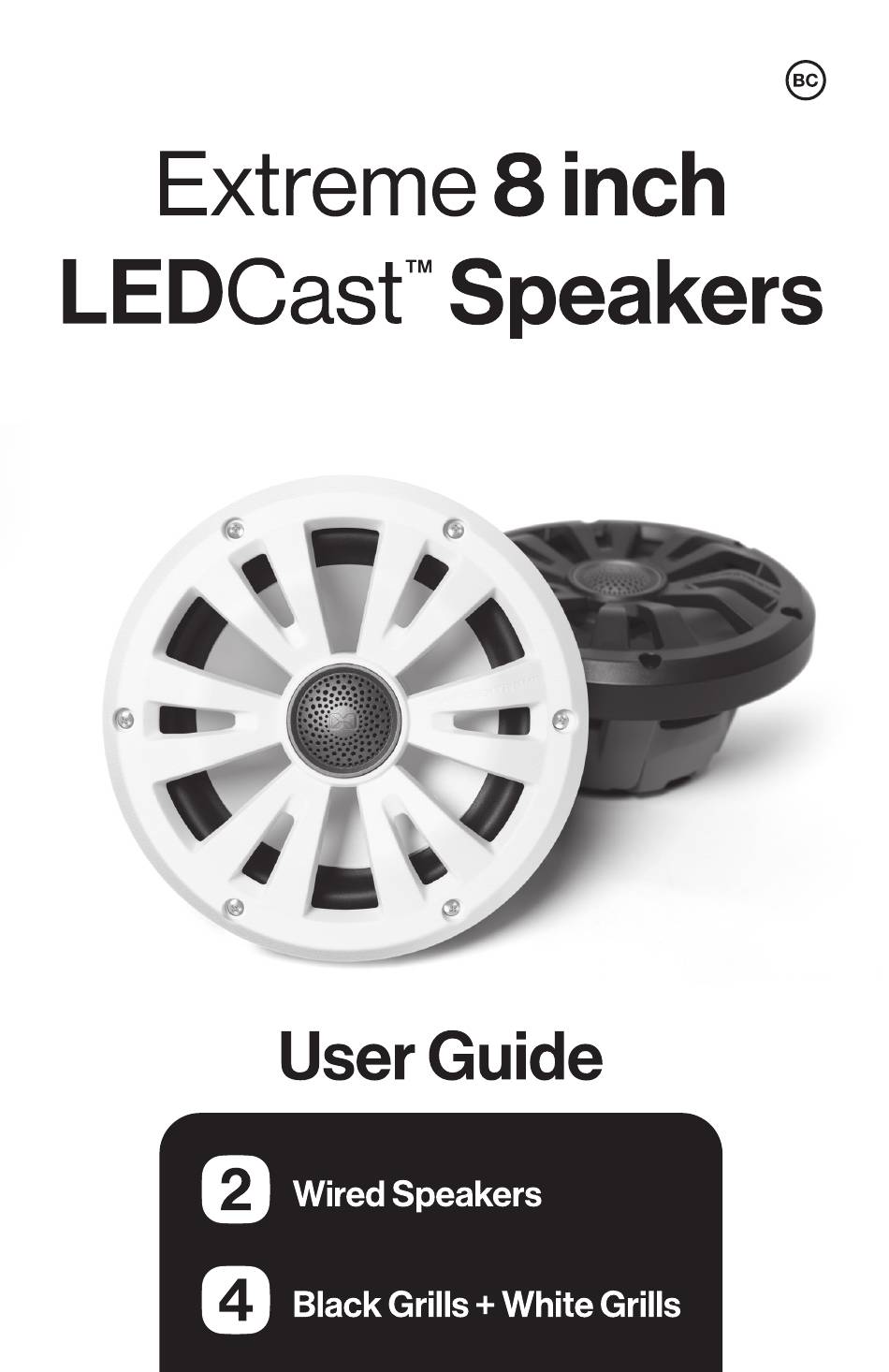

- Page 1 Model: SEI-SESPKR80AU...
- Page 2 Important · Please read the User Guide before installation and use. · SoundExtreme Speakers have integrated addressable LEDs. The LEDs must be controlled by a SoundExtreme, LEDCast- enabled controller or radio (ExtremeControllers and Marine Radios sold separately). · Important: Do NOT make modifi cations to the speaker LED cable connectors.
- Page 3 8″ Wired Speakers Overview Extreme 8 inch LEDCast Speakers Layout Tweeter Party Lights Speaker 3-Pin LED Jack 2-Pin Audio Jack...
- Page 4 8″ Wired Speakers Overview Audio and LED Control Connectors and Cables Speaker Audio and LED Lighting Control Connection Jacks The 8″ Wired Speaker has 2 input Connection Jacks on the back. 1. 2-pin Audio Input (Positive + and Negative -) to connect to an external Audio Source (audio power amplifi...
- Page 5 8″ Wired Speakers Overview connection from your speakers’ LED inputs to an LED Lighting Controller (such as the ExtremeController, sold separately). You have two wiring options: i. Connect each speaker’s LED Cable directly to an output jack on the ExtremeController with an Extension Cable. This will allow you to change the Light Modes on the two speakers independently.
-
Page 6: Installation And Wiring
Installation and Wiring Before Installation 1. Speaker Grill Color Selection · Your package includes 2 sets of grill covers: one white set and one black set. Choose your favorite set for the installation. · Fit the selected grills over each speaker. Use the 4 included screws (3x10mm) to fasten the grills onto each speaker. - Page 7 Installation and Wiring CAUTION: Be sure to use the stainless-steel screws that are provided. The stainless-steel screws are intended to assist in preventing corrosion. 3. Wiring considerations · For safety, disconnect any and all negative leads from the battery prior to beginning the installation. RECOMMENDATION: It is recommended that you run all wires prior to putting your speakers in place.
- Page 8 Installation and Wiring Positive Lead (Red) 2-Pin Audio Cable Negative Lead (Black) 3-Pin LED Cable 4. Run the audio and LED cables from the Audio Source and the LED Lighting Controller to the hole opening. 5. Plug in the Audio Cable into the 2-pin Audio Jack and the LED Cable into the 3-pin LED Jack on the speaker.
- Page 9 Installation and Wiring 6. While holding the speaker fi rmly in its mounting location, mount the speaker with the included 6 screws. 7. Tighten the screws until the speaker is snugly in place to prevent rattling. Do NOT over tighten the screws. Connecting your Speakers to an Audio Source and LED Light Controller You MUST turn off the Audio System and LED Lighting Controller...
- Page 10 Installation and Wiring 2. For each speaker, connect the Speaker + (positive) and Speaker – (negative) leads on your audio extension cable to the corresponding terminals on your audio power amplifi er. LED Lighting Control Connections 1. Connect the 3-pin male connector on your LED Extension Cable to the 3-pin female connector on the LEDCast enabled controller.
- Page 11 Installation and Wiring Turn ON Your Audio Power Amplifi er and LED Lighting Controller 1. When you turn on your audio power amplifi er, it is highly recommended that you set your amplifi er gain properly. For example, set your receiver volume to 80% of the maximum setting and then slowly turn up the volume.
-
Page 12: Specifications
Specifi cations Dimensions Ø 0.2 in / 5 mm 8.54 in / 217 mm 9.72 in / 247 mm 7.05 in / 179 mm 1.78 in / 45.2 mm 5.31 in / 135 mm... - Page 13 Specifi cations Weight 4.59 lbs / 2.08 kg Power Output 250 Watt peak (75 Watt RMS) Tweeter 1.5″ (38 mm) tweeter, 4 ohms · Frequency Response 2.2KHz~20KHz · Sensitivity 92dB ± 3dB @ /1W/1m Woofer 8″ (203 mm) low and mid-range woofer, 4 ohms ·...
-
Page 14: Important Legal Information
Important Legal Information FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference, and 2.) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifi... - Page 15 Please visit www.soundextreme.com.au for additional product & warranty information. Extreme 8″ Wired Speakers by SOUNDEXTREME. SOUNDEXTREME and ECOXGEAR are the registered trademark of Enfinity Pty Ltd Designed in Texas. Made in China. This product is protected under patent US 9,307,307 B2 and several patents pending.
