PLEASE READ
BEFORE UNBOXING
BEFORE you start unpacking your ExtremeTower
Speakers, PLEASE READ this Hardware Guide, then read
the ExtremeTower Speakers User Guide.

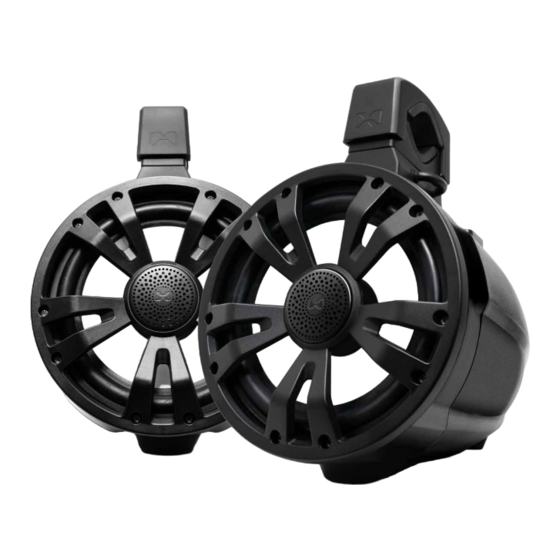

ExtremeTower T8 | Models: SEI-ET7700...20
8 inch Tower Speakers
Hardware Guide
2
Passive Tower Speakers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOUNDEXTREME SEI-ET7700 20 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EcoxGear SOUNDEXTREME SEI-ET7700 20 Series

  • Page 1 PLEASE READ BEFORE UNBOXING BEFORE you start unpacking your ExtremeTower Speakers, PLEASE READ this Hardware Guide, then read the ExtremeTower Speakers User Guide. ExtremeTower T8 | Models: SEI-ET7700...20 8 inch Tower Speakers Hardware Guide Passive Tower Speakers...
  • Page 2 Hardware Guide ExtremeTower Packaging Layout Mounting parts and tools are in the top level and the cables are located in the bottom level of the protective foam packaging. Top Level: Mounting Parts and Tools 1. Clamps 3. Thick Rubber Insert & Bolt Sets ·...
  • Page 3 Hardware Guide 4. Thin Rubber Insert 5. Mounting Tools & Bolt Sets · Allen Wrench (1 pc) · Thin Rubber Inserts (2 pcs) · Electrical Tape (1 pc) · Long Mounting Bolts (4 pcs) · Insulated BUTT Connectors - · Anti-Loose Spring Red (4 pcs) Washers (4 pcs) ·...
  • Page 4 Hardware Guide Your two ExtremeTower Speakers require external audio power amplification and an LEDCast-enabled controller to operate. The speaker LEDs must be controlled by a SoundExtreme product with LEDCast technology (sold separately). Important: Do NOT make modifications to the speaker LED cable connectors.
  • Page 5 Hardware Guide IMPORTANT 1. An Aviation Connector Jack Cover Cap is attached to the Base-Mount on the speaker. If you choose to use the Deutsch Cable Set for wiring, before installation, you MUST screw the cap into the connector jack on the speaker, tightening it clockwise with a long nose plier (not included) or similar tool.
  • Page 6 Hardware Guide CABLE SET CABLE USE SET INCLUDES Aviation Cable Set This cable set is · “Round C” 6-Pin (Round Connector) used for the speaker Pass-Through installation which LED and Speaker requires the cable Aviation Cable. to pass through the Bottom Mount Clamp and go into a hole in the crossbar at...
  • Page 7 Hardware Guide Mounting Options 1. Rubber Inserts — The Rubber Inserts are included to allow for best fit on different bar sizes. Your speakers include two Rubber Insert sets: RUBBER SET RUBBER USE SET INCLUDES Rubber Insert Set Fit 2.5” to 3.0” bar size. ·...
  • Page 8 Hardware Guide · Locking Screw Latch with a Quick-Release Knob – A tool is NOT required to tighten or untighten the latch. This option is more convenient to mount and unmount your speaker for portable use or theft deterrence. It is suggested that you use the rear Deutsch Connection Cable option with the Quick Release Knob as the round Aviation Cable option is difficult to connect and disconnect multiple times.
