Operation
SMARTBOX™ Controller Front Panel
Navigation Buttons
System Menu and Navigation
Operations Menu
SMARTBOX™ Controller for HONEYWELL™ Wind Turbine WT6500 Owner's Manual - Rev14
.TECHNICIAN
..BATTERY SETUP
BACK
UP

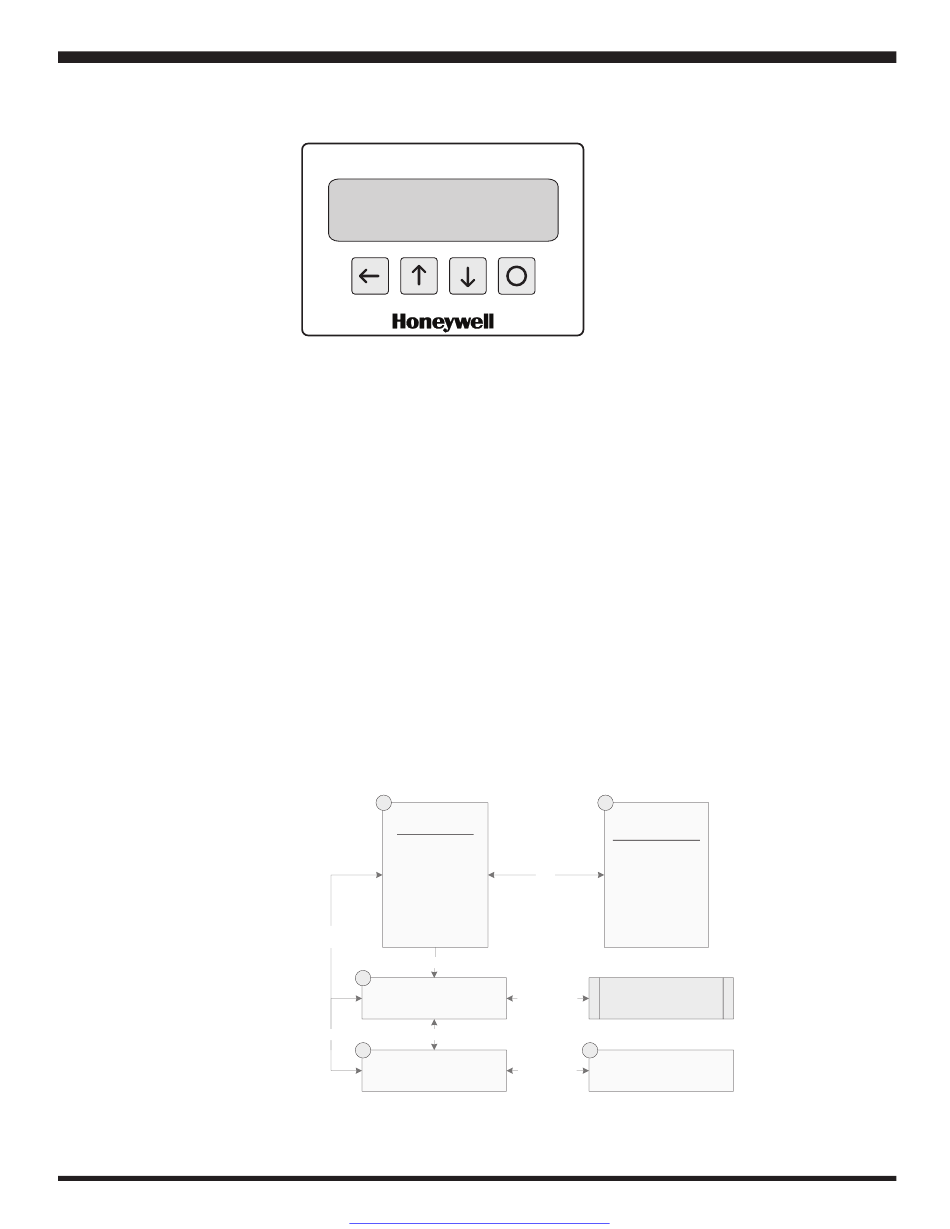

Figure 4.4
SMARTBOX™ Controller Front Panel
1. BACK button. The back button will bring you back to the previous menu level and
CANCEL any changes made.
2. UP button. The up button will scroll through the current menu selections or make a
configuration change depending on the current menu level.
3. DOWN button. The down button will scroll through the current menu selections or
make a configuration change depending on the current menu level.
4. ENTER button. The enter button will enter the currently selected menu choice. It will
also commit and save any configuration changes if applicable.
5. Line 1. In this example, line one shows you your current menu level, in this case the
TECHNICIAN menu, the one dot tells us that we are one menu level deep from the
home screen.
6. Line 2. The second line shows us that if we hit ENTER we will enter the BATTERY
SETUP menu, the two dots indicate that we will be two menu levels deep from the
home screen if we enter the BATTERY SETUP menu.
1
DEFAULT DISPLAY
WHEN RUNNING
WINDTRONICS rx.xx
Charge Status
Turbine Status
AC Status
Turbine Power
Production
Wind Speed
15 SEC
TIMEOUT
UP/DOWN
3
MAIN MENU
.TECHNICIAN ?
UP/DOWN
UP/DOWN
3
MAIN MENU
.STOP/START TURBINE ?
Figure 4.5
System Menu
Get other manuals https://www.bkmanuals.com
DOWN
ENTER
2
DEFAULT DISPLAY
DISPLAY SLEEPING
TURBINE RUNNING
PRESS ANY KEY
ANY
KEY
TURBINE STOPPED
PRESS ANY KEY
TURBINE FAULT
TECHNICIAN
ENTER/BACK
4
.STOP/START TURBINE ?
ENTER/BACK
UP=STOP DWN=START
Or
Or
MENU
32
