Omada L2+ Managed Switch
Console Port
Designed to connect with a computer for monitoring and configuring the switch. When the switch has an
RJ45 console port and a micro-USB console port, console input is active on only one console port at a
time. By default, the micro-USB connector takes precedence over the RJ45 connector.
100 Mbps/1 Gbps/2.5 Gbps/5 Gbps/10 Gbps RJ45 Port
Designed to connect to the device with a bandwidth of 100 Mbps,1 Gbps, 2.5 Gbps, 5 Gbps or 10 Gbps.
For PoE switches, the port can also provide power for PDs.
10 Mbps/100 Mbps/1000 Mbps/2.5 Gbps RJ45 Port
Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps,1000 Mbps, 2.5 Gbps. For
PoE switches, the port can also provide power for PDs.
10/100/1000 Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps. For PoE
switches, the port can also provide power for PDs.
SFP+ Slot
SFP slot is designed to install the 1 Gbps SFP module. SFP+ slot is designed to install the 10 Gbps SFP+
module.
Port Feature
Model
SG3210X-M2
SG3210XHP-M2
SG3218XP-M2
*
The RJ45 ports of SG3210X-M2/SG3210XHP-M2 does not support 10 Mbps rate.

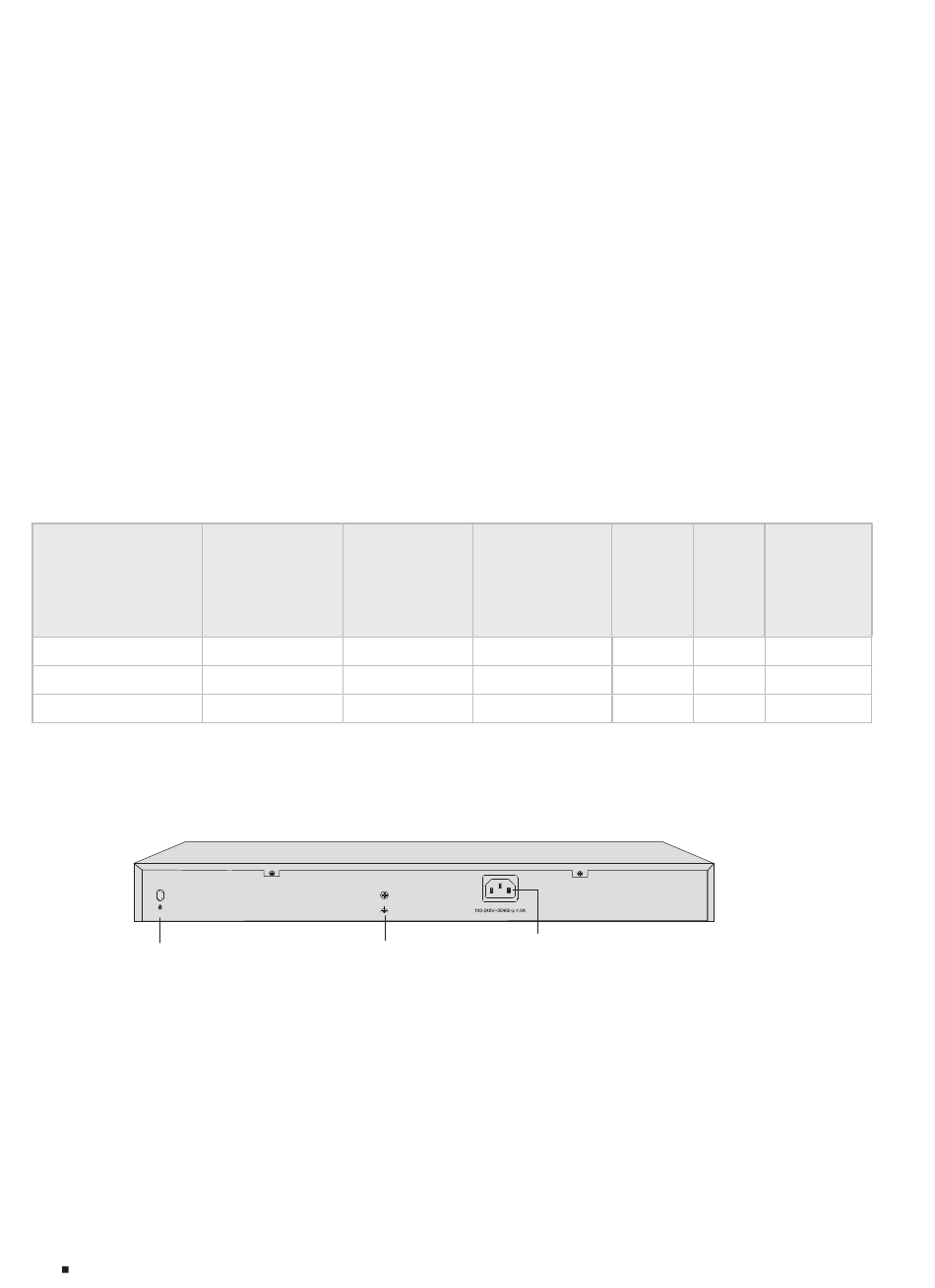

Rear Panel
■
The rear panel of
SG3218XP-M2
purposes only. Your switch may differ in appearance from the depicted.
Kensington Security Slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch through
the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection
measures, go to https://www.tp-link.com/support, search the model number of your switch and go to
the product Support web page, refer to the Lightning Protection Guide from the Related Documents:
https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/.
Power Socket
04
Introduction
100 M/1 G/2.5 G/
10 M/100 M/
5 G/10 Gbps
1000 M/2.5 Gbps
RJ45 Port
RJ45 Port
/
/
/
is shown as the following figure. The figure is for demonstration
Grounding Terminal
10/100/1000 Mbps
RJ45 Port
8*
/
8*
/
16
/
Power Socket
SFP+ Slot SFP Slot Console Port
2
/
2
/
2
/
2
2
2
