Chapter 1 Introduction

1.1

Product Overview

Designed for workgroups and departments, TP-Link Omada's L2+ Managed Switch provides wire-speed
performance and abundant L2 management features. It provides a variety of service features and multiple
powerful functions with high security.
The EIA-standardized framework and smart configuration capacity can provide flexible solutions for a
variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection provide robust security strategies.
QoS and IGMP snooping/filtering optimize voice and video application. Link aggregation (LACP) increases
aggregated bandwidth, optimizing the transport of business critical data. SNMP, RMON, WEB and CLI
Log-in bring abundant management policies. TP-Link Omada's L2+ Managed Switch integrates multiple
functions with excellent performance, and is friendly to manage, which can fully meet the need of the users
demanding higher networking performance.
SG3210XHP-M2/SG3218XP-M2 is also a Power Sourcing Equipment (PSE*). All the RJ45 ports* on the
switch support Power over Ethernet (PoE*) function, which can automatically detect and supply power to
those powered devices (PDs*) complying with IEEE 802.3af/at.
*For SG3218XP-M2, only port 1-8 supports the Power over Ethernet (PoE) function.
*PSE: a device (switch or hub for instance) that provides power through an Ethernet cable.
*PoE: This technology describes a system to transmit electrical power, along with data, to remote devices
over standard twisted-pair cable in an Ethernet.
*PD: a device powered by a PSE and thus consumes energy. Examples include powering network cameras,
wireless LAN access points, IP telephones, network hubs, embedded computers etc.
1.2

Appearance

Front Panel
(The figures are for demonstration only. They may differ from your actual products. )
■

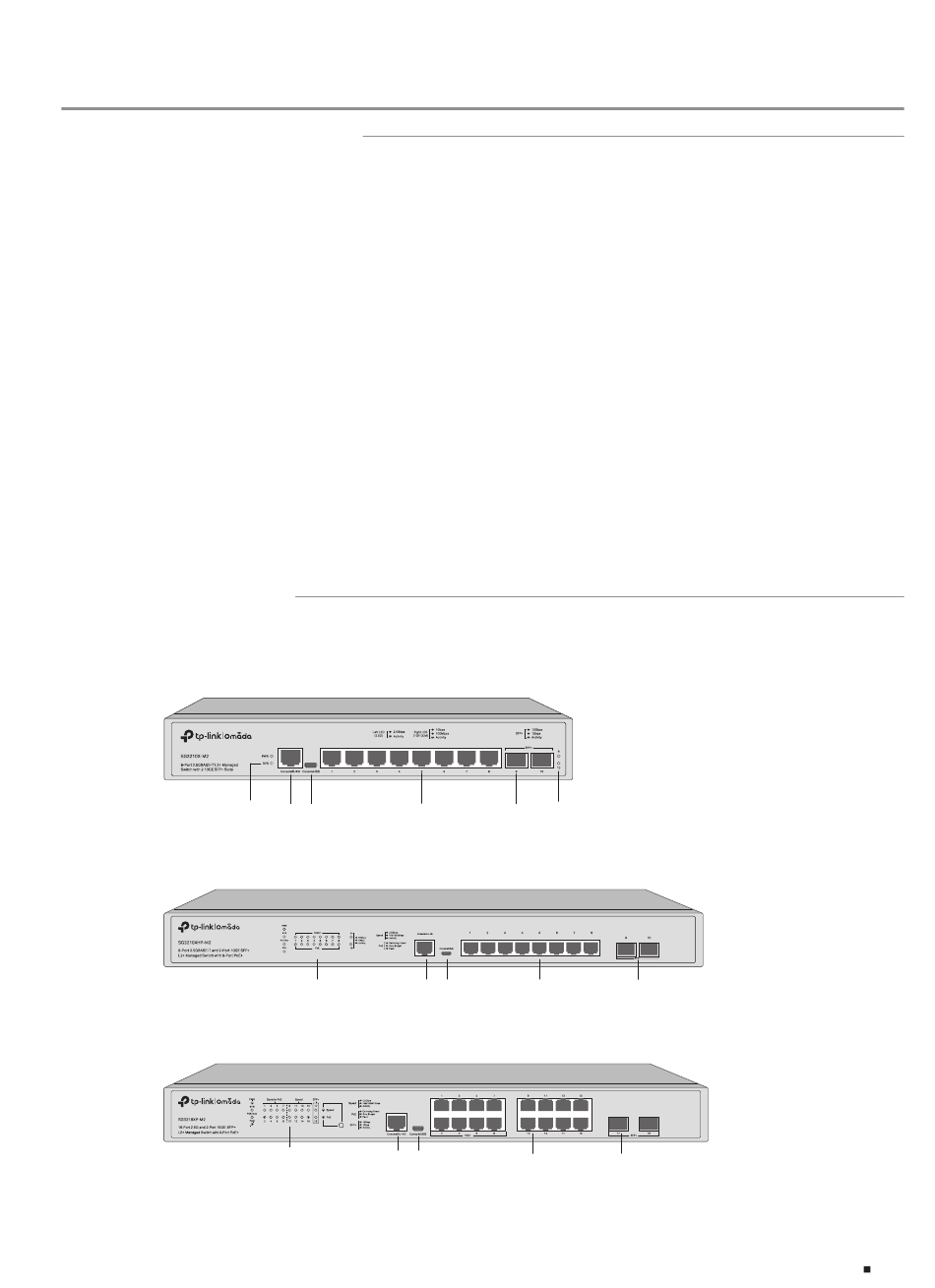

The front panel of SG3210X-M2
The front panel of SG3210XHP-M2
The front panel of SG3218XP-M2
is shown as the following figure.
LED
Console Port 2.5G
(RJ45/USB) RJ45 Port
is shown as the following figure.
LED Console Port
(RJ45/USB)
is shown as the following figure.
LED
Console Port
(RJ45/USB)
Omada L2+ Managed Switch
LED
SFP+ Slot
2.5G
SFP+ Slot
RJ45 Port
2.5G SFP+ Slot
RJ45 Port
Introduction 01
