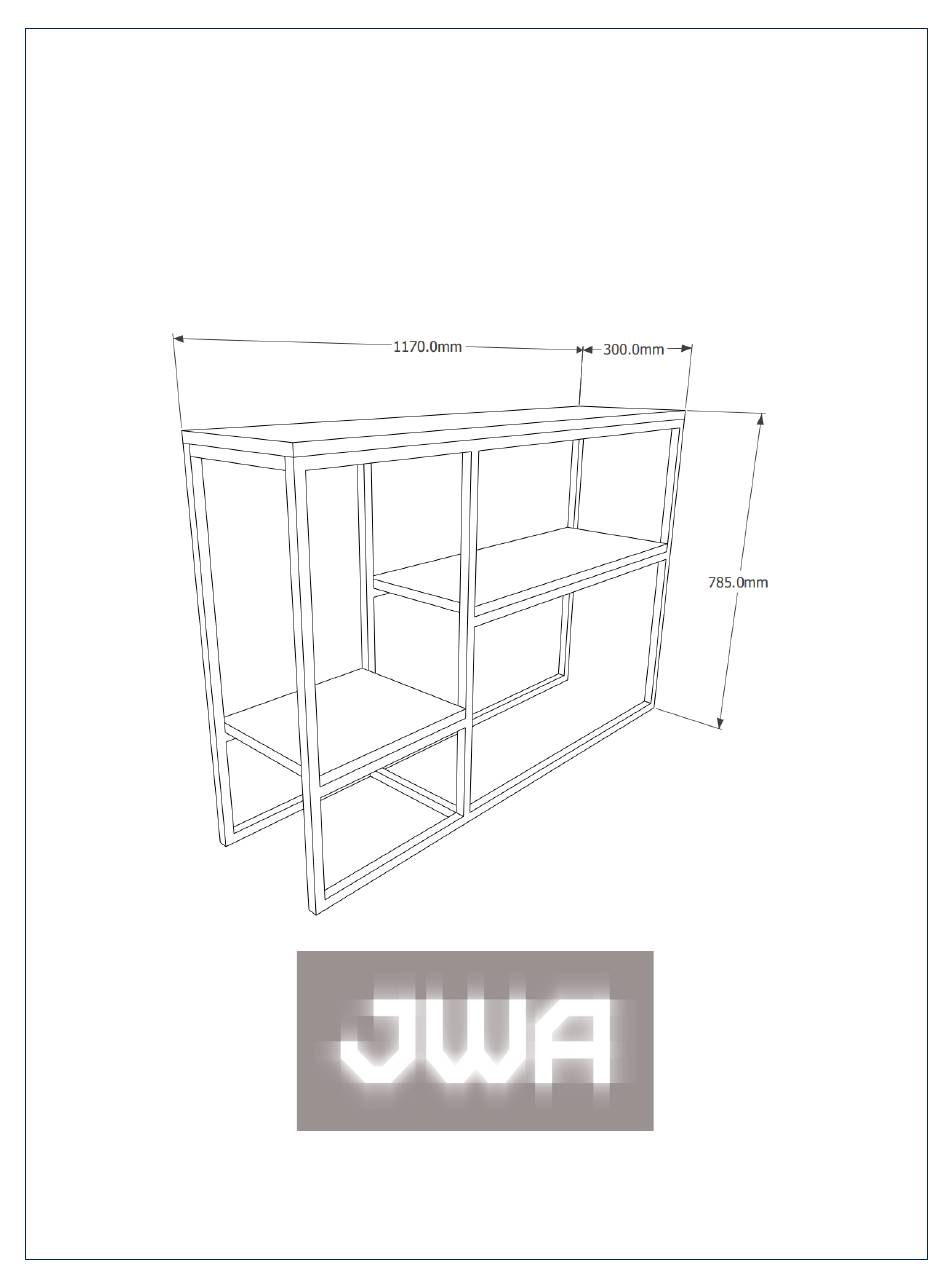

- Page 1 ASSEMBLY INSTRUCTION CHINON SOFA TABLE ITEM CODE 68716 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST Top Panel x 1 Frame x 1 Middle Panel x 1 Frame x 1 Lower Panel x 1 Bars x 3... - Page 4 STEP 1: • Prepare a surface with a protective blanket or cardboard. • Place frame(5) flat on the surface, as shown below. • Insert the 3x bars(4) onto frame(5). • Cap the frame with frame(6), as shown below. • Secure with 2x bolt(A) per connection. Fasten with allen key(C).
- Page 5 STEP 2: • Insert the top panel(1) into the frame, as shown below. • Secure with 12x screw(B) fasten with a phillips head screw driver.
- Page 6 STEP 3: • Insert the middle panel(2) into the frame, as shown below. • Secure with 8x screw(B) fasten with a phillips head screw driver. • Then insert the lower panel(3), secure with 4x screw(B), fasten with a phillips head screw driver. STEP 4: •...

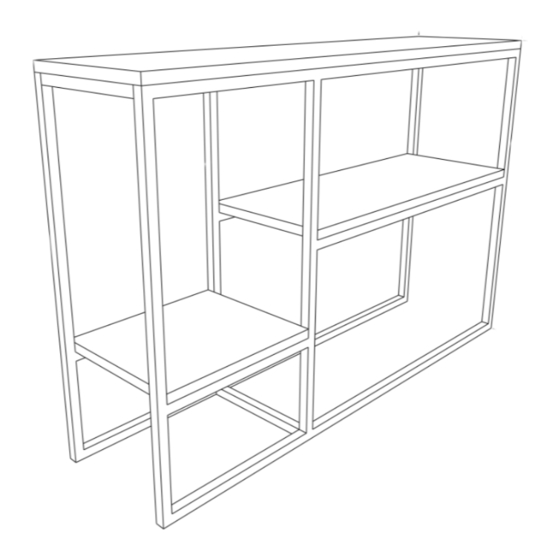

- Page 7 ASSEMBLY IS COMPLETE...
- Page 8 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 9 PRODUCT CARE: As our timber is supplied from sustainable forests there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique Our furniture is built to last.
