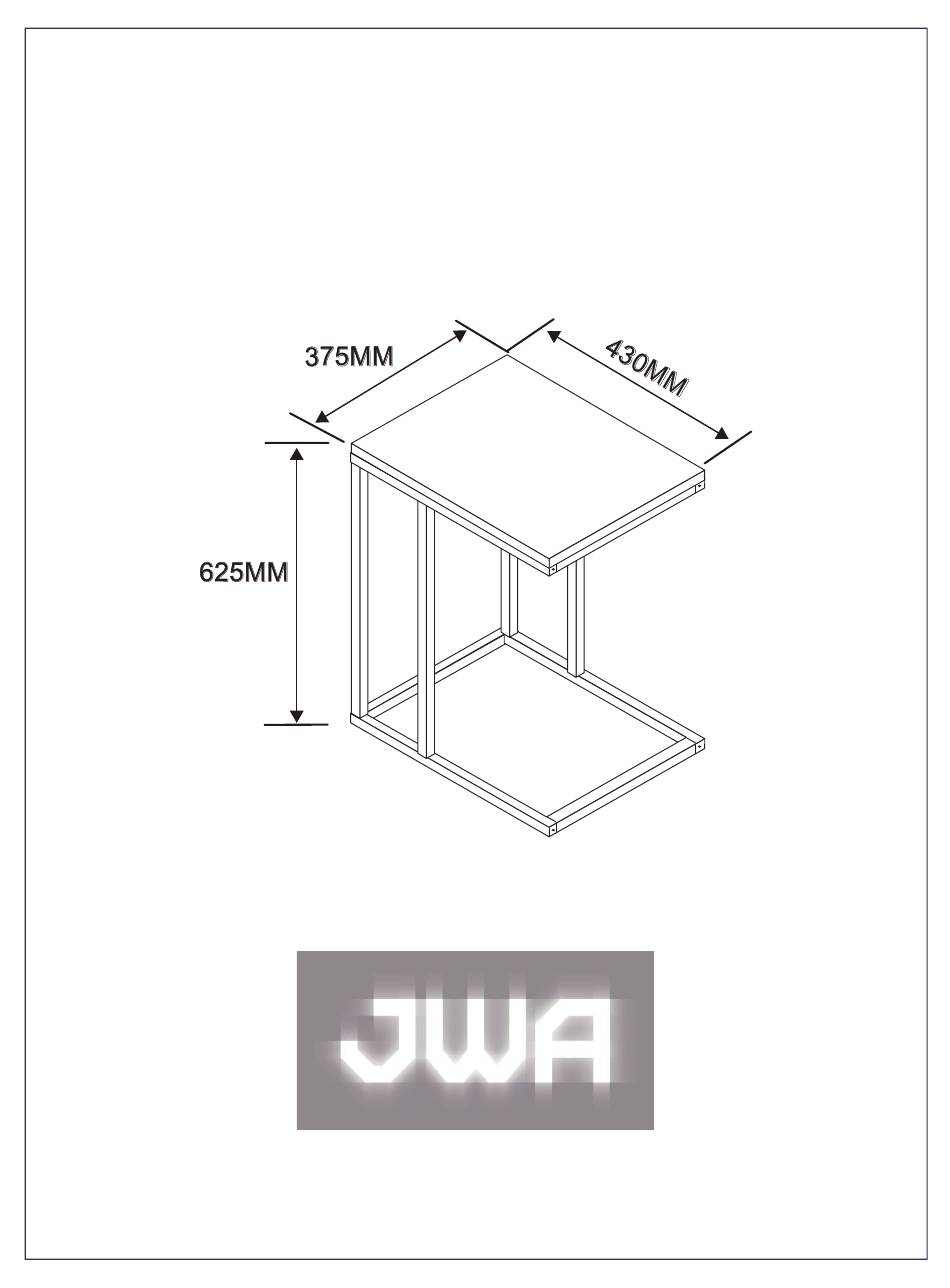

- Page 1 ASSEMBLY INSTRUCTION FOXGLOVE C TABLE ITEM CODE 68534 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST M6X35mm M6X25mm M6X30mm 8pcs 1pcs 4pcs 4pcs M4x30mm M3.5x14mm 1pcs 1pcs Metal part Metal part Metal part Metal part Top panel...
- Page 4 STEP 1: Attach metal parts(1)(2) with screws(D) by allen key(B). Attach metal parts(2)(3) with screws(D) by allen key(B). STEP 2: Attach metal parts (5) to part (1)(3) with screws(A) by allen key(B).

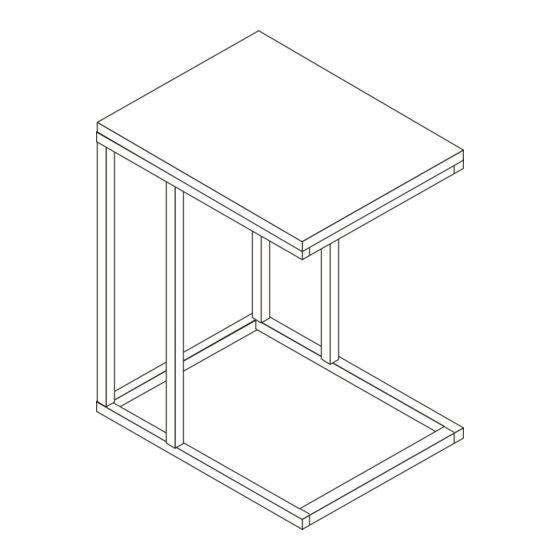

- Page 5 STEP 3: Attach metal parts to panel (4) with screws(C) by allen key(B). ASSEMBLY COMPLETE...
- Page 6 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 7 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
