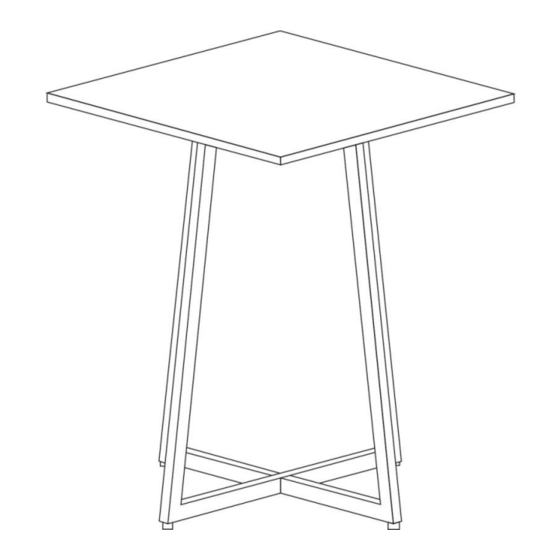

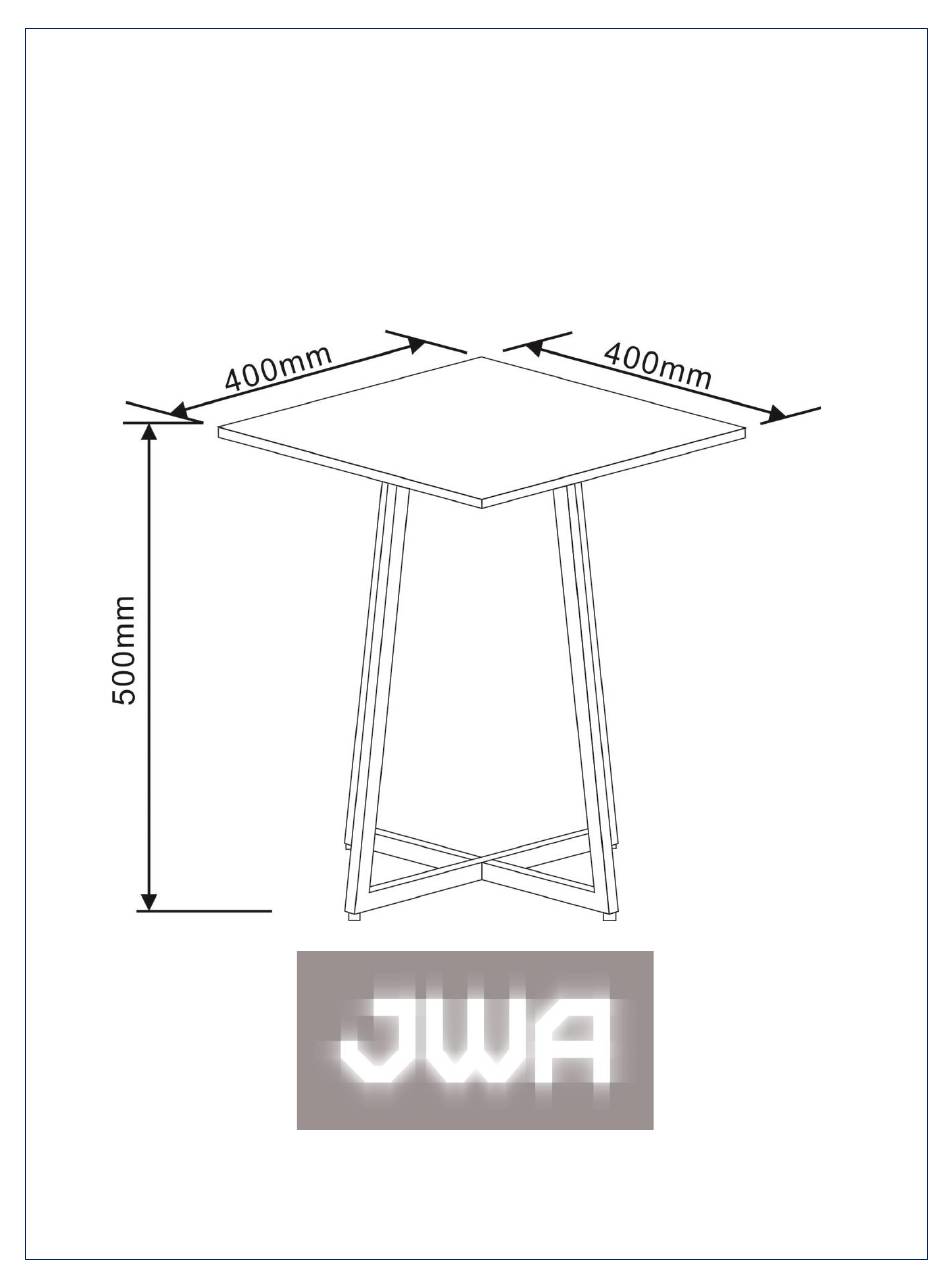

- Page 1 ASSEMBLY INSTRUCTION HENDON LAMP TABLE ITEM CODE 68569 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Panel Main metal frame Auxiliary metal frame... - Page 4 STEP 1: Connect P1 and P2 with metal patch A. STEP 2: Install fitting C into the bottom of P1 and P2 metal frame.
- Page 5 STEP 3: Fix panel 1 on top of metal frame with B2. STEP 4: Install a fall preventer.
- Page 6 ASSEMBLY IS COMPLETE...
- Page 7 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 8 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
