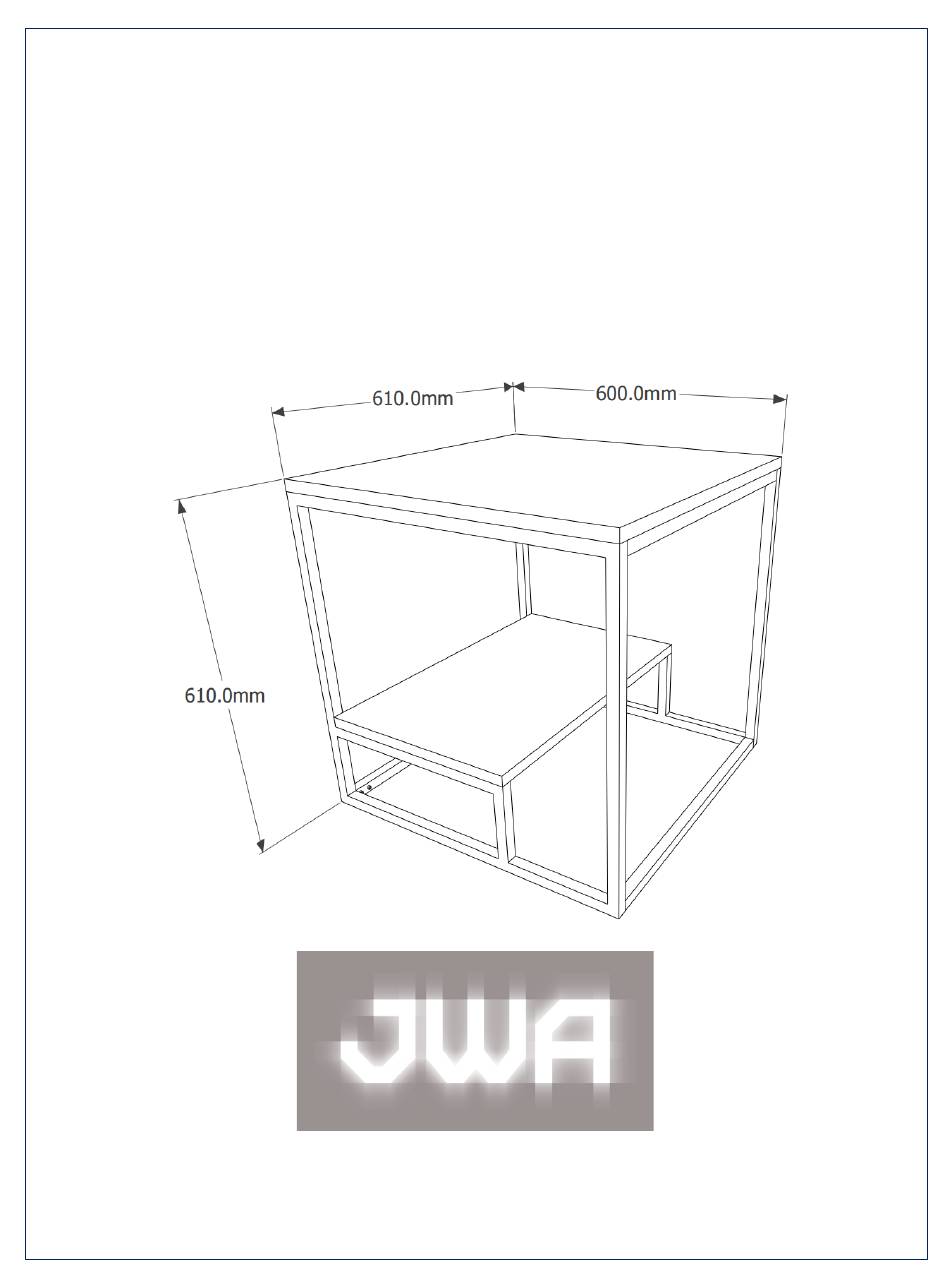

- Page 1 ASSEMBLY INSTRUCTION CHINON LAMP TABLE ITEM CODE 68717 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST Right frame x 1 Top Panel x1 Left frame x 1 Middle Panel x 1 Bars x 4... - Page 4 STEP 1: • Prepare a surface with a protective blanket or cardboard. • Place the left frame(5) flat on the surface, as shown below. • Insert the 4x bars(3) onto the left frame(5). • Cap the frame with the right frame(4), as shown below. •...
- Page 5 STEP 2: • Insert the top panel(1) into the frame, as shown below. • Secure with 6x screw(B) fasten with a phillips head screw driver.
- Page 6 STEP 3: • Insert the middle panel(2) into the frame, as shown below. • Secure with 6x screw(B) fasten with a phillips head screw driver. STEP 4: • Attach the 4x footstickers(D) as shown above. • With a 2 person rotate the table to the correct way up. •...
- Page 7 ASSEMBLY IS COMPLETE...
- Page 8 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 9 PRODUCT CARE: As our timber is supplied from sustainable forests there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique Our furniture is built to last.
