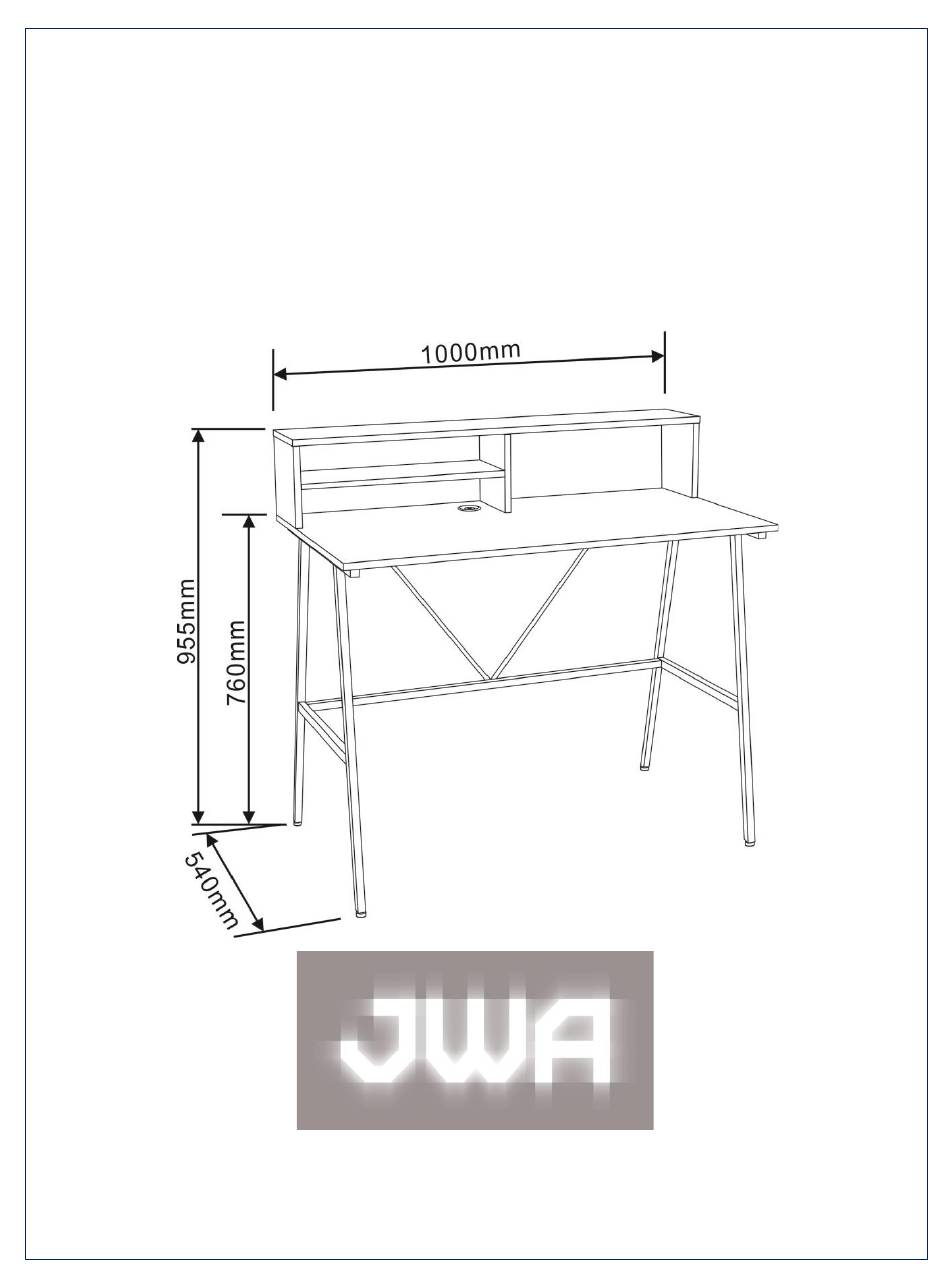

- Page 1 ASSEMBLY INSTRUCTION DESK ITEM CODE 68439 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Desktop panel Middle panel Connection pipe Top panel Layer panel Support pipe Left side panel Back panel Support pipe Right side panel Metal frame Support pipe... - Page 5 STEP 1: Load the fitting F into the metal frame P1. 将配件F装入P1金属架； STEP 2: Connect connection pipes P2, P4 and P5 with metal frame P1 with fitting B.
- Page 6 STEP 3: Fix metal pipe P3 to metal pipe P2 and P5 with fitting C and D respectively. STEP4: Fix panel 1 on the metal assembly with fitting B.
- Page 7 STEP 5: Load the fitting E into the matching hole position of panel 1. STEP 6: Connect and fix panel 3 and panel 5 at both ends of panel 6 with fittting A.
- Page 8 STEP 7: Fix panel 3, 4 and 5 on panel 1 with fitting A STEP 8: Load into back panel 7.
- Page 9 STEP 9: Use fitting A to fix panel 2 to the matching space of panel 3, 4 and 5 respectively. STEP 10: Install an anti-fall device behind the bottom of the desktop.
- Page 10 ASSEMBLY IS COMPLETE...
- Page 11 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 12 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
