Summary of Contents for JWA 68559

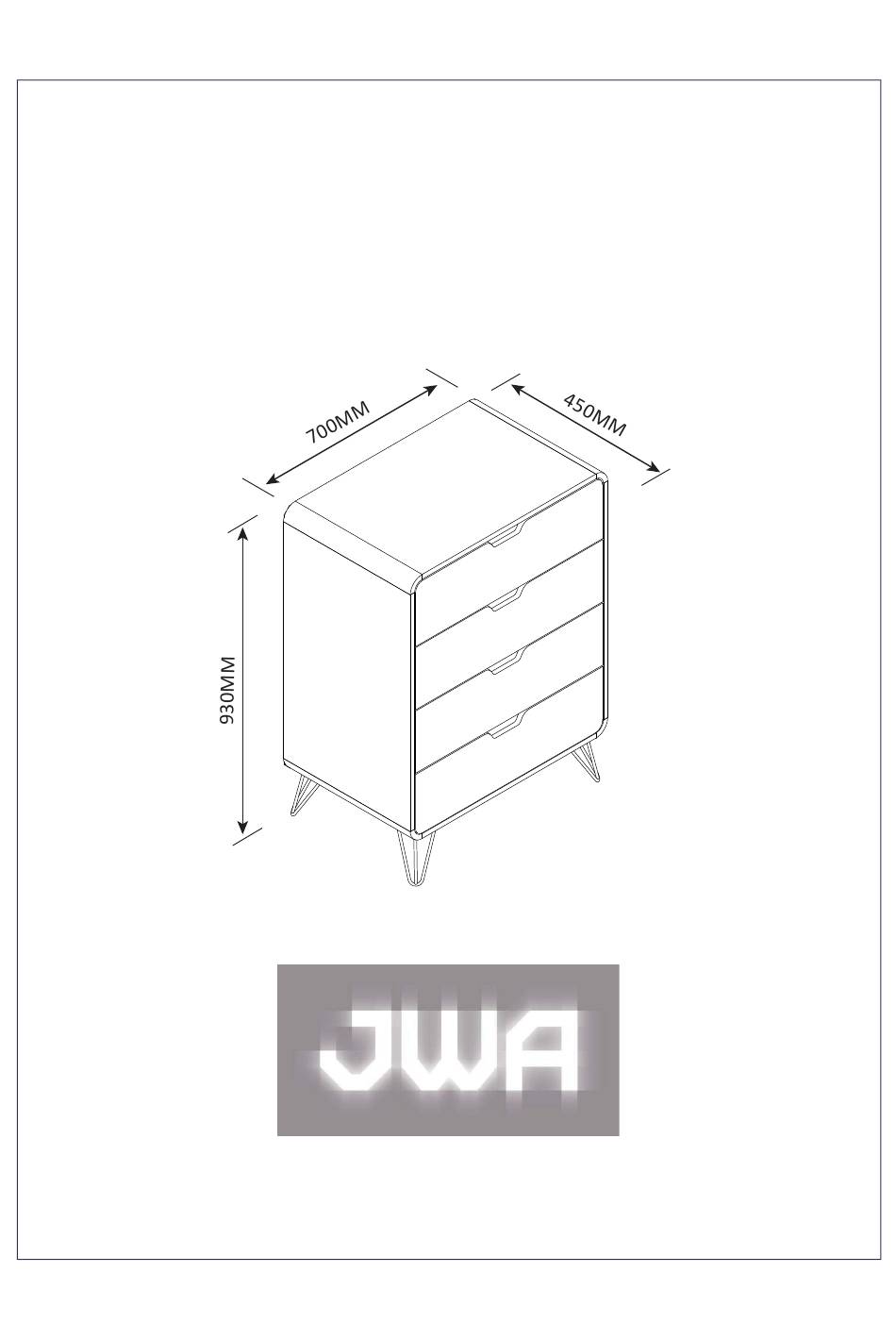

- Page 1 ASSEMBLY INSTRUCTION TALL CHEST ITEM CODE 68559 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li ing. Product should be assembled as near as possible to the point of use 3. -
Page 3: Parts List
PARTS LIST M6X39mm M15X12mm M8X30mm M3.5X14mm 24pcs 24pcs 26pcs 24pc M5X40mm M5X50mm M3X14mm 12pcs 8pcs 4pcs 20pcs M4X19mm M3X12mm 8pcs 16pcs 2pcs LEFT PANEL DRAWER SIDE RIGHT PANEL DRAWER BACK MIDDLE PANEL DRAWER BASE BOTTOM PANEL DRAWER BASE TOP PANEL DRAWER FRONT BACK PANEL DRAWER FRONT... - Page 4 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it.
- Page 5 STEP 1...
- Page 6 STEP 2 STEP 3...
- Page 7 STEP 4 STEP 5...
- Page 8 STEP 6 STEP 7...
- Page 9 STEP 8 STEP 9...
- Page 10 STEP 10 STEP 11...
- Page 11 STEP 12 ASSEMBLY COMPLETE...
- Page 12 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 13 To protect your furniture, we suggest the following: Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the nish.
