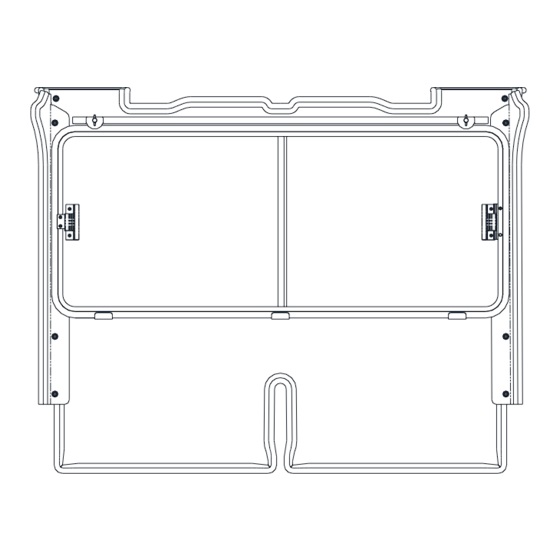

- Page 1 OWNER’S MANUAL MANUAL P/N: 77700-06973 CENTER PANEL WITH SLIDER P/N: VC5046 For use with KUBOTA RTV X1140 Rev. C, 10/03/2023 PLEASE READ THIS MANUAL CAREFULLY KEEP READY AT ALL TIMES...
-
Page 2: Introduction
INTRODUCTION This is the owner’s manual for the Center Panel with Slider kit for the Kubota RTV X1140. This manual includes installation of the center panel onto the vehicle, with the cab already installed. This kit is requires: VC5045 CAB ENCLOSURE, VC5043 or VC5044 CANOPY... -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION TABLE OF CONTENTS SAFETY INFORMATION GENERAL SAFETY INFORMATION OPERATION INSTALLATION PARTS BREAKDOWN... -
Page 4: Safety Information
SAFETY INFORMATION WARNING: This kit adds an additional 45lbs (20.4Kg) to the weight of the base vehicle. Deduct the • accessory’s total weight from the vehicle’s rated capacity including driver and passenger. Never operate the vehicle outside of its rated weight capacity. Use proper personal protective equipment during all phases of installation, removal and •... -
Page 5: General Safety Information
GENERAL SAFETY INFORMATION... - Page 6 GENERAL SAFETY INFORMATION...
-
Page 7: Operation
OPERATION CARE AND MAINTENANCE: Check and tighten hardware after 20 hours of operation. Periodically inspect and tighten hardware for the remainder of the unit’s service life. Keep the enclosure components clean in order to prevent dust and dirt from forming an unattractive film. The life of your canopy depends upon following these care procedures: 1. -
Page 8: Installation
Your machine may be configured differently (e.g. SP1 vs. SP2, etc.), but the outline for the procedure should still be followed. For further support for any issues not covered within the pages of this manual, please contact your local Kubota representative. WARNING:... - Page 9 INSTALLATION STEP 2: Upper Center Panel 2.1 Place the upper center panel in front of the upper B-pillar tabs, with the upper flanges facing to the rear (see Figure 2.1). Secure the panel to the B-pillar tabs, through the upper hole on each side of the upper panel, with 5/16-18 x 3/4”...
- Page 10 INSTALLATION STEP 4: Center Sliding Window 4.1 Rotate the retaining tabs of the upper panel entirely above the upper panel tube and tighten the thumb screws snug. 4.2 Place the center sliding window on the tabs of the lower center panel with the rubber facing rear, and the drain holes in the sliding window on the bottom (see Figure 4.2).
- Page 11 SERVICE PARTS BREAKDOWN KUBOTA RTV X1140 CENTER PANEL WITH SLIDER ITEM #: PART NUMBER: CODE NUMBER: QTY/KIT: DESCRIPTION: 77700-06962 KX40-02 WINDOW, SLIDING (CENTER PANEL RTV X1140) 77700-06963 KX40-03 PANEL, CENTER UPPER, RTV X1140 77700-06964 KX40-04 PANEL, CENTER LOWER, RTV X1140...
- Page 12 BOLT TORQUE BOLT TORQUE SPECIFICATIONS GENERAL TORQUE SPECIFICATION TABLE Use the following torques when special torques are not given. These values apply to fasteners as received from suppliers, dry, or when lubricated with normal engine oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used.
