for KUBOTA GRASS CATCHER GCK60-23BX
To avoid personal injury or death:
A Park the machine on a hard and level surface.
A Apply the parking brake.
A Stop the engine and remove the key.
B Parts List
REF. No.
PART No.
<1>
K6056-8211-0
<2>
K6056-8212-0
<3>
K6056-2186-0
<4>
02131-50100
<5>
K6056-8221-0
<6>
K6056-8222-0
<7>
05122-50840
<8>
05516-50800
<9>
01123-50820
<10>
K6056-9509-0
PRINTED IN U.S.A.

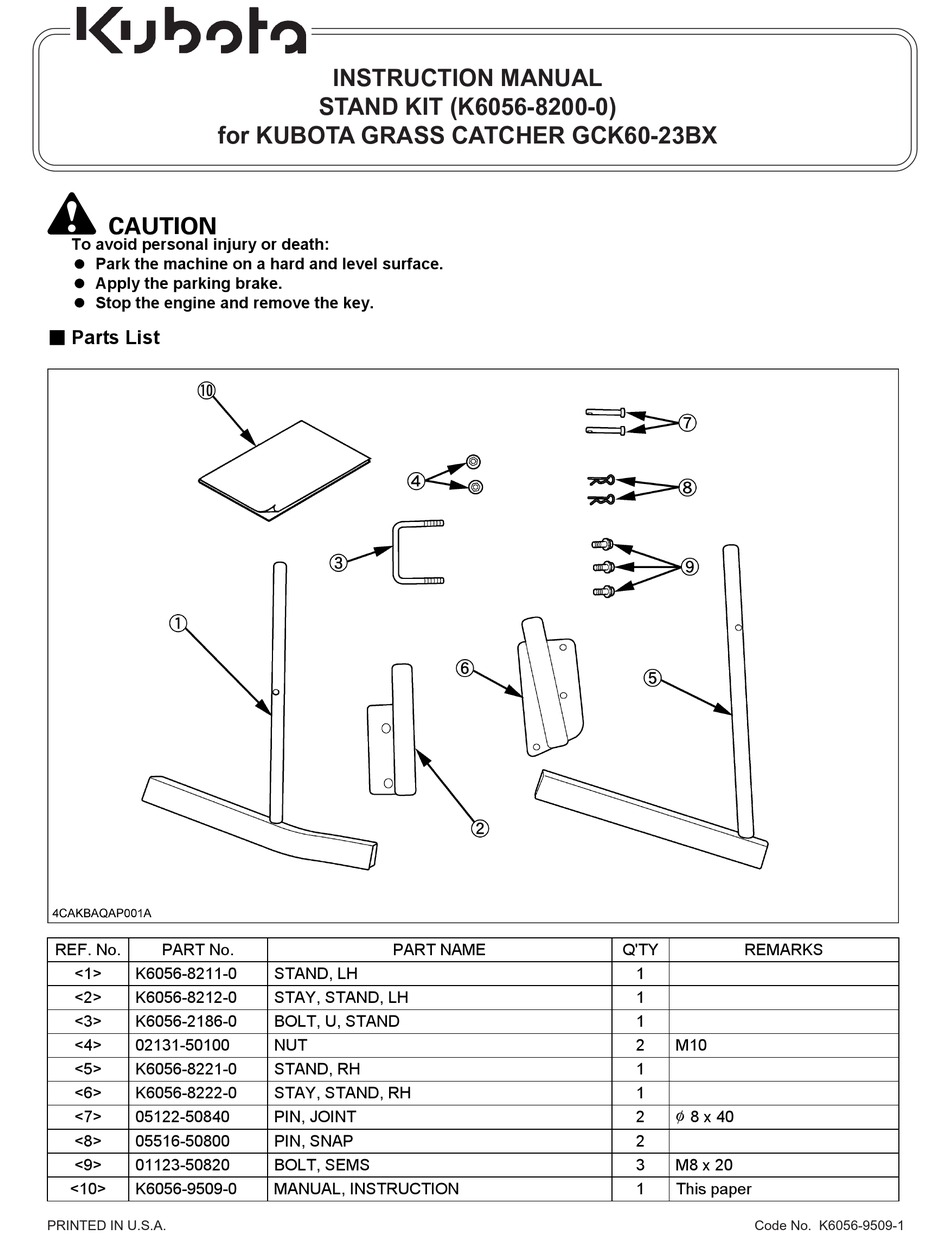

INSTRUCTION MANUAL
STAND KIT (K6056-8200-0)
PART NAME
STAND, LH
STAY, STAND, LH
BOLT, U, STAND
NUT
STAND, RH
STAY, STAND, RH
PIN, JOINT
PIN, SNAP
BOLT, SEMS
MANUAL, INSTRUCTION
Q'TY
REMARKS
1
1
1
2
M10
1
1
2
8 x 40
2
3
M8 x 20
1
This paper
Code No. K6056-9509-1
1
Advertisement
Related Manuals for Kubota K6056-8200-0
Summary of Contents for Kubota K6056-8200-0
- Page 1 INSTRUCTION MANUAL STAND KIT (K6056-8200-0) for KUBOTA GRASS CATCHER GCK60-23BX To avoid personal injury or death: A Park the machine on a hard and level surface. A Apply the parking brake. A Stop the engine and remove the key. B Parts List REF.
- Page 2 B Assembly A < > : Ref. No. of Parts List. 1. Attach the stand stay LH (1) to the rear support frame (4) with the U-bolt (2) and nuts (3). (1) Stand stay LH <2> (2) U-bolt <3> (3) Nuts <4> (4) Rear support frame...
- Page 3 2. Attach the stand stay RH (1) to the blower frame (3) 3. Attach the stand LH (1) to the stand stay LH (4) with with the bolts (2). the joint pin (2) and snap pin (3). (1) Stand stay RH <6> (1) Stand LH <1>...
- Page 4 B Directions for Use 3. Connect the top link tightly to the grass catcher. (1) Make the top link the longest length, and install it 1. Set the holes of the stands LH and RH in order to get to the rear support frame with the top link pin and the grass catcher's mount bars (1) and the tractor's lynch pin.
- Page 5 A Make sure that the left and right mount bars are tightly A When installing the universal joint, make sure that the caught by the support hooks before getting the stands hole (A) is facing up. LH and RH tucked in their storage positions. 4.
- Page 6 B Removing the Grass Catcher 6. Get the stands LH and RH (1) tucked in their storage positions. To avoid personal injury or death: A Disengage the PTO, stop the engine, remove the key, and wait for all moving parts to stop. 1.
