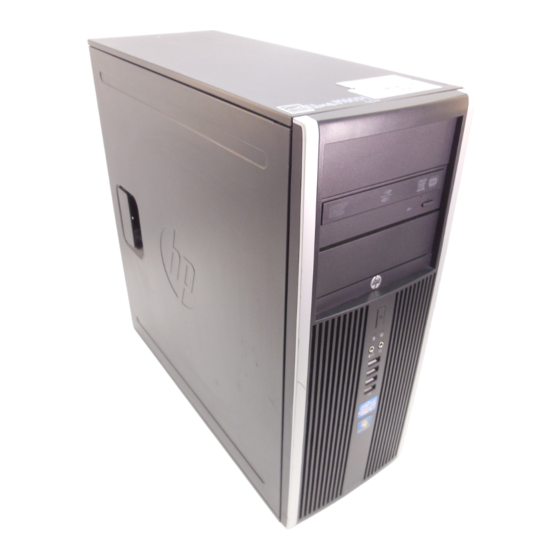

HP 6200 Pro Microtower Series Hardware Reference Manual

Hide thumbs Also See for 6200 Pro Microtower Series:
Table of Contents

Advertisement

Quick Links

HP Compaq Business PC Hardware
Reference Guide
8200 Elite Series Convertible Minitower
8200 Elite Series Microtower
8200 Elite Series Small Form Factor
8200 Elite Series Ultra-Slim Desktop
6200 Pro Series Microtower
6200 Pro Series Small Form Factor

Advertisement

Table of Contents
loading

Related Manuals for HP 6200 Pro Microtower Series

Summary of Contents for HP 6200 Pro Microtower Series

  • Page 1 HP Compaq Business PC Hardware Reference Guide 8200 Elite Series Convertible Minitower 8200 Elite Series Microtower 8200 Elite Series Small Form Factor 8200 Elite Series Ultra-Slim Desktop 6200 Pro Series Microtower 6200 Pro Series Small Form Factor...
  • Page 2 Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3 About This Book This guide provides basic information for upgrading HP Compaq Business PCs. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.
  • Page 4 About This Book ENWW...

  • Page 5: Table Of Contents

    Table of contents 1 Product Features ............................1 Standard Configuration Features ......................1 Convertible Minitower (CMT) Front Panel Components ............... 3 Microtower (MT) Front Panel Components ..................4 Small Form Factor (SFF) Front Panel Components ................5 Ultra-Slim Desktop (USDT) Front Panel Components ................. 6 Convertible Minitower (CMT) Rear Panel Components ...............
  • Page 6 Changing from a Minitower to a Desktop Configuration ..............45 Changing from a Desktop to a Minitower Configuration ..............47 Installing a Security Lock ........................50 HP/Kensington MicroSaver Security Cable Lock ............... 50 Padlock ..........................50 HP Business PC Security Lock ..................51 Front Bezel Security ......................
  • Page 7 Installing a 3.5-inch Drive into a Drive Bay ..............117 Removing and Replacing the Primary 3.5-inch Internal Hard Drive ........ 119 Installing a Security Lock ........................123 HP/Kensington MicroSaver Security Cable Lock ............. 123 Padlock ..........................123 HP Business PC Security Lock ..................124 Front Bezel Security ......................
  • Page 8 Replacing the Hard Drive ......................... 145 Installing and Removing a Port Cover ....................149 Installing a Security Lock ........................150 HP/Kensington MicroSaver Security Cable Lock ............. 150 Padlock ..........................151 HP Business PC Security Lock ..................151 Front Bezel Security ......................155 Appendix A Battery Replacement ........................

  • Page 9: Product Features

    (included on some computer models only). Figure 1-1 Convertible Minitower Configuration NOTE: The HP Compaq Convertible Minitower computer can be easily converted to a desktop. For more information, see Changing from a Minitower to a Desktop Configuration on page 45 in this guide.
  • Page 10 Figure 1-3 Small Form Factor Configuration NOTE: The Small Form Factor computer can also be used in a tower orientation. For more information, see Changing from Desktop to Tower Configuration on page 96 in this guide. Figure 1-4 Ultra-Slim Desktop Configuration Chapter 1 Product Features ENWW...

  • Page 11: Convertible Minitower (Cmt) Front Panel Components

    Convertible Minitower (CMT) Front Panel Components Drive configuration may vary by model. Some models have a bezel blank covering one or more drive bays. Figure 1-5 Front Panel Components Table 1-1 Front Panel Components 5.25-inch Optical Drives Microphone/Headphone Connector 5.25-inch Media Card Reader (optional) Power On Light Dual-State Power Button Headphone Connector...

  • Page 12: Microtower (Mt) Front Panel Components

    Microtower (MT) Front Panel Components Drive configuration may vary by model. Some models have a bezel blank covering one or more drive bays. Table 1-2 Front Panel Components 5.25-inch Optical Drives 3.5-inch Media Card Reader (optional) Hard Drive Activity Light Dual-State Power Button Microphone/Headphone Connector Power On Light...

  • Page 13: Small Form Factor (Sff) Front Panel Components

    Small Form Factor (SFF) Front Panel Components Drive configuration may vary by model. Some models have a bezel blank covering one or more drive bays. Figure 1-6 Front Panel Components Table 1-3 Front Panel Components 5.25-inch Optical Drive Microphone/Headphone Connector Dual-State Power Button 3.5-inch Media Card Reader (optional) Power On Light...

  • Page 14: Ultra-Slim Desktop (Usdt) Front Panel Components

    Ultra-Slim Desktop (USDT) Front Panel Components Drive configuration may vary by model. Some models have a bezel blank covering the optical drive bay. Figure 1-7 Front Panel Components Table 1-4 Front Panel Components Optical Drive Microphone/Headphone Connector Power On Light USB (Universal Serial Bus) Ports SD Media Card Reader (optional) Hard Drive Activity Light...

  • Page 15: Convertible Minitower (Cmt) Rear Panel Components

    RJ-45 Network Connector NOTE: An optional second serial port and an optional parallel port are available from HP. When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone.

  • Page 16: Microtower (Mt) Rear Panel Components

    Universal Serial Bus (USB) ports NOTE: An optional second serial port and an optional parallel port are available from HP. When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone.

  • Page 17: Small Form Factor (Sff) Rear Panel Components

    Line-In Audio Connector (blue) NOTE: An optional second serial port and an optional parallel port are available from HP. When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone.

  • Page 18: Ultra-Slim Desktop (Usdt) Rear Panel Components

    Ultra-Slim Desktop (USDT) Rear Panel Components Figure 1-11 Rear Panel Components Table 1-7 Rear Panel Components Line-Out Connector for powered audio Power Cord Connector devices (green) PS/2 Keyboard Connector (purple) TV Tuner (optional) Universal Serial Bus (USB) ports Line-In Audio Connector (blue) DisplayPort Monitor Connector PS/2 Mouse Connector (green) VGA Monitor Connector...

  • Page 19: Media Card Reader Components

    Media Card Reader Components The media card reader is an optional device available on some models only. Refer to the following illustration and table to identify the media card reader components. Figure 1-12 Media Card Reader Components Table 1-8 Media Card Reader Components Slot Media ●...

  • Page 20: Keyboard

    Keyboard Figure 1-13 Keyboard Components Table 1-9 Keyboard Components Function Keys Perform special functions depending on the software application being used. Editing Keys Includes the following: Insert, Home, Page Up, Delete, End, and Page Down. Status Lights Indicate the status of the computer and keyboard settings (Num Lock, Caps Lock, and Scroll Lock).

  • Page 21: Using The Windows Logo Key

    Using the Windows Logo Key Use the Windows Logo key in combination with other keys to perform certain functions available in the Windows operating system. Refer to Keyboard on page 12 to identify the Windows Logo key. Table 1-10 Windows Logo Key Functions The following Windows Logo Key functions are available in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7.

  • Page 22: Serial Number Location

    Table 1-10 Windows Logo Key Functions (continued) Windows Logo Key + right arrow Snaps the window to the right side of the screen Windows Logo Key + down arrow Minimizes the window Windows Logo Key + Shift up arrow Stretches the window to the top and bottom of the screen Windows Logo Key + Shift left arrow...
  • Page 23 Figure 1-15 Microtower Serial Number and Product ID Location Figure 1-16 Small Form Factor Serial Number and Product ID Location ENWW Serial Number Location...
  • Page 24 Figure 1-17 Ultra-Slim Desktop (USDT) Serial Number and Product ID Location Chapter 1 Product Features ENWW...

  • Page 25: Convertible Minitower (Cmt) Hardware Upgrades

    To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo. WARNING! Energized and moving parts inside.

  • Page 26: Removing The Computer Access Panel

    Removing the Computer Access Panel To access internal components, you must remove the access panel: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 27: Replacing The Computer Access Panel

    Replacing the Computer Access Panel Slide the lip on the front end of the access panel under the lip on the front of the chassis (1) then press the back end of the access panel onto the unit so that it locks into place (2). Figure 2-2 Replacing the Computer Access Panel ENWW...

  • Page 28: Removing The Front Bezel

    Removing the Front Bezel Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 29: Removing Bezel Blanks

    Removing Bezel Blanks On some models, there are bezel blanks covering the 5.25-inch drive bays that need to be removed before installing a drive. To remove a bezel blank: Remove the access panel and front bezel. Gently pull the subpanel, with the bezel blanks secured in it, away from the front bezel, then remove the desired bezel blank.

  • Page 30: Replacing The Front Bezel

    Replacing the Front Bezel Insert the three hooks on the bottom side of the bezel into the rectangular holes on the chassis (1) then rotate the top side of the bezel onto the chassis (2) and snap it into place. Figure 2-5 Replacing the Front Bezel Chapter 2 Convertible Minitower (CMT) Hardware Upgrades...

  • Page 31: System Board Connections

    System Board Connections Refer to the following illustration and table to identify the system board connectors. Figure 2-6 System Board Connections Table 2-1 System Board Connections System Board Connector System Board Label Color Component PCI3 white Expansion Card PCI2 white Expansion Card PCI1 white...

  • Page 32: Installing Additional Memory

    Table 2-1 System Board Connections (continued) System Board Connector System Board Label Color Component MEDIA2 black USB Device, such as a Media Card Reader SATA 2.0 SATA2 white 3rd Hard Drive, or 1st Optical Drive if no 3rd Hard Drive SATA 3.0 SATA0 dark blue...

  • Page 33: Populating Dimm Sockets

    In addition, the computer supports: ● 512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies ● single-sided and double-sided DIMMs ● DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not supported NOTE: The system will not operate properly if you install unsupported DIMMs. Populating DIMM Sockets There are four DIMM sockets on the system board, with two sockets per channel.

  • Page 34: Installing Dimms

    Installing DIMMs CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.
  • Page 35 Open both latches of the memory module socket (1), and insert the memory module into the socket (2). Figure 2-7 Installing a DIMM NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket.

  • Page 36: Removing Or Installing An Expansion Card

    Removing or Installing an Expansion Card The computer has three standard full-height PCI expansion slots, one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and one PCI Express x16 expansion slot that is downshifted to a x4 slot. NOTE: You can install a PCI Express x1, x8, or x16 expansion card in the PCI Express x16 slots.
  • Page 37 NOTE: Before removing an installed expansion card, disconnect any cables that may be attached to the expansion card. If you are installing an expansion card in a vacant socket, remove the appropriate expansion slot cover on the back of the chassis. Lift the expansion slot cover from the expansion slot.
  • Page 38 If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Lift the card straight up to remove it. Be sure not to scrape the card against other components.
  • Page 39 To install a new expansion card, slide the bracket on the end of the card down into the slot on the back of the chassis and press the card down firmly into the socket on the system board. Figure 2-12 Installing an Expansion Card NOTE: When installing an expansion card, press firmly on the card so that the whole...

  • Page 40: Drive Positions

    Drive Positions Figure 2-13 Drive Positions (Minitower Configuration Shown) Table 2-2 Drive Positions Three 5.25-inch drive bays for optional drives (optical drives and media card reader shown) Three 3.5-inch internal hard drive bays NOTE: The drive configuration on your computer may be different than the drive configuration shown above. The bottom 5.25-inch drive bay has a shorter depth than the upper two bays.

  • Page 41: Removing A Drive From A Drive Bay

    Removing a Drive from a Drive Bay CAUTION: All removable media should be taken out of a drive before removing the drive from the computer. Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices.
  • Page 42 ● If you are removing a media card reader, disconnect the USB cable from the system board. Figure 2-15 Disconnecting the Media Card Reader USB Cable ● If you are removing a hard drive, disconnect the power cable (1) and data cable (2) from the back of the drive.
  • Page 43 Remove the drive from the drive bay as follows: ● To remove a 5.25-inch drive in the desktop configuration, press down on the yellow drivelock mechanism (1) and slide the drive from the drive bay (2). CAUTION: When the yellow drivelock is pressed, all the 5.25-inch drives are released so do not tilt the unit and allow the drives to fall out.
  • Page 44 ● To remove a hard drive from one of the two lower internal hard drive bays, pull up on the green hard drive drivelock mechanism (1) for that drive and slide the drive from the drive bay (2). Figure 2-19 Removing a Hard Drive from the Lower Two Bays ●...

  • Page 45: Installing Drives

    You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws installed on the chassis. The hard drive uses 6-32 isolation mounting guide screws in the lower two bays and standard 6-32 screws in the upper bay.

  • Page 46: Installing A 5.25-Inch Drive Into A Drive Bay

    Guide Screw Device Black M3 Metric Screws 5.25-inch Drives Silver 6-32 Standard Screws 3.5-inch Hard Drive in the Top Drive Bay (Bay 4) Silver and Blue 6-32 Isolation Mounting Screws 3.5-inch Hard Drives in the Middle and Bottom Drive Bays (Bays 5 and 6) CAUTION: To prevent loss of work and damage to the computer or drive:...
  • Page 47 Install four M3 metric guide screws in the lower holes on each side of the drive (1). HP has provided four extra M3 metric guide screws on the 5.25-inch drive bracket under the access panel. The M3 metric guide screws are black. Refer to...
  • Page 48 Connect the power and data cables to the drive as indicated in the following illustrations. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back of the drive. NOTE: The power cable for the optical drives is a two-headed cable that is routed from the system board to the rear of the optical drive bays.

  • Page 49: Installing A Hard Drive Into An Internal Drive Bay

    Replace the front bezel and computer access panel. Reconnect the power cord and turn on the computer. Lock any security devices that were disengaged when the computer access panel was removed. Installing a Hard Drive into an Internal Drive Bay NOTE: The system does not support Parallel ATA (PATA) hard drives.
  • Page 50 ● If you are installing a 2.5-inch hard drive into either of the lower two bays (bays 5 and 6), do the following: ◦ Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket (two on each side of the bracket). Figure 2-26 Installing Isolation Mounting Guide Screws in the 2.5-inch Adapter Bracket...
  • Page 51 ◦ Hold the drive and bracket firmly together and turn the assembly over. Install four M3 screws to secure the drive to the bracket. Figure 2-28 Securing the Drive in the Adapter Bracket ● If you are installing the drive in the upper bay (bay 4), install three standard 6-32 silver guide screws (two on the right side and one on the left side in the screw hole closest to the power and data connectors).
  • Page 52 CAUTION: Make sure the guide screws line up with the guide slots in the drive cage. The use of unnecessary force when installing any drive into the drive bay may result in damage to the drive. ● If you are installing a hard drive into one of the lower two bays (bays 5 and 6), slide the hard drive into the drive bay until it locks.

  • Page 53: Changing From A Minitower To A Desktop Configuration

    Connect the power cable (1) and data cable (2) to the rear of the hard drive. NOTE: The power cable for the hard drives is a three-headed cable that is routed from the system board to the rear of the hard drive bays. Figure 2-32 Connecting the Power Cable and Data Cable to a SATA Hard Drive Connect the opposite end of the data cable to the appropriate system board connector.
  • Page 54 To release the drives from the 5.25-inch drive bay, lift the release tab on the green latch drive bracket for the drive (1). While lifting the release tab, slide the drive from its drive bay (2). Repeat this step for each 5.25-inch drive. Figure 2-33 Releasing the 5.25-inch Drives from the Drive Bays (Minitower) Gently slide the drive into the uppermost available bay until it snaps into place.

  • Page 55: Changing From A Desktop To A Minitower Configuration

    CAUTION: Hold the subpanel straight when you pull it away from the front bezel. Pulling the subpanel away at an angle could damage the pins that align it within the front bezel. Reposition the bezel blanks within the subpanel in the proper orientation for the desktop configuration.
  • Page 56 To release the drives from the 5.25-inch drive bay, press down on the short yellow drivelock as shown (1). While pressing the drivelock, pull the drives out of the drive bay (2). Figure 2-36 Releasing the 5.25-inch Drives from the Drive Bays (Desktop) Gently slide the drive into the uppermost available bay until it snaps into place.
  • Page 57 Reposition the bezel blanks within the subpanel in the proper orientation for the minitower configuration. Reposition the subpanel (rotate it 90º) with the logo at the bottom, then snap it back into the bezel. Figure 2-38 Changing from a Desktop to a Minitower Configuration Replace the front bezel and computer access panel.

  • Page 58: Installing A Security Lock

    Installing a Security Lock The security locks displayed below and on the following page can be used to secure the computer. HP/Kensington MicroSaver Security Cable Lock Figure 2-39 Installing a Cable Lock Padlock Figure 2-40 Installing a Padlock Chapter 2 Convertible Minitower (CMT) Hardware Upgrades...

  • Page 59: Hp Business Pc Security Lock

    HP Business PC Security Lock Fasten the security cable by looping it around a stationary object. Figure 2-41 Securing the Cable to a Fixed Object Insert the Kensington lock into the Kensington lock slot on the back of the monitor and secure the lock to the monitor by inserting the key into the key hole on the rear of the lock and rotating the key 90 degrees.
  • Page 60 Slide the security cable through the hole in the Kensington lock on the rear of the monitor. Figure 2-43 Securing the Monitor Use the bracket provided in the kit to secure other peripheral devices by laying the device cable across the center of the bracket (1) and inserting the security cable through one of the two holes in the bracket (2).
  • Page 61 Thread the keyboard and mouse cables through the computer chassis lock. Figure 2-45 Threading the Keyboard and Mouse Cables Screw the lock to the chassis in the thumbscrew hole using the screw provided. Figure 2-46 Attaching the Lock to the Chassis ENWW Installing a Security Lock...
  • Page 62 Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the lock. Use the key provided to disengage the lock. Figure 2-47 Engaging the Lock When complete, all devices in your workstation will be secured. Figure 2-48 Secured Workstation Chapter 2 Convertible Minitower (CMT) Hardware Upgrades...

  • Page 63: Front Bezel Security

    Front Bezel Security The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer.
  • Page 64 Install the screw through the interior of the front of the chassis into the front bezel. The screw hole is located on the left edge of the chassis next to the top hard drive bay. Figure 2-50 Installing the Front Bezel Security Screw Replace the access panel.

  • Page 65: Microtower (Mt) Hardware Upgrades

    To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo. WARNING! Energized and moving parts inside.

  • Page 66: Removing The Computer Access Panel

    Removing the Computer Access Panel To access internal components, you must remove the access panel: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 67: Replacing The Computer Access Panel

    Replacing the Computer Access Panel Slide the lip on the front end of the access panel under the lip on the front of the chassis (1) then press the back end of the access panel onto the unit (2). Figure 3-2 Replacing the Computer Access Panel Ensure that the panel is completely closed (1) and tighten the two thumbscrews that secure the access panel to the chassis (2).

  • Page 68: Removing The Front Bezel

    Removing the Front Bezel Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 69: Removing Bezel Blanks

    Removing Bezel Blanks On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch drive bays that need to be removed before installing a drive. To remove a bezel blank: Remove the access panel and front bezel. To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it (2).

  • Page 70: System Board Connections

    System Board Connections Refer to the following illustrations and tables to identify the system board connectors for your model. Figure 3-7 8200 Elite Series System Board Connections Table 3-1 8200 Elite Series System Board Connections System Board Connector System Board Label Color Component DIMM4 (Channel A)
  • Page 71 Table 3-1 8200 Elite Series System Board Connections (continued) System Board Connector System Board Label Color Component PCI Express x16 downshifted X4PCIEXP white Expansion Card to a x4 PCI Express x16 X16PCIEXP black Expansion Card white Expansion Card Figure 3-8 6200 Pro Series System Board Connections Table 3-2 6200 Pro Series System Board Connections...

  • Page 72: Installing Additional Memory

    Table 3-2 6200 Pro Series System Board Connections (continued) System Board Connector System Board Label Color Component MEDIA2 black USB Device, such as a Media Card Reader Hood Sensor HSENSE white Hood Sensor PCI Express x1 X1PCIEXP1 black Expansion Card PCI Express x1 X4PCIEXP black...

  • Page 73: Populating Dimm Sockets

    NOTE: The system will not operate properly if you install unsupported DIMMs. Populating DIMM Sockets There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B.
  • Page 74 Disconnect the power cord from the power outlet and disconnect any external devices. CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet.

  • Page 75: Removing Or Installing An Expansion Card

    Removing or Installing an Expansion Card The 8200 Elite computer has one PCI expansion slot, one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and one PCI Express x16 expansion slot that is downshifted to a x4 slot. The 6200 Pro computer has one PCI expansion slot, two PCI Express x1 expansion slots, and one PCI Express x16 expansion slot.
  • Page 76 NOTE: Before removing an installed expansion card, disconnect any cables that may be attached to the expansion card. If you are installing an expansion card in a vacant socket, remove the appropriate expansion slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside of the chassis.
  • Page 77 If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket then away from the inside of the chassis to release it from the chassis frame.
  • Page 78 To install a new expansion card, hold the card just above the expansion socket on the system board then move the card toward the rear of the chassis so that the bracket on the card is aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion socket on the system board.

  • Page 79: Drive Positions

    Lock any security devices that were disengaged when the access panel was removed. Reconfigure the computer, if necessary. Drive Positions Figure 3-16 Drive Positions Table 3-3 Drive Positions Two 5.25-inch drive bays for optional drives (optical drives shown) One 3.5-inch drive bay for optional drive (media card reader shown) Secondary 3.5-inch internal hard drive bay for optional hard drive Primary 3.5-inch internal hard drive bay NOTE:...

  • Page 80: Installing And Removing Drives

    You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws for the drive bays (four 6-32 isolation mounting guide screws and eight M3 metric guide screws), installed on the side of the drive bays. The 6-32 isolation mounting screws are required for a secondary hard drive.
  • Page 81 drive, you must remove the four silver and blue 6-32 isolation mounting guide screws from the old hard drive and install them in the new hard drive. Figure 3-17 Extra Guide Screw Locations Guide Screw Device Black M3 Metric Screws All Drives (except hard drives) Silver and Blue 6-32 Isolation Mounting Screws Secondary Hard Drive...

  • Page 82: Removing A 5.25-Inch Or 3.5-Inch Drive From A Drive Bay

    Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay CAUTION: All removable media should be taken out of a drive before removing the drive from the computer. Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices.
  • Page 83 If you are removing a media card reader, disconnect the USB cable from the system board. Figure 3-19 Disconnecting the Media Card Reader USB Cable A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay (2).

  • Page 84: Installing A 5.25-Inch Or 3.5-Inch Drive Into A Drive Bay

    Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided eight extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric guide screws are black.
  • Page 85 Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until the drive snaps into place. Figure 3-22 Sliding the Drives into the Drive Cage Connect the power and data cables to the drive as indicated in the following illustrations. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back of the drive.
  • Page 86 If your are installing a media card reader, connect the USB cable to the USB system board connector labeled MEDIA. Figure 3-24 Connecting the Media Card Reader USB Cable If installing a new drive, connect the opposite end of the data cable to the appropriate system board connector.

  • Page 87: Removing A Hard Drive From A Drive Bay

    Removing a Hard Drive from a Drive Bay NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive. Remove/disengage any security devices that prohibit opening the computer.

  • Page 88: Installing A Hard Drive Into An Internal Drive Bay

    Release the drive by pulling the release tab away from the drive (1) and sliding the drive out of the bay (2). Figure 3-26 Removing a Hard Drive Remove the four guide screws (two on each side) from the old drive. You will need these screws to install a new drive.
  • Page 89 NOTE: The hard drive uses 6-32 isolation mounting guide screws. Four extra guide screws are installed on the exterior of the hard drive bays. The HP-supplied isolation mounting guide screws are silver and blue. Refer to Installing and Removing Drives on page 72 for an illustration of the extra 6-32 isolation mounting guide screws location.
  • Page 90 ◦ Hold the drive and bracket firmly together and turn the assembly over. Install four M3 screws to secure the drive to the bracket. Figure 3-30 Securing the Drive in the Adapter Bracket Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until the drive snaps into place.
  • Page 91 Connect the power cable (1) and data cable (2) to the back of the hard drive. NOTE: The power cable for the hard drives is a two-headed cable that is routed from the system board to the rear of the hard drive bays. Figure 3-32 Connecting the Hard Drive Cables If installing a new drive, connect the opposite end of the data cable to the appropriate system...

  • Page 92: Installing A Security Lock

    Installing a Security Lock The security locks displayed below and on the following pages can be used to secure the computer. HP/Kensington MicroSaver Security Cable Lock Figure 3-33 Installing a Cable Lock Padlock Figure 3-34 Installing a Padlock Chapter 3 Microtower (MT) Hardware Upgrades...

  • Page 93: Hp Business Pc Security Lock

    HP Business PC Security Lock Fasten the security cable by looping it around a stationary object. Figure 3-35 Securing the Cable to a Fixed Object Insert the Kensington lock into the Kensington lock slot on the back of the monitor and secure the lock to the monitor by inserting the key into the key hole on the rear of the lock and rotating the key 90 degrees.
  • Page 94 Slide the security cable through the hole in the Kensington lock on the rear of the monitor. Figure 3-37 Securing the Monitor Use the bracket provided in the kit to secure other peripheral devices by laying the device cable across the center of the bracket (1) and inserting the security cable through one of the two holes in the bracket (2).
  • Page 95 Thread the keyboard and mouse cables through the computer chassis lock. Figure 3-39 Threading the Keyboard and Mouse Cables Screw the lock to the chassis in the thumbscrew hole using the screw provided. Figure 3-40 Attaching the Lock to the Chassis ENWW Installing a Security Lock...
  • Page 96 Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the lock. Use the key provided to disengage the lock. Figure 3-41 Engaging the Lock When complete, all devices in your workstation will be secured. Figure 3-42 Secured Workstation Chapter 3 Microtower (MT) Hardware Upgrades...

  • Page 97: Front Bezel Security

    Front Bezel Security The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer.
  • Page 98 Install the screw through the interior of the front of the chassis into the front bezel. The screw hole is located toward the middle of the right edge of the chassis between the hard drive bay and speaker. Figure 3-44 Installing the Front Bezel Security Screw Replace the access panel.

  • Page 99: Small Form Factor (Sff) Hardware Upgrades

    To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo. WARNING! Energized and moving parts inside.

  • Page 100: Removing The Computer Access Panel

    Removing the Computer Access Panel To access internal components, you must remove the access panel: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 101: Replacing The Computer Access Panel

    Replacing the Computer Access Panel Slide the lip on the front end of the access panel under the lip on the front of the chassis (1) then press the back end of the access panel onto the unit so that it locks into place (2). Figure 4-2 Replacing the Computer Access Panel ENWW...

  • Page 102: Removing The Front Bezel

    Removing the Front Bezel Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 103: Removing Bezel Blanks

    Removing Bezel Blanks On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch drive bays that need to be removed before installing a drive. To remove a bezel blank: Remove the access panel and front bezel. To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it (2).

  • Page 104: Changing From Desktop To Tower Configuration

    Figure 4-6 Changing from Desktop to Tower Orientation NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the optional tower stand. Reconnect the power cord and any external devices, then turn on the computer. NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer...

  • Page 105: System Board Connections

    System Board Connections Refer to the following illustration and table to identify the system board connectors for your model. Figure 4-7 8200 Elite Series System Board Connections Table 4-1 8200 Elite Series System Board Connections System Board Connector System Board Label Color Component DIMM4 (Channel A)
  • Page 106 Table 4-1 8200 Elite Series System Board Connections (continued) System Board Connector System Board Label Color Component PCI Express x16 downshifted X4PCIEXP white Expansion Card to a x4 PCI Express x16 X16PCIEXP black Expansion Card white Expansion Card Figure 4-8 6200 Pro Series System Board Connections Table 4-2 6200 Pro Series System Board Connections...

  • Page 107: Installing Additional Memory

    Table 4-2 6200 Pro Series System Board Connections (continued) System Board Connector System Board Label Color Component MEDIA2 black USB Device, such as a Media Card Reader Hood Sensor HSENSE white Hood Sensor PCI Express x1 X1PCIEXP1 black Expansion Card PCI Express x1 X4PCIEXP black...

  • Page 108: Populating Dimm Sockets

    NOTE: The system will not operate properly if you install unsupported DIMMs. Populating DIMM Sockets There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B.
  • Page 109 Disconnect the power cord from the power outlet and disconnect any external devices. CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
  • Page 110 Open both latches of the memory module socket (1), and insert the memory module into the socket (2). Figure 4-10 Installing a DIMM NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket.

  • Page 111: Removing Or Installing An Expansion Card

    Removing or Installing an Expansion Card The 8200 Elite computer has one PCI expansion slot, one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and one PCI Express x16 expansion slot that is downshifted to a x4 slot. The 6200 Pro computer has one PCI expansion slot, two PCI Express x1 expansion slots, and one PCI Express x16 expansion slot.
  • Page 112 Before installing an expansion card, remove the expansion slot cover or the existing expansion card. NOTE: Before removing an installed expansion card, disconnect any cables that may be attached to the expansion card. If you are installing an expansion card in a vacant socket, remove the appropriate expansion slot cover on the back of the chassis.
  • Page 113 If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket then away from the inside of the chassis to release it from the chassis frame.
  • Page 114 To install a new expansion card, hold the card just above the expansion socket on the system board then move the card toward the rear of the chassis (1) so that the bracket on the card is aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion socket on the system board (2).

  • Page 115: Drive Positions

    Lock any security devices that were disengaged when the access panel was removed. Reconfigure the computer, if necessary. Drive Positions Figure 4-17 Drive Positions Table 4-3 Drive Positions 3.5-inch internal hard drive bay 3.5-inch drive bay for optional drives (media card reader shown) 5.25-inch drive bay for optional drives (optical drive shown) NOTE: The drive configuration on your computer may be different than the drive...

  • Page 116: Installing And Removing Drives

    You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws for the drive bays (five 6-32 standard screws and four M3 metric screws), installed in the front of the chassis, under the front bezel. The 6-32 standard screws are required for a secondary hard drive.
  • Page 117 CAUTION: To prevent loss of work and damage to the computer or drive: If you are inserting or removing a drive, shut down the operating system properly, turn off the computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.

  • Page 118: Removing A 5.25-Inch Drive From A Drive Bay

    Removing a 5.25-inch Drive from a Drive Bay CAUTION: All removable media should be taken out of a drive before removing the drive from the computer. Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices.
  • Page 119 If removing an optical drive, disconnect the power cable (1) and data cable (2) from the rear of the optical drive. CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid damaging the cable. Figure 4-20 Disconnecting the Power and Data Cables Rotate the drive cage back down to its normal position.

  • Page 120: Installing A 5.25-Inch Drive Into A Drive Bay

    Press down on the green drive retainer button located on the left side of the drive to disengage the drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it stops, then lift it up and out of the drive cage (2). Figure 4-22 Removing the 5.25-inch Drive Installing a 5.25-inch Drive into a Drive Bay...
  • Page 121 Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric guide screws are black. Refer to...
  • Page 122 Rotate the drive cage to its upright position. Figure 4-25 Rotating the Drive Cage Up Connect the SATA data cable to the white SATA system board connector labeled SATA2. Route the data cable through the cable guides. CAUTION: There are two cable guides that keep the data cable from being pinched by the drive cage when raising or lowering it.

  • Page 123: Removing A 3.5-Inch Drive From A Drive Bay

    Rotate the drive cage back down to its normal position. CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down. Figure 4-27 Rotating the Drive Cage Down Replace the front bezel (if removed) and access panel. If the computer was on a stand, replace the stand.
  • Page 124 Disconnect the drive cables from the rear of the drive, or, if you are removing a media card reader, disconnect the USB cable from the system board as indicated in the following illustration. Figure 4-28 Disconnecting the Media Card Reader USB Cable Press down on the green drive retainer button located on the left side of the drive to disengage the drive from the drive cage (1).

  • Page 125: Installing A 3.5-Inch Drive Into A Drive Bay

    Install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws for the drive bays (four 6-32 standard screws and four M3 metric screws), installed in the front of the chassis, under the front bezel. A secondary hard drive uses 6-32 standard screws.
  • Page 126 Connect the appropriate drive cables: If installing a second hard drive, connect the power cable (1) and data cable (2) to the rear of the drive and connect the other end of the data cable to the light blue connector (8200 Elite models) or the white connector (6200 Pro models) on the system board labeled SATA1.

  • Page 127: Removing And Replacing The Primary 3.5-Inch Internal Hard Drive

    Reconnect the power cord and turn on the computer. Lock any security devices that were disengaged when the access panel was removed. Removing and Replacing the Primary 3.5-inch Internal Hard Drive NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive.
  • Page 128 Rotate the power supply to its upright position. The hard drive is located beneath the power supply. Figure 4-35 Raising the Power Supply Disconnect the power cable (1) and data cable (2) from the back of the hard drive. Figure 4-36 Disconnecting the Hard Drive Cables 120 Chapter 4 Small Form Factor (SFF) Hardware Upgrades ENWW...
  • Page 129 Press down on the green release latch next to the hard drive (1). While holding the latch down, slide the drive forward until it stops, then lift the drive up and out of the bay (2). Figure 4-37 Removing the Hard Drive To install a hard drive, you must transfer the silver and blue isolation mounting guide screws from the old hard drive to the new hard drive.
  • Page 130 Align the guide screws with the slots on the chassis drive cage, press the hard drive down into the bay, then slide it back until it stops and locks in place. Figure 4-39 Installing the Hard Drive Connect the power cable (1) and data cable (2) to the back of the hard drive. NOTE: If the system has only one SATA hard drive, the data cable must be connected to the dark blue connector labeled SATA0 on the system board to avoid any hard drive performance...

  • Page 131: Installing A Security Lock

    Installing a Security Lock The security locks displayed below and on the following pages can be used to secure the computer. HP/Kensington MicroSaver Security Cable Lock Figure 4-41 Installing a Cable Lock Padlock Figure 4-42 Installing a Padlock ENWW Installing a Security Lock 123...

  • Page 132: Hp Business Pc Security Lock

    HP Business PC Security Lock Fasten the security cable by looping it around a stationary object. Figure 4-43 Securing the Cable to a Fixed Object Insert the Kensington lock into the Kensington lock slot on the back of the monitor and secure the lock to the monitor by inserting the key into the key hole on the rear of the lock and rotating the key 90 degrees.
  • Page 133 Slide the security cable through the hole in the Kensington lock on the rear of the monitor. Figure 4-45 Securing the Monitor Use the bracket provided in the kit to secure other peripheral devices by laying the device cable across the center of the bracket (1) and inserting the security cable through one of the two holes in the bracket (2).
  • Page 134 Thread the keyboard and mouse cables through the computer chassis lock. Figure 4-47 Threading the Keyboard and Mouse Cables Screw the lock to the chassis in the thumbscrew hole using the screw provided. Figure 4-48 Attaching the Lock to the Chassis 126 Chapter 4 Small Form Factor (SFF) Hardware Upgrades ENWW...
  • Page 135 Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the lock. Use the key provided to disengage the lock. Figure 4-49 Engaging the Lock When complete, all devices in your workstation will be secured. Figure 4-50 Secured Workstation ENWW...

  • Page 136: Front Bezel Security

    Front Bezel Security The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer.
  • Page 137 Install the security screw next to the middle front bezel release tab to secure the front bezel in place. Figure 4-52 Installing the Front Bezel Security Screw Replace the access panel. If the computer was on a stand, replace the stand. Reconnect the power cord and turn on the computer.

  • Page 138: Ultra-Slim Desktop (Usdt) Hardware Upgrades

    To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo. WARNING! Energized and moving parts inside.

  • Page 139: Connecting The Power Cord

    Connecting the Power Cord When connecting the power supply, it is important to follow the steps below to ensure the power cord does not pull free from the computer. Connect the round end of the power cord to the power supply connector on the rear of the computer (1).

  • Page 140: Removing The Computer Access Panel

    Removing the Computer Access Panel To access internal components, you must remove the access panel: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 141: Replacing The Computer Access Panel

    Replacing the Computer Access Panel Align the tabs on the panel with the slots on the chassis then slide the panel towards the front of the chassis until it stops (1). Tighten the thumbscrew to secure the access panel (2). Figure 5-3 Replacing the Computer Access Panel ENWW...

  • Page 142: Removing The Front Bezel

    Removing the Front Bezel Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices. Disconnect the power cord from the power outlet and disconnect any external devices.

  • Page 143: Removing A Bezel Blank

    Removing a Bezel Blank On some models, there is a bezel blank covering the internal drive bay that needs to be removed before installing a drive. To remove a bezel blank: Remove the access panel and front bezel. To remove the bezel blank, push the two retaining tabs that hold the bezel blank in place towards the outer left edge of the bezel (1) and pull the bezel blank inwards to remove it (2).

  • Page 144: Changing From Desktop To Tower Configuration

    Lock any security devices that were disengaged when the computer cover or access panel was removed. NOTE: An optional Quick Release mounting bracket is available from HP for mounting the computer to a wall, desk, or swing arm. 136 Chapter 5 Ultra-Slim Desktop (USDT) Hardware Upgrades...

  • Page 145: System Board Connections

    System Board Connections Refer to the following illustration and table to identify the system board connectors. Figure 5-8 System Board Connections System Board Connector System Board Label Color Component SATA 3.0 SATA1 light blue Optical Drive Power SATA PWR1 white Optical Drive Mobile PCI Express Module black...

  • Page 146: Installing Additional Memory

    Installing Additional Memory The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3- SDRAM) small outline dual inline memory modules (SODIMMs). SODIMMs The memory sockets on the system board can be populated with up to two industry-standard SODIMMs.

  • Page 147: Populating Sodimm Sockets

    Populating SODIMM Sockets There are two SODIMM sockets on the system board, with one socket per channel. The sockets are labeled XMM1 and XMM3. The XMM1 socket operates in memory channel A. The XMM3 socket operates in memory channel B. Figure 5-9 SODIMM Socket Locations Table 5-1...

  • Page 148: Installing Sodimms

    Installing SODIMMs CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.
  • Page 149 To remove a SODIMM, press outward on the two latches on each side of the SODIMM (1) then pull the SODIMM out of the socket (2). Figure 5-10 Removing a SODIMM Slide the new SODIMM into the socket at approximately a 30° angle (1) then press the SODIMM down (2) so that the latches lock it in place.

  • Page 150: Replacing The Optical Drive

    The computer automatically recognizes the additional memory when you turn on the computer. Replacing the Optical Drive The Ultra-Slim Desktop uses a slimline Serial ATA (SATA) optical drive. Removing the Optical Drive CAUTION: All removable media should be taken out of a drive before removing the drive from the computer.

  • Page 151: Preparing The New Optical Drive

    Preparing the New Optical Drive Before the new optical drive can be used, the release latch must be attached. Peel the backing off the adhesive on the release latch. Without allowing the release latch to touch the optical drive, carefully align the holes on the release latch with the pins on the side of the optical drive.

  • Page 152: Installing The New Optical Drive

    Installing the New Optical Drive NOTE: If you are installing an optical drive in a bay that did not previously have a drive in it, you must remove the access panel and the bezel blank covering the opening of the bay before proceeding.

  • Page 153: Replacing The Hard Drive

    Replacing the Hard Drive NOTE: The Ultra-Slim Desktop supports only 2.5-inch Serial ATA (SATA) internal hard drives. Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive. The 2.5-inch hard drive is enclosed in a carrier under the optical drive.
  • Page 154 Lift the hard drive carrier straight up and out of the chassis. Figure 5-16 Removing the Hard Drive Carrier Remove the four guide screws from the sides of the hard drive carrier. Figure 5-17 Removing the Guide Screws Lift the hard drive up to the top of the carrier (1) and slide the drive out of the carrier (2). Figure 5-18 Removing the Hard Drive from the Carrier 146 Chapter 5 Ultra-Slim Desktop (USDT) Hardware Upgrades...
  • Page 155 Position the hard drive so that the top of the hard drive is up against the top of the carrier (1) so that the circuit board on the bottom of the hard drive does not come in contact wit the tabs on the bottom of the carrier, then slide the new hard drive into the carrier (2).
  • Page 156 To place the hard drive carrier back in the chassis, align the guide screws with the slots on the drive bay, drop the carrier straight down into the drive bay (1), and press the handle on the carrier all the way down (2) so that the drive is properly seated and locked in place. Figure 5-21 Installing the Hard Drive Carrier Replace the optical drive and reconnect the cable on the back of the optical drive.

  • Page 157: Installing And Removing A Port Cover

    Installing and Removing a Port Cover An optional rear port cover is available for the computer. To install the port cover: Thread the cables through the bottom hole on the port cover (1) and connect the cables to the rear ports on the computer. Insert the hooks on the port cover into the slots on the rear of the chassis, then slide the cover to the right to secure it in place (2).

  • Page 158: Installing A Security Lock

    Installing a Security Lock HP/Kensington MicroSaver Security Cable Lock There are two cable lock slots on the rear of the computer. The slot next to the thumbscrew should be used when there is no port cover. The slot on the far right should be used when a port cover is installed.

  • Page 159: Padlock

    Padlock Figure 5-26 Installing a Padlock HP Business PC Security Lock Fasten the security cable by looping it around a stationary object. Figure 5-27 Securing the Cable to a Fixed Object ENWW Installing a Security Lock 151...
  • Page 160 Insert the Kensington lock into the Kensington lock slot on the back of the monitor and secure the lock to the monitor by inserting the key into the key hole on the rear of the lock and rotating the key 90 degrees. Figure 5-28 Installing the Kensington Lock on the Monitor Slide the security cable through the hole in the Kensington lock on the rear of the monitor.
  • Page 161 Use the bracket provided in the kit to secure other peripheral devices by laying the device cable across the center of the bracket (1) and inserting the security cable through one of the two holes in the bracket (2). Use the hole in the bracket that best secures the peripheral device cable. Figure 5-30 Securing Peripheral Devices (Printer Shown) Thread the keyboard and mouse cables through the computer chassis lock.
  • Page 162 Screw the lock to the chassis in the thumbscrew hole using the screw provided. Figure 5-32 Attaching the Lock to the Chassis Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the lock.

  • Page 163: Front Bezel Security

    Figure 5-34 Secured Workstation Front Bezel Security The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer.
  • Page 164 Remove the black screw on the front of the chassis behind the bezel. The screw is located next to the optical drive and is labeled "BEZEL." Figure 5-35 Retrieving the Front Bezel Security Screw Replace the front bezel. Install the security screw through the middle front bezel release tab and into the chassis to secure the front bezel in place.

  • Page 165: Appendix A Battery Replacement

    The lithium battery is only used when the computer is NOT connected to AC power. HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/...
  • Page 166 Depending on the type of battery holder on the system board, complete the following instructions to replace the battery. Type 1 Lift the battery out of its holder. Figure A-1 Removing a Coin Cell Battery (Type 1) Slide the replacement battery into position, positive side up. The battery holder automatically secures the battery in the proper position.
  • Page 167 Insert the new battery and position the clip back into place. Figure A-3 Removing a Coin Cell Battery (Type 3) NOTE: After the battery has been replaced, use the following steps to complete this procedure. Replace the computer access panel. Plug in the computer and turn on power to the computer.

  • Page 168: Appendix B Removing And Replacing A Removable 3.5-Inch Sata Hard Drive

    Removing and Replacing a Removable 3.5-inch SATA Hard Drive Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch internal drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive bay.
  • Page 169 Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and move the thermal sensor away from the carrier (2). Figure B-2 Removing the Thermal Sensor Remove the four screws from the bottom of the hard drive carrier. Figure B-3 Removing the Security Screws ENWW...
  • Page 170 Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier. Figure B-4 Removing the Hard Drive Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA connector on the carrier's circuit board.
  • Page 171 Replace the four screws in the bottom of the carrier to hold the drive securely in place. Figure B-6 Replacing the Security Screws Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
  • Page 172 Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover in place (2). Figure B-8 Replacing the Carrier Cover Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided. NOTE: The carrier must be locked for power to be supplied to the hard drive.

  • Page 173: Appendix C Unlocking The Smart Cover Lock

    PC component (for example, processor or power supply) failure ● Forgotten password NOTE: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared; order this key before you need it. To obtain a FailSafe Key: ●...

  • Page 174: Using The Smart Cover Failsafe Key To Remove The Smart Cover Lock

    Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock To open the access panel with the Smart Cover Lock engaged: Remove/disengage any security devices that prohibit opening the computer. Remove all removable media, such as compact discs or USB flash drives, from the computer. Turn off the computer properly through the operating system, then turn off any external devices.
  • Page 175 Figure C-2 Removing the Smart Cover Lock Screws from the Microtower Figure C-3 Removing the Smart Cover Lock Screws from the Small Form Factor You can now remove the access panel. To reattach the Smart Cover Lock, secure the lock in place with the tamper-proof screws. ENWW Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock 167...

  • Page 176: Appendix D Electrostatic Discharge

    Use conductive field service tools. ● Use a portable field service kit with a folding static-dissipating work mat. If you do not have any of the suggested equipment for proper grounding, contact an HP authorized dealer, reseller, or service provider. NOTE: For more information on static electricity, contact an HP authorized dealer, reseller, or service provider.

  • Page 177: Appendix E Computer Operating Guidelines, Routine Care And Shipping Preparation

    Computer Operating Guidelines, Routine Care and Shipping Preparation Computer Operating Guidelines and Routine Care Follow these guidelines to properly set up and care for the computer and monitor: ● Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.

  • Page 178: Optical Drive Precautions

    Avoid using any type of solvent, such as alcohol or benzene, which may damage the finish. Safety If any object or liquid falls into the drive, immediately unplug the computer and have it checked by an authorized HP service provider. Shipping Preparation Follow these suggestions when preparing to ship the computer: Back up the hard drive files on PD discs, tape cartridges, CDs, or USB flash drives.

  • Page 179: Index

    Index CMT removal 28 MT location 73 access panel MT installation 67 SFF location 108 CMT removal 18 MT removal 67 CMT replacement 19 SFF installation 103 hard drive locking and unlocking 165 SFF removal 103 CMT installation 41 MT removal 58 expansion slot cover CMT removal 33 MT replacement 59...
  • Page 180 CMT cable lock 50 precautions 170 USDT computer access CMT front bezel 55 SFF installation 112 panel 132 CMT HP Business PC Security SFF removal 110 USDT front bezel 134 Lock 51 USDT installation 144 USDT hard drive 145 CMT padlock 50...
  • Page 181 SFF 97 USDT 137 tower conversion CMT 47 USDT 96, 136 unlocking access panel 165 ventilation guidelines 169 Windows Logo key 13 ENWW Index 173...
