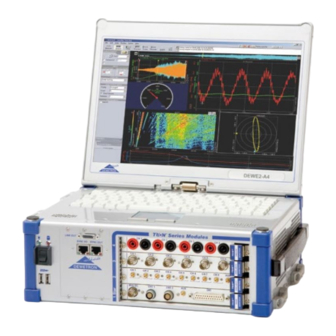

Summary of Contents for Dewetron DEWE-5000
- Page 1 A u t o m o t i v e E n e r g y & P o w e r A n a l y s i s A e r o s p a c e & D e f e n s e T r a n s p o r t a t i o n G e n e r a l T e s t &...
- Page 2 Copyright © DEWETRON elektronische Messgeraete Ges.m.b.H. This document contains information which is protected by copyright. All rights are reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. All trademarks and registered trademarks are acknowledged to be the property of their owners.
- Page 3 BNC connectors (± 50V max.), D-SUB connectors (± 50V max.), thermocouple connectors (± 50V max.), BINDER connectors (± 50V max.), SMB connetcors (± 50V max.), µdot connectors (± 50V max.), ® LEMO connectors or RJ-45 connectors. ® DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012...
- Page 4 Preface Notes...
-
Page 5: General Information, Safety Instructions
Support DEWETRON has a team of people ready to assist you if you have any questions or any technical difficulties regarding the system. For any support please contact your local distributor first or DEWETRON directly. For Asia and Europe, please contact: For the Americas, please contact: DEWETRON Ges.m.b.H. -
Page 6: Warranty Information
Warranty Information A copy of the specific warranty terms applicable to your DEWETRON product and replacement parts can be obtained from your local sales and service office. Restricted Rights Legend Use austrian law for duplication or disclosure. -
Page 7: Safety Symbols In The Manual
For safety reasons max. 50 V may be applied to the BNC input-connectors! Refer to the regulation of maximum allowable touch potential. DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... -
Page 8: General Safety And Hazard Warnings For All Dewetron Systems
Safety instructions Your safety is our primary concern! Please be safe! General safety and hazard warnings for all DEWETRON systems Use this system under the terms of the specifications only to avoid any possible danger. Maintenance will be executed by qualified staff only. - Page 9 The electrical installations and equipments in industrial facilities must be observed by the security regulations and insurance institutions. DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012...
- Page 10 Safety instructions The use of the measuring system in schools and other training facilities must be observerd by skilled personnel. The measuring systems are not designed for use at humans and animals. Please contact a professional if you have doubts about the method of operation, safety or the connection of the system.
-
Page 11: Windows Updates And Antivirus/Security Software
Problematic network stacks Often intrusive IT software or network processes can interfere with the primary function of the DEWETRON system: to record data. Therefore we recommend strongly against the installation of IT/MIS software and running their processes on any DEWETRON data acquisition system, and cannot guarantee the performance of our systems if they are so configured. -
Page 12: Blockdiagram Of The Internal Signal Processing
Signal processing Blockdiagram of the internal signal processing AC or DC input Power USB and FireWire power supply supply Measurement boards Motherboard/CPU-board (DEWE-ORION, ...) PCI boards (USB, FireWire, ...) USB, FireWire, Ethernet (on-board) onboard VGA Display RS-232 DC/DC converter DAQ-Motherboard DAQ-Modules... -
Page 13: First Steps
Power-on your system. Connect your sensors to the system. Run DEWESoft usually via "Start" >"Programs" > "Dewetron" > "DEWESoft x.x" > "DEWESoft x.x" Start recording your data! DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... - Page 14 First steps Notes...
-
Page 15: Table Of Contents
Main System System specifications ……………………………………………………………………… 17 Connectors ………………………………………………………………………………… 18 DAQ series modules overview …………………………………………………………… 19 Software DEWESoft …………………………………………………………………………………… 31 A/D Conversion Internal Wiring CE-Certificate of conformity DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... - Page 16 Table of content...
-
Page 17: Main System
Weight: typ. 17 kg (37.4 lbs), depending on confi guration *) tested with SSD disc Dimensions* * Dimensions in mm (1 inch = 25.4 mm) DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... -
Page 18: Connectors
Main System Connectors Typical DEWE-5000 front view Combustion Analyzer option Connector overview: 1. Power supply connector with general power switch 2. PS/2 keyboard connector 3. PS/2 mouse connector 4. USB interface connectors 5. LPT interface connector 6. 2x RS-232 interface connectors 7. -
Page 19: Daq Series Modules Overview
20 mA / 5 A LP: 10 Hz to 50 kHz OP: ±500 V DAQN-AIN Voltage ±10 V (1:1 input) OP: < ±500 V (jumper selectable) DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... - Page 20 Main System Bandwidth (BW), Isolation (ISO), Module Input type Ranges TEDS Filters (LP = lowpass, Overvoltage HP = highpass) protection (OP) Current measurement DAQP-LA-SC Current 0.1 A to 30 A peak BW: 300 kHz ISO: 1.4 kV Note: 5 A continuous max.
- Page 21 Range up to 50000 pC, AC coupled with 0.07 Hz, BNC signal connection Max. 100 kHz bandwidth (dependent on the max. bandwidth of the amplifi er) Automatic adapter identifi cation DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012...
- Page 22 Main System Power supply connectors 400 W AC power supply 400 W AC power supply BEA-640 Input: Input range: 100 to 240 V (active PFC) Input frequency: 47 to 63 Hz Max. input current: 7 A (115 V ), 3.5 A (230 V Output: Output power: 400 W continuous...
- Page 23 +5 Vsb (max. 1.5 A) +12 V (max. 12 A, min. 1 A, peak 15 A) -12 V (max. 2 A) Ground connector DC power supply DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012...
- Page 24 Main System Internal battery power supply: option DEWE-5000-PS-BAT 320 W DC power supply with XP-04 battery management Input: Input range: 18 to 24 V (nom. 18 V Input frequency: Max. input current: 12 A External AC power supply: 90 to 260 V...
- Page 25 25% steps. An intelligent battery controller, integrated in our DEWETRON systems, takes care of the charging and discharging process in order to ensure maximum battery performance and life time. DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012...
- Page 26 Main System External battery charger (optional) External battery charger CH5000A/E/U Power supply: Input voltage: 90 to 260 VAC, 24V Input current: 2.5 A Mains Cord: CH5000E - 220 V European 2-pin connector with ground recess Dimensions (WxDxH): 180 mm x 92 mm x 58 mm Weight: ca.
- Page 27 USB interface connectors (Universal Serial Bus) The USB interface connectors meets standard USB pin assignment. LPT printer interface connector The printer interface connector (female) is located on the right side of the DEWE-5000. It is configured as standard LPT interface. Pin assignment...
- Page 28 16: Hotplug-Detect 24: TDMS-clock - Ethernet connector The DEWE-5000 system supports 10/100 BaseT Ethernet with standard RJ45 connector. Power-on button The power-on button has to be used to switch on the system. It only works when the main power switch is...
- Page 29 Crank Angle Sensor CA Connector ‘Zero position’ signal (upper death point signal), TTL level input CDM - angle position signal from high resolution encoders, TTL level input DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012...
- Page 30 Main System Optional connector for current power probe supply This connector supports ±9 V current power probe supply for connecting current clamps. 3-pin Binder series connector Pin assignment 1: +9 V 2: GND 3: -9 V BINDER-712 series 6-pin male/female Lemo connector (with digital inputs of ORION board) 3 2 1 Pin assignment 1: +15 V...
-
Page 31: Software
In this way, all of your colleagues and customers can replay your data files and do all of the functions that you can – just give them the data file to open. DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... - Page 32 DEWESoft Notes...
-
Page 33: A/D Conversion A1
Please find information about the A/D conversion in the attached DEWE-ORION series manual. The latest version of the manual can be downloaded from: http://download.dewetron.com/dl/components/adboards Informations regarding different manufacturer's see the corresponding D/A card manual. DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... - Page 34 A/D & D/A Conversion Notes...
-
Page 35: Internal Wiring B1
-12 V -9 V power supply The 16 slot DEWE-MOTHERBOARD receives the ±12 V power supply via a DC/DC converter from the internal power supply. DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012... - Page 36 Internal Wiring Analog output connector pin-assignment Connector for DEWE-ORION-1616 cards Connector for DEWE-ORION-1624 cards -15 V +15 V +15V -15 V AGND AGND AGND AGND AGND AGND AGND AGND CH15+ AGND CH. 15- CH. 15+ CH14+ CH. 14- CH. 14+ AGND CH13+ AGND...
- Page 37 EN 55011 Class B Immunity EN 61000-6-2 Group standard Graz, October 14, 2008 Dipl.-Ing. Roland Jeutter / Managing director Place / Date of the CE-marking DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012...
- Page 38 Notes...
