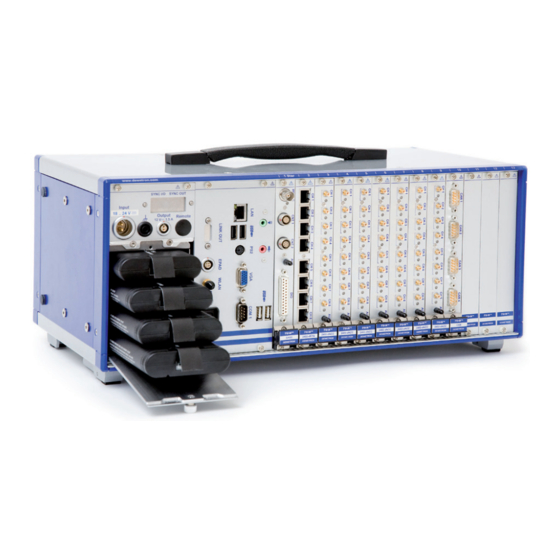

DEWE2-M13s
TECHNICAL
REFERENCE
MANUAL
WELCOME TO
THE WORLD OF
DEWETRON!
Congratulations on your new device! It
will supply you with accurate, complete
and reproducible measurement results
for your decision making.
Look forward to the easy handling and
the flexible and modular use of your
DEWETRON product and draw upon
more than 25 years of DEWETRON
expertise in measurement engineering.
CUSTOMIZED
ISO9001
EN ISO 14001
MODULAR
COMPETENT
COMMITTED
APPROVED
Advertisement
Table of Contents
Related Manuals for Dewetron DEWE2-M13s
Summary of Contents for Dewetron DEWE2-M13s
- Page 1 Look forward to the easy handling and the flexible and modular use of your DEWETRON product and draw upon more than 25 years of DEWETRON expertise in measurement engineering. CUSTOMIZED MODULAR COMPETENT...
- Page 2 Copyright © DEWETRON GmbH This document contains information which is protected by copyright. All rights are reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. All trademarks and registered trademarks are acknowledged to be the property of their owners.
- Page 3 This guide includes important startup notes, as well as safety notes and information about keeping your DEWETRON system in good working condition over time.
- Page 4 PREFACE Notes...
-
Page 5: Table Of Contents
DEWE2-M13s at a glance …………………………………………………………………………………………………… 17 Installing a TRION™ module in the chassis ………………………………………………………………………… 20 Power supply ……………………………………………………………………………………………………………………… 21 Maintenance ……………………………………………………………………………………………………………………… 23 System recovery ………………………………………………………………………………………………………………… 23 Cooling considerations………………………………………………………………………………………………………… 24 CE-Certificate of conformity DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017... - Page 6 TABLE OF CONTENT Notes...
-
Page 7: General Information, Safety Instructions
08:00 and 4:30 EST Service/repairs Only the team of DEWETRON is allowed to perform any kinds of repairs to your system to assure a safe and proper operation in future. For information regarding service and repairs please contact your local distributor first or DEWETRON directly. -
Page 8: Warranty Information
Warranty Information A copy of the specific warranty terms applicable to your DEWETRON product and replacement parts can be obtained from your local sales and service office. Restricted Rights Legend Use austrian law for duplication or disclosure. -
Page 9: Safety Conventions
Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the product. DEWETRON GmbH assumes no liability for the customer’s failure to comply with these requirements. -
Page 10: General Safety And Hazard Warnings For All Dewetron Systems
SAFETY INSTRUCTIONS Your safety is our primary concern! Please be safe! General safety and hazard warnings for all DEWETRON systems > Use this system under the terms of the specifications only to avoid any possible danger. If the unit is used in a manner not specified by the manufacturer the protection can be impaired! >... - Page 11 > Do not disassemble the system! There is a high risk of getting a perilous electric shock. Capacitors still might charged, even the system has been removed from the power supply. DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017...
- Page 12 SAFETY INSTRUCTIONS > Direct exposure of any DEWETRON product to strong sunlight or other heat radiation shall be prevented, as this could excessively heat up the product and lead to permanent damage of the product. > The electrical installations and equipments in industrial facilities must be observed by the security regulations and insurance institutions.
-
Page 13: Maintenance
> Many components within the chassis are sensitive to static discharge damage. Always wear a ground wrist strap and service the unit only in static-free environment. > Do not use harsh chemical cleaning agents! DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017... -
Page 14: Windows Updates And Antivirus/Security Software
Problematic network stacks Often intrusive IT software or network processes can interfere with the primary function of the DEWETRON system: to record data. Therefore we recommend strongly against the installation of IT/MIS software and running their processes on any DEWETRON data acquisition system, and cannot guarantee the performance of our systems if they are so configured. -
Page 15: Main System
441 x 230 x 177 mm (17.4 x 9.1 x 7 in.) Weight w/o TRION™ modules: typ. 10 kg (22 lbs) ) Tested with SSD DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017... - Page 16 MAIN SYSTEM Dimensions* * Dimensions in mm (1 inch = 25.4 mm)
-
Page 17: Dewe2-M13S At A Glance
GBit Ethernet LAN connector Typical DEWE2-M13s front view NOTE: The amount and location of the connectors might vary from system to system and depends on system configuration. DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017... - Page 18 Remote power on connector (optional) PCI express X1 interface (Upstream / Downstream) The DEWE2-M13s is equipped with a PCI express X1 interface by default to to enable daisy-chaining of units in combination with the TRION™-SYNC-BUS interface. Further information regarding sychonizing DEWE2 units see chapter 'Synchronization of multiple DEWE2- devices'.
- Page 19 MAIN SYSTEM RS-232 interface connector (COM1) The RS-232 interface connector (male) is located on the front side of the DEWE2-M13s. It is configured as standard RS- 232 interface COM 1 and can be used for mouse or other peripheral units.
-
Page 20: Installing A Trion™ Module In The Chassis
MAIN SYSTEM INSTALL/REMOVE A TRION™ MODULE Installing a TRION™ module in the chassis Installing a TRION™ module into the chassis DEWE2 chassis TRION™ series module Injector/ejector handle Module guides Mounting screws Step 1: Proper ESD precautions must be taken to avoid any damage to the unit. Step 2: Power off and unplug all connected cables including sensors from the DEWE2 chassis and TRION™... -
Page 21: Power Supply
Some dedicated modules (TRION-A429, TRION-M1553, TRION-MA4) require additional -12 V voltage which is not supported with DC powered DEWE2 instruments by default. Please ask your local dealer or factory for more information. DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017... - Page 22 Dimensions (W x D x H): 248 x 106 x 62 mm (9.8 x 4.2 x 2.4 in.) Weight: 1.7 kg (3.7 lbs) DEWE2-M13s with option DW2-PS-BAT and external AC/DC power supply DEWE-POW-24-350 Cable POW-CBL-3B302F-B-2 90 to 260 VAC IN...
-
Page 23: Maintenance
TRION™ series cards or the powersupply could get damaged! System recovery For more information regarding a total recovery please refer to the corresponding total recovery technical reference manual shipped with your DEWE2 system. DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017... -
Page 24: Cooling Considerations
MAIN SYSTEM Cooling considerations The intake vent of the DEWE2-M13s is on the bottom of the chassis, where the cooling exhaust vent for the DEWE2- M13s is on the rear of the chassis. CAUTION: Adequate clearance between the chassis and surrounding equipment or blockages must... -
Page 25: Ce-Certificate Of Conformity
EN 61000-6-4 EN 55011 Class B Immunity EN 61000-6-2 Group standard Graz, February 13, 2015 Ing. Thomas Propst / Manager Total Quality Place / Date of the CE-marking DEWE2-M13s • Technical Reference Manual • Printing version 1.0.2 • June 27, 2017... - Page 26 NOTES...
