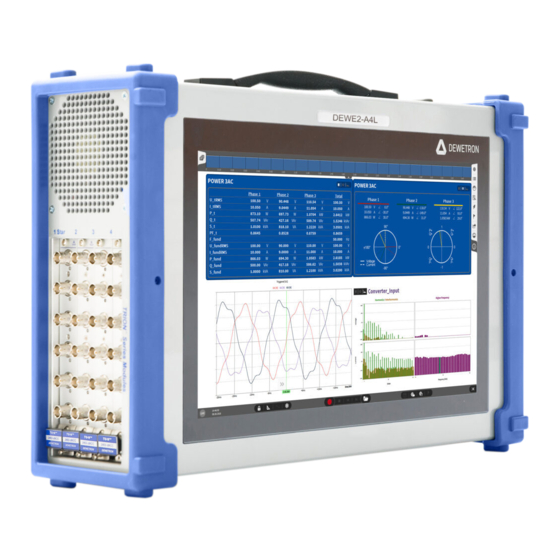

DEWE2-A4L
TECHNICAL
REFERENCE
MANUAL
WELCOME TO
THE WORLD OF
DEWETRON!
Congratulations on your new device! It
will supply you with accurate, complete
and reproducible measurement results
for your decision making.
Look forward to the easy handling and
the flexible and modular use of your
DEWETRON product and draw upon
more than 25 years of DEWETRON
expertise in measurement engineering.
CUSTOMIZED
ISO9001
EN ISO 14001
MODULAR
COMPETENT
COMMITTED
APPROVED
Advertisement
Table of Contents
Related Manuals for Dewetron DEWE2-A4L
Summary of Contents for Dewetron DEWE2-A4L
-
Page 1: Technical Reference
Look forward to the easy handling and the flexible and modular use of your DEWETRON product and draw upon more than 25 years of DEWETRON expertise in measurement engineering. CUSTOMIZED MODULAR COMPETENT... - Page 2 Copyright © DEWETRON GmbH This document contains information which is protected by copyright. All rights are reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. All trademarks and registered trademarks are acknowledged to be the property of their owners.
- Page 3 This guide includes important startup notes, as well as safety notes and information about keeping your DEWETRON system in good working condition over time.
- Page 4 PREFACE Notes...
-
Page 5: Table Of Contents
Dimensions ………………………………………………………………………………………………………………………… 16 DEWE2-A4L at a glance ……………………………………………………………………………………………………… 17 Power supply ……………………………………………………………………………………………………………………… 20 Installing a TRION™ module into the DEWE2-A4L ……………………………………………………………… 21 Touchscreen gestures ………………………………………………………………………………………………………… 22 CE-Certificate of conformity DEWE2-A4L • Technical Reference Manual • Printing version 1.0.1 • November 03, 2017... - Page 6 TABLE OF CONTENT...
-
Page 7: General Information, Safety Instructions
08:00 and 4:30 EST Service/repairs Only the team of DEWETRON is allowed to perform any kinds of repairs to your system to assure a safe and proper operation in future. For information regarding service and repairs please contact your local distributor first or DEWETRON directly. -
Page 8: Warranty Information
Warranty Information A copy of the specific warranty terms applicable to your DEWETRON product and replacement parts can be obtained from your local sales and service office. Restricted Rights Legend Use austrian law for duplication or disclosure. -
Page 9: Safety Conventions
Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the product. DEWETRON GmbH assumes no liability for the customer’s failure to comply with these requirements. -
Page 10: General Safety And Hazard Warnings For All Dewetron Systems
SAFETY INSTRUCTIONS Your safety is our primary concern! Please be safe! General safety and hazard warnings for all DEWETRON systems > Use this system under the terms of the specifications only to avoid any possible danger. If the unit is used in a manner not specified by the manufacturer the protection can be impaired! >... -
Page 11: Safety Instructions
> Do not disassemble the system! There is a high risk of getting a perilous electric shock. Capacitors still might charged, even the system has been removed from the power supply. DEWE2-A4L • Technical Reference Manual • Printing version 1.0.1 • November 03, 2017... - Page 12 SAFETY INSTRUCTIONS > Direct exposure of any DEWETRON product to strong sunlight or other heat radiation shall be prevented, as this could excessively heat up the product and lead to permanent damage of the product. > The electrical installations and equipments in industrial facilities must be observed by the security regulations and insurance institutions.
-
Page 13: Maintenance
> Many components within the chassis are sensitive to static discharge damage. Always wear a ground wrist strap and service the unit only in static-free environment. > Do not use harsh chemical cleaning agents! DEWE2-A4L • Technical Reference Manual • Printing version 1.0.1 • November 03, 2017... -
Page 14: Windows Updates And Antivirus/Security Software
Problematic network stacks Often intrusive IT software or network processes can interfere with the primary function of the DEWETRON system: to record data. Therefore we recommend strongly against the installation of IT/MIS software and running their processes on any DEWETRON data acquisition system, and cannot guarantee the performance of our systems if they are so configured. -
Page 15: Main System
Acceleration 30 g, duration 11 ms, pulse form half sine, 3 pumps/direction, 6 directions Random vibration (EN 60721-3-2) Class 2M3 (spectral acceleration density 3 m²/s³, frequency range 10 Hz-200 Hz, duration 30 min/direction) Tested with SSD DEWE2-A4L • Technical Reference Manual • Printing version 1.0.1 • November 03, 2017... -
Page 16: Dimensions
MAIN SYSTEM Dimensions * Dimensions in mm (1 inch = 25.4 mm) -
Page 17: Dewe2-A4L At A Glance
EPAD interface connector Downstream interface PCIe x1 10 3 Note: The amount and location of the connectors might vary from system to system and depends on system configuration DEWE2-A4L • Technical Reference Manual • Printing version 1.0.1 • November 03, 2017... - Page 18 RS-232 interface connectors (COM1 & COM2) The RS-232 interface connectors (male) are located on the left side of the DEWE2-A4L. They are configured as standard RS-232 interface COM 1 & COM 2 and can be used for mouse or other peripheral units.
- Page 19 DVI connector interface (see (6)) HDD/SSD drive bays The DEWE2-A4L comes with 2 drivebays for easy access to your HDD/SSD including a 1 TB HDD dedicated for data storage as well as a 120 GB SSD for operating system and application software.
-
Page 20: Power Supply
MAIN SYSTEM Power supply The DEWE2-A4L is powered by an internal AC/DC power supply. 250 W AC power supply SS-250SU-B1 Input: Rated input voltage: 100 to 240 V (max. 90 to 264 V ); active PFC Input frequency: 47 to 63 Hz Max. -
Page 21: Installing A Trion™ Module Into The Dewe2-A4L
Step 1: Proper ESD precautions must be taken to avoid any damage to the unit. Step 2: Power off and unplug all connected cables including sensors from the DEWE2-A4L and TRION™ series modules. Step 3: Identify a supported TRION™ peripheral slot. Some modules require a TRION™ STAR-slot. For more information please refer to TRION™... -
Page 22: Touchscreen Gestures
Operating with the Touchscreen Touchscreen gestures The DEWE2-A4L is equipped with a bright 15.4" wide aspect multi-touch panel to control the DEWE2-A4L. You can use your fingers on the touchscreen, like you would on a smartphone. For example, drag the sidebar from the right side across the screen to open the channel setup. -
Page 23: Ce-Certificate Of Conformity
EN 61000-6-4 EN 55011 Class B Immunity EN 61000-6-2 Group standard Graz, December 07, 2016 Ing. Thomas Propst / Manager Total Quality Place / Date of the CE-marking DEWE2-A4L • Technical Reference Manual • Printing version 1.0.1 • November 03, 2017... - Page 24 NOTES...
