Extron electronics RM 700M Installation Manual

RM 700M Mounting Kit Installation Guide

Overview

The Extron RM 700M allows the TLP 700MV TouchLink
®
be mounted in a standard rack. The RM 700M uses 5 U of vertical
space in a standard 19 inch equipment rack.
This guide provides basic instructions for an experienced installer
to mount and connect the TLP 700MV.

Using the RM 700M mounting kit

To mount the TLP 700MV in any standard 19" equipment rack, follow these instructions:
1. Disconnect all cables from the TLP 700MV.
2. Run cables for video, network and power to the rack.
3. Secure the RM 700M to the rack, using
the screws provided by the rack's
manufacturer.
4. Remove the faceplate from the
TLP 700MV and ensure
that all the locking
arms are laying
flush with the unit.
5. Push the
TLP 700MV
through the hole
in the mounting
kit and tighten the
six screws for the
locking arm. As
the screws tighten,
the locking arms
rotate and clamp
against the back
of the mounting
kit, holding the
TLP 700MV in place.
6. Connect the cables to the rear panel connectors.
Connect the LAN port to the network with a
straight-through cable.
Connect an S-video or composite video source to
the unit, using these two BNC connectors:
• For S-video, connect the Y (luminance) signal
to the VID/Y input and the C (chrominance)
signal to the C input.
• For composite video, connect the input to the
VID/Y input.
Connect the power input to a 12 VDC, 1.0 A
power supply, using the 2-pole captive screw
connector.
7. If you do not plan to calibrate the TLP 700MV immediately (see the TLP 700MV user's manual), replace the
faceplate by pressing the catches on the faceplate into the corresponding holes on the sides of the panel.
Extron USA - West Extron USA - East
Headquarters
+800.633.9876
+800.633.9876 Inside USA / Canada Only
Inside USA / Canada Only
+1.919.863.1794
+1.714.491.1500 +1.919.863.1797 FAX
+1.714.491.1517 FAX

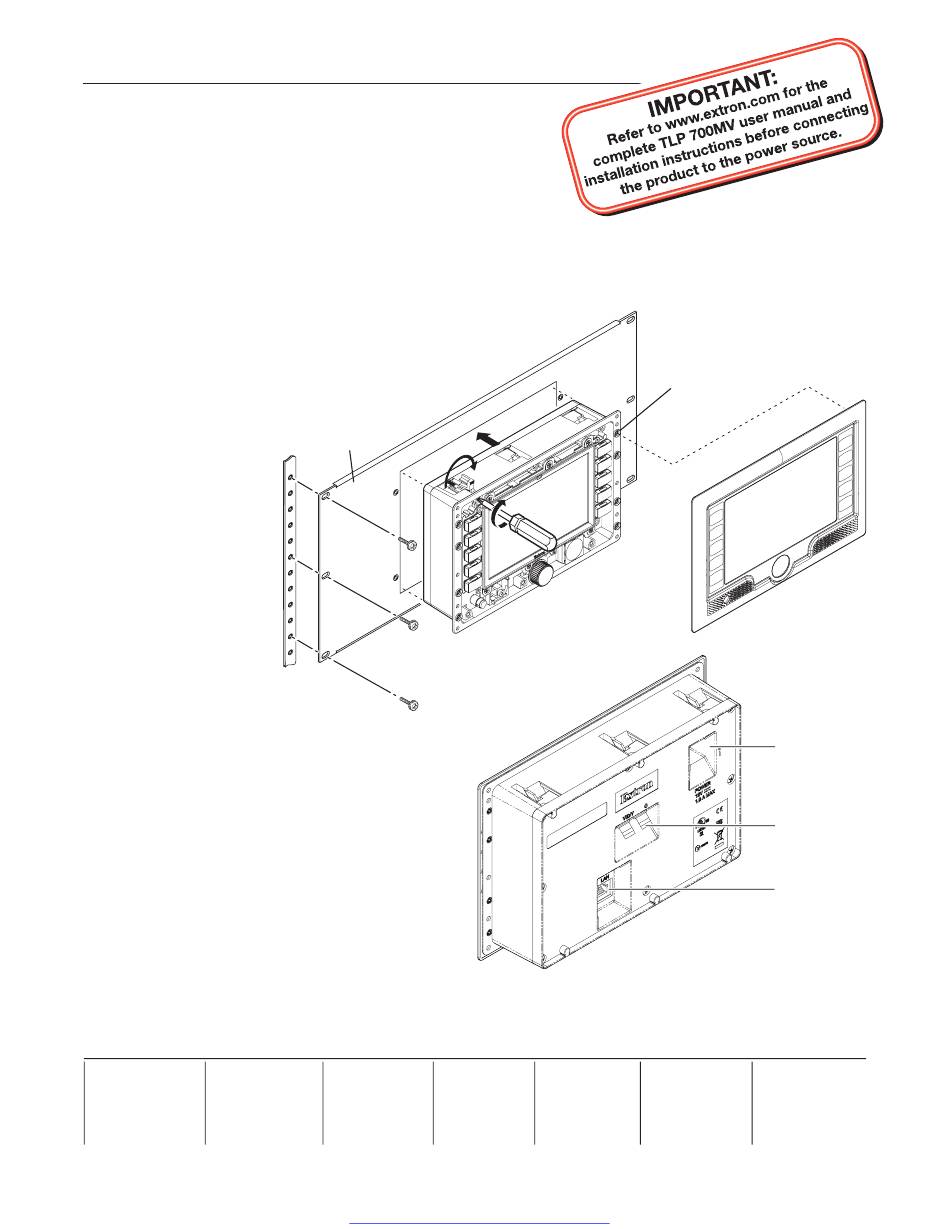

panel to
™
RM 700M
Secure RM 700M to rack.
Screws (6) Provided
by Manufacturer
Extron Europe Extron Asia
+800.3987.6673 +800.7339.8766
Inside Europe Only Inside Asia Only
+31.33.453.4040 +65.6383.4400
+31.33.453.4050 FAX +65.6383.4664 FAX
© 2009 Extron Electronics. All rights reserved.
Get other manuals https://www.bkmanuals.com
Faceplate snaps to unit.
(4 plcs ea side)
Tighten screws to
rotate locking arms.
TLP 700MV Rear Panel
Extron Japan Extron China
+81.3.3511.7655 +400.883.1568
+81.3.3511.7656 FAX Inside China Only
+86.21.3760.1568
+86.21.3760.1566 FAX
Power input
Video inputs (2)
LAN input
Extron Middle East
+971.4.2991800
+971.4.2991880 FAX
68-1793-01
Rev. A 08 09
