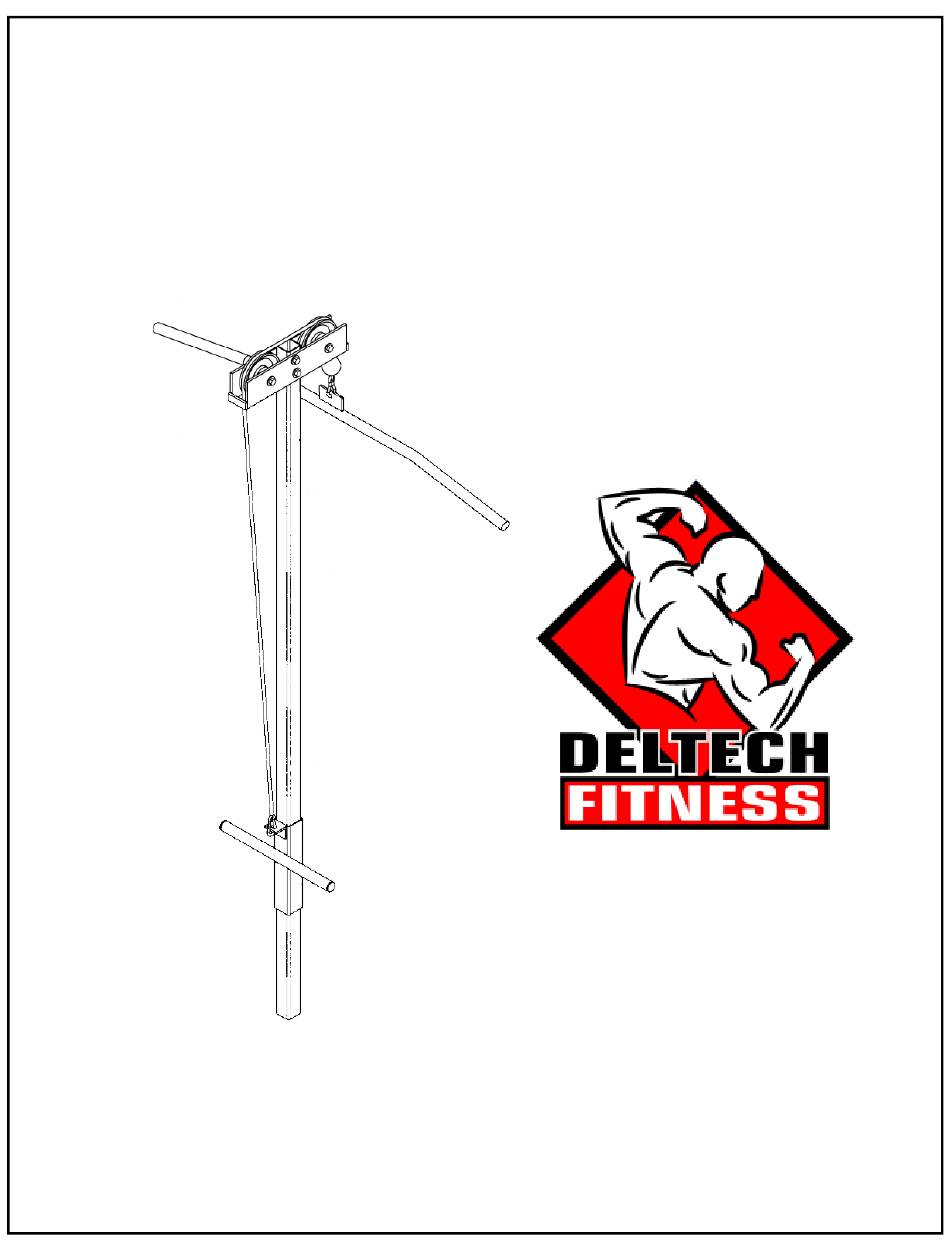

- Page 1 DF1200 LAT ATTACHMENT Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 M12 x 75MM BOLT SNAP HOOK QTY 4 QTY 2 QTY 2 QTY 2 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 WEIGHT CARRIAGE INSTALLATION INSTALL PULLEY ASSEMBLY (A) TO THE FRAME TUBE (B) USING M12 x 75MM BOLTS (H), M12 WASHERS (I), AND M12 NUTS (J). NEXT SLIDE THE WEIGHT CARRIAGE (E) ONTO THE FRAME TUBE (B). INSTALL ROUND CAPS (F) INTO WEIGHT TUBE ON WEIGHT CARRIAGE (E).
- Page 4 CABLE INSTALLATION INSTALL THE CABLE (C) STARTING WITH THE END WITHOUT THE BALL-STOP THROUGH THE TOP OF THE BODY ASSEMBLY MAKING SURE TO INSERT THE CABLE BETWEEN THE PULLEY AND STOP BRACKET. RUN THE CABLE OVER BOTH PULLEYS AND DOWN TO WEIGHT CAR- RIAGE ASSEMBLY.
