Springfree SF60E Manual page 12

Step 5: Fastening the legs to the
frame
Fasten the legs to the frame with the bolts and
nuts provided. Do not over-tighten .
If the holes do not line up, check that the leg
is the right way round (refer to Step 3) or lift the
leg slightly.
The nut should be towards the mat centre;
the bolt head should be towards the outside
(Figure 5)
Step 6: Positioning the enclosure
Tip: Follow Steps 6 Lay the enclosure net around the frame with
and 7 very carefully to the enclosure door (the zippers) between two
ensure proper place- legs on a straight frame section (Figure 6).
ment of the enclosure. Ensure the inside of the enclosure is up. The
enclosure pockets are on the outside at the
top of the net, and should be down; there is a
Velcro strap on the outside of the door, so it
should be down.
Step 7: Inserting the first rod
Find the strip at the lower part of the net with
the holes in it.
Select the hole that has a label "1st Rod Posi-
tion" sewn next to it (Figure 7-A).
Find the rod socket on the round frame sec-
tion that has the sticker "1st Rod Position" next
to it (Figure 7-B).
12
Springfree Trampoline Model SF60E Trampoline and Enclosure Assembly, Installation, Care, Maintenance and Use Instructions Version 1.0

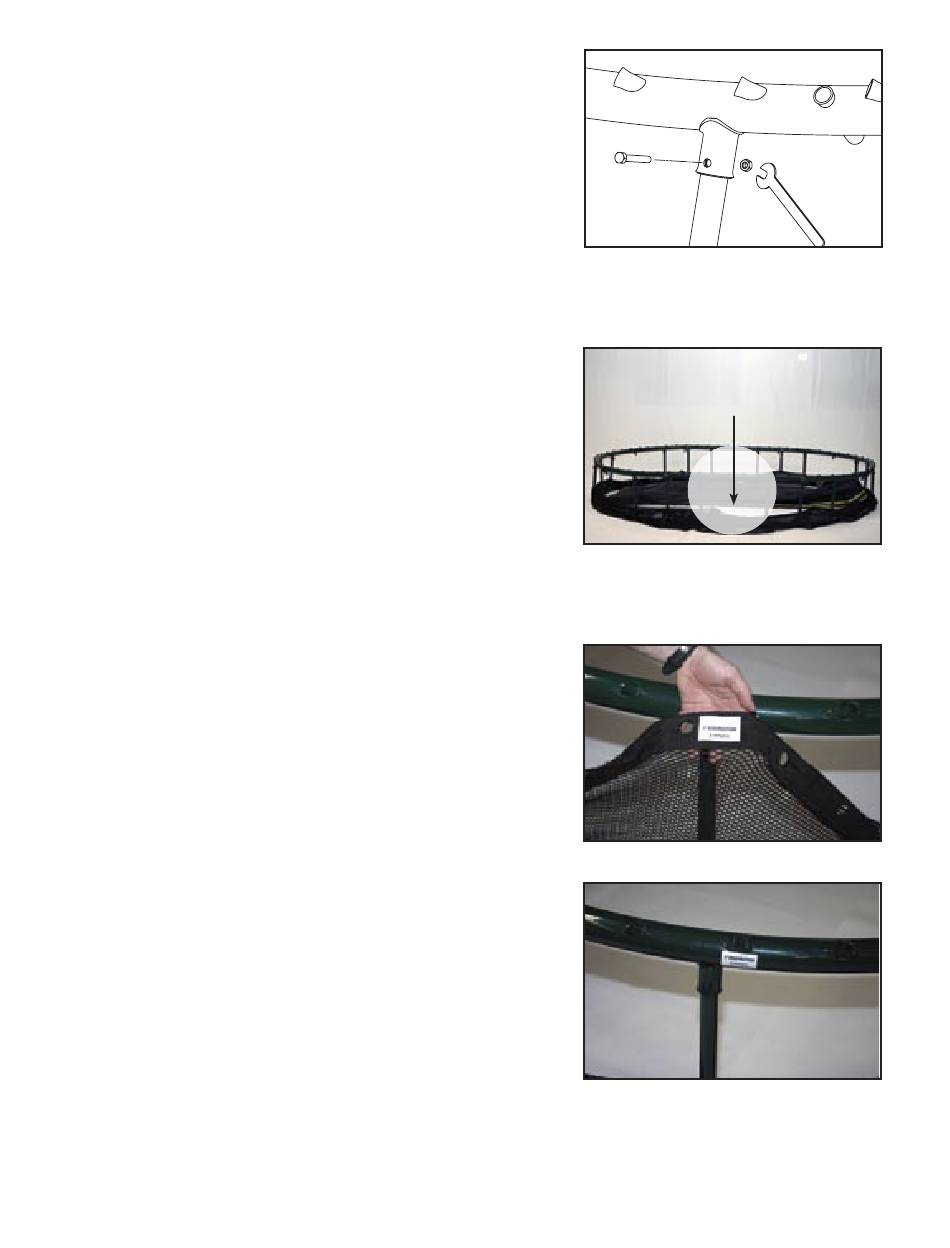

Figure 5: Legs fastened to the frame with a nut
and bolt
zipper door
Figure 6: The enclosure properly laid around the
trampoline frame
Figure 7-A: The hole strip on the enclosure
Figure 7-B: The first rod socket
