- Page 1 ® ® OPERATING MANUAL: PUMP DRIVES Model Nos. MFLX07555-00 MFLX07555-05 MFLX07555-10 MFLX07555-15 A12991175 Edition 04 ® (US & Canada only) Toll Free 1800MASTERFLEX • 18006373739 (Outside US & Canada) 18473817050 masterflex.tech@avantorsciences.com • www.avantorsciences.com/masterflex...
- Page 2 © 2023 Masterflex LLC. All rights reserved. Masterflex – Reg TM Masterflex LLC. Trademarks bearing the symbol in this publication are registered in the U.S. and in other countries. ® PUMP FOR LIQUIDS ORIGINAL INSTRUCTIONS Pump Drives Operating Manual Masterflex...
- Page 3 CAUTION: Risk of crushing. Keep fingers away from rotor while pump is in operation. Stop pump before loading or unloading tubing. CAUTION: Hot Surface. Do not touch. CAUTION: Risk of electric shock. Consult Operator’s manual for nature of hazard and corrective actions. Masterflex Pump Drives Operating Manual...
- Page 4 CAUTION: Replace the fuse only with one of the same type and rating. The fuse rating and type are stated on the rear panel. 7. The Pump Drives should not be used in outdoor or hazardous locations. Pump Drives Operating Manual Masterflex...
-
Page 5: Table Of Contents
Technical Assistance ..........6-2 Masterflex... - Page 6 Fuse Replacement ..........3-3 Pump Drives Operating Manual Masterflex...
-
Page 7: Introduction
Introduction Section 1 Variety of Pump Mount up to 1 (600 rpm) or 2 (200 rpm) MASTERFLEX® L/S® Pump Heads and all MASTERFLEX-compatible Pump Heads. Heads Accepted Masterflex Pump Drives Operating Manual... -
Page 8: Installation And Setup

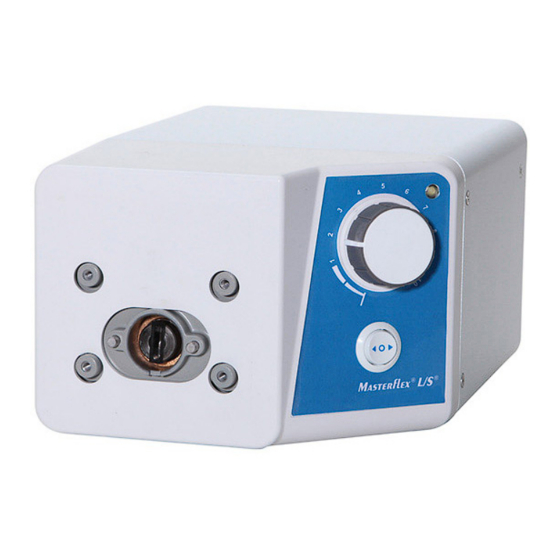

3. Adjust flow rate with the 1-turn potentiometer speed control. CAUTION: When changing flow direction, allow the pump to come to a complete stop before starting again. Failure to do so could cause permanent damage to the motor. Pump Drives Operating Manual Masterflex... - Page 9 B. Power Switch C. External Start/Stop Connector Figure 2-1. View of Rear Drive A. Pump Head Mounting Holes B. 1-Turn Speed Control C. Power Indicator D. Direction Switch Figure 2-2. View of Drive Front Controls Masterflex Pump Drives Operating Manual...
-
Page 10: External Start/Stop Control
The minimum power ratings are stated on the rear panel. Figure 2-3. DB-9 Pin Connector Configuration with Wiring Scheme Pin No. Description DB-9 Start/Stop Start/Stop NOTE: Jumper must be installed for pump to run. Figure 2-4. DB-9 Pin Connector Jumper Installation. Pump Drives Operating Manual Masterflex... -
Page 11: Maintenance
5. Insert brushes and install brush cap. 6. Install housing and secure with the screws on each side. 7. Connect the AC power input line cord to the AC receptacle. Masterflex Pump Drives Operating Manual... -
Page 12: Motor Gear And Brush Replacement
A. 20-600 rpm gear assembly (included in service kit 07553-06) B. Gasket C. Cap D. Motor Brush E. 7-200 rpm gear set (included in service kit 07553-11) F. Gear case cover assembly Figure 3-1. Motor Brush and Gear Check/Replacement. Pump Drives Operating Manual Masterflex... -
Page 13: Fuse Replacement
2. Disconnect the AC power input line cord from the receptacle. 3. Remove and check the fuse and replace if defective.. Figure 3-2. Fuse Replacement Item Description IEC Power Entry Module / Line Cord (5 x 20 mm) Fuse – Do Not Substitute Masterflex Pump Drives Operating Manual... -
Page 14: Replacement Parts
Fuse (07555-00, -10) T2.0A 250V; 5 × 20 mm 07555-92 Cleaning Remove power from the pump before any cleaning WARNING: operation is started. Keep the drive enclosure clean with mild detergents. Do not immerse or use excessive fluid when cleaning. Pump Drives Operating Manual Masterflex... -
Page 15: Accessories
Accessories Section 4 Description Part Number Footswitch with 6 ft. DB-9 male connector 77595-35 Handheld Remote Controller 07528-80 DB-9 External Control Connector 07595-45 DB-9 Remote Control Cable, 25 ft. 07595-47 Masterflex Pump Drives Operating Manual... -
Page 16: Specifications
Dry Contact closure Construction: Dimensions (L x W x H): 9.09 in x 7.23 in x 5.29 in (231 × 184 × 134.5 mm) Weight: 9.46 lbs. (4.26 kg) Enclosure Rating: IP 22 per IEC 60529 Pump Drives Operating Manual Masterflex... - Page 17 Powder coated steel enclosure and cover, ABS plastic and vinyl Compliance: Certified to ANSI/UL 61010-1 3rd Edition and CSA C22.2 No. 61010-1-12 (For CE Mark): EN61010-1 (EU Low Voltage Directive) and EN61326-1 (EU EMC Directive) Masterflex Pump Drives Operating Manual...
-
Page 18: Warranty
Warranty, Product Return and Section 6 Technical Assistance Warranty Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties. This product is warranted against defects in material or workmanship, and... -
Page 19: Product Return
Any damages resulting from improper packaging are your responsibility. Technical Assistance If you have any questions about the use of this product, contact the Manufacturer or authorized seller. Masterflex Pump Drives Operating Manual... - Page 20 ® ® *EN809 manufactured by: US & Canada only Masterflex LLC. Toll Free 1-800-MASTERFLEX | 1-800-637-3739 28092 W Commercial Avenue, Barrington, IL 60010 Outside US & Canada masterflex.tech@avantorsciences.com 1-847-381-7050 www.avantorsciences.com/masterflex...
