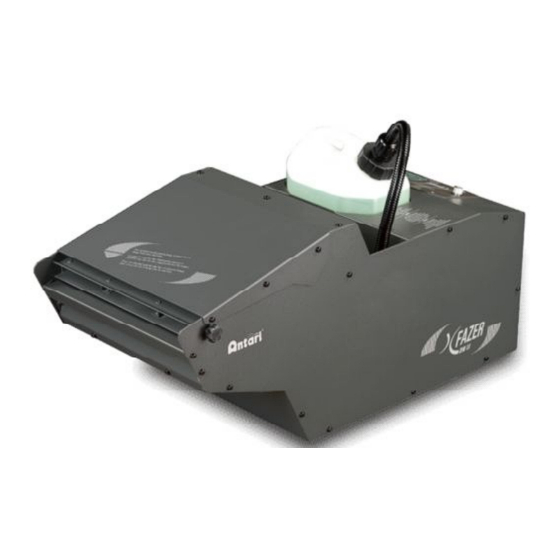

Antari Fazer X-310 PRO User Manual

Antari Fazer X-310 PRO User Manual

Faze machine

Advertisement

Quick Links

X-310 PRO
Faze Machine User Manual
English
Français
Deutsch
中文
© 2014 Antari Lighting and Effects Ltd.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fazer X-310 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Antari Fazer X-310 PRO

  • Page 1 X-310 PRO Faze Machine User Manual English Français Deutsch 中文 • • • © 2014 Antari Lighting and Effects Ltd.
  • Page 3 ANTARI X-310PRO Fazer -Introduction Thank you for choosing an ANTARI X-310PRO Fazer. You now own a rugged and powerful state-of-the-art machine. Besides its ability to operate silently, this new model is user-friendly in terms of controlling and operating. In addition, for Antari X-310PRO it is W-DMX compatible. Prior to use, we suggest that you carefully read all of the instructions.
  • Page 4 Before beginning initial setup of your ANTARI Fazer Machine, make sure that there is no evident damage caused by transportation. In the event that the unit's housing or cable is damaged, do not plug it in and do not attempt to use it until after contacting your ANTARI dealer for assistance. -Packaging The shipping carton should include the following items: 1.
  • Page 5 Place fog machine on a flat surface and remove fog liquid tank cap. Fill with only Antari Fog Fluid. Antari X-310PRO Fazer only works with uncontaminated Antari FLG Fog Fluid. Other fluids may cause spitting and serious clogging problem and could result in the production of an unhealthful fog.
  • Page 6 30 seconds, check the hose attached to the tank to make sure there is fluid going through the hose. If you are unable to determine the cause of the problem, do not simply continue pushing the control module button, as this may damage the unit. Return the machine to your ANTARI dealer immediately.
  • Page 7 Setting the fog output volume for timer operation - Press the button FUNCTION until the display indicates » Timer Out «. Use the buttons DOWN to adjust the fog output volume in timer mode within the range of 1 % and 100 Setting the fog output volume for continuous operation - Press the button FUNCTION until the display indicates »...
  • Page 8 03 Function Keypad 04 Cable For Remote Control (2m/5-pin) -Antari X-30PRO Control Module Operation X-30PRO Wireless Control Module Operation All the X-10PRO features plus wireless capability. The wireless control module X-30PRO consists of a transmitter equipped with two buttons for fog on and off, and a receiver pre-attached to the panel of each X-30PRO.
  • Page 9 Press the button “A”, to emit fog. The button “A” has the same function as the button VOLUME on the control panel, i.e. the fog output depends on the setting of menu item »Volume Out«. The display indicates »Volume« followed by the defined value or »NON STOP BURST« when continuous fog output was selected.
  • Page 10 In order to use 1 transmitter to control 2 or more machines, turn on the machines respectively. When the displays indicate »Wireless Setup«, press the button “A” 1 second on the transmitter within 15 seconds to establish the signal transmission. -Battery change on the transmitter If the range of the transmitter decreases, the battery is probably exhausted and must be replaced.
  • Page 11 Between the values 6 to 255 the volume of fog output is regulated. With 6 being the minimum volume of fog produced and 255 the maximum. The volume output rises as the DMX value is increased. The Antari X-310PRO Fazer can produce maximum continuous output. -Maintenance & Storage Do not allow the fog liquid to become contaminated.
  • Page 12 container and the fog machine liquid tank immediately after filling. Do not operate the fog machine without liquid at any time. Clean with a dry cloth only. Store dry. Cleaning your fog machine regularly will help reduce  costly replacement and repair charges. Note: All fog machines are prone to clogging due to the thick consistency of fog liquid and the high temperature at which it vaporizes.
  • Page 14 The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate pin assignment information Function Ground Data- Data+ -ANTARI X-310PRO on-board DMX settings C h a n n e l A C h a n n e l B Fan Speed Volume output 171-255 (FAST)
  • Page 15 ANTARI LIMITED WARRANTY Thank you for purchasing an Antari product from an authorized Antari dealer. We take great pride in the highest quality and reliability of our products. Please follow proper operation and storage procedures outlined in your accompanying user manual.Shall you require any further assistance, please kindly contact sales@antari.com...
