authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has
passed the authentication of the switch, it can be accessed via the local network.
Protocol type and EAPOL version: Please use the default settings.
User name and password: The user name and password must be the same with the user name and password applied for and
registered in the authentication server.

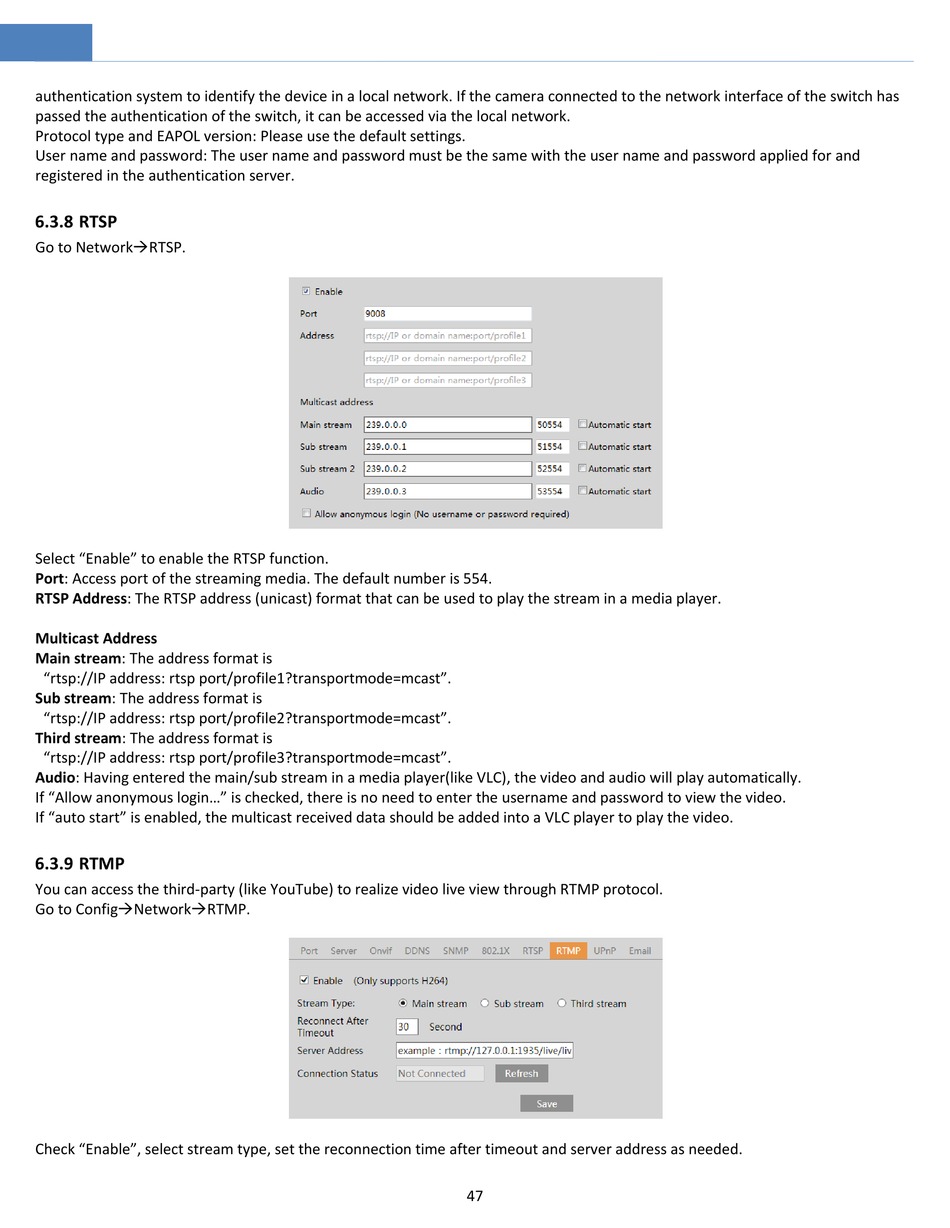

6.3.8 RTSP

Go to NetworkRTSP.
Select "Enable" to enable the RTSP function.
Port: Access port of the streaming media. The default number is 554.
RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player.
Multicast Address
Main stream: The address format is
"rtsp://IP address: rtsp port/profile1?transportmode=mcast".
Sub stream: The address format is
"rtsp://IP address: rtsp port/profile2?transportmode=mcast".
Third stream: The address format is
"rtsp://IP address: rtsp port/profile3?transportmode=mcast".
Audio: Having entered the main/sub stream in a media player(like VLC), the video and audio will play automatically.
If "Allow anonymous login..." is checked, there is no need to enter the username and password to view the video.
If "auto start" is enabled, the multicast received data should be added into a VLC player to play the video.

6.3.9 RTMP

You can access the third-party (like YouTube) to realize video live view through RTMP protocol.
Go to ConfigNetworkRTMP.
Check "Enable", select stream type, set the reconnection time after timeout and server address as needed.
