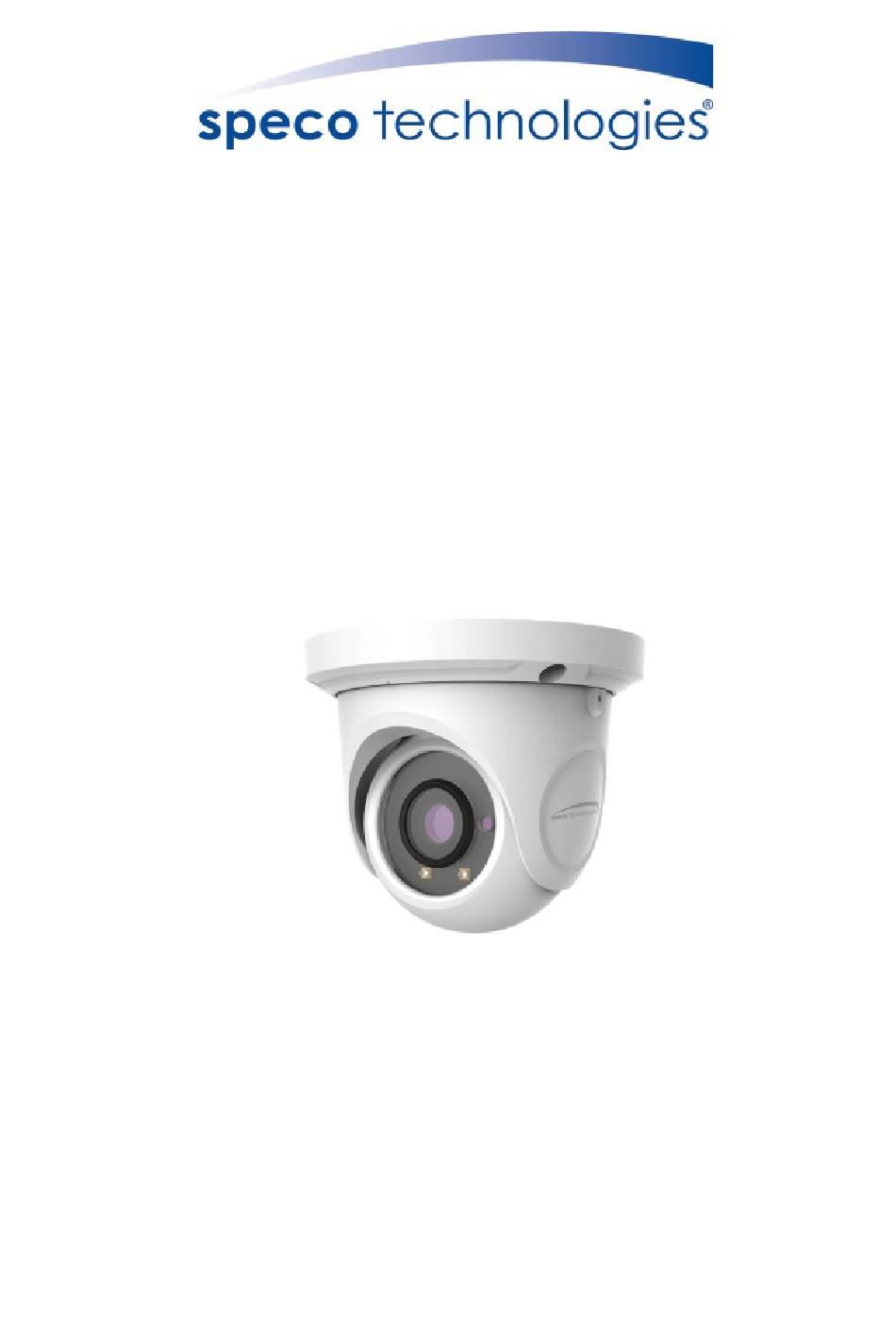

  • Page 1 Quick Start Guide O4DT5...
  • Page 2 Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Any unauthorized changes or modifications could void the warranty. ■ Do not allow water or liquid intrusion into the camera. ■...
  • Page 3 Camera Quick start guide 4 tapping screws PA 4×35 ×4 Plastic plug Drill template Rubber plug Screwdriver Junction box Overview Overview MIC in connector Ethernet connector CVBS connector DC power connector...
  • Page 4 DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ① Loosen the nut from the main element. ②...
  • Page 5 Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera and the junction box. ① Open the mounting base and the upper cover of the junction box. Mounting base Upper cover ②...
  • Page 6 ③ Mount the rubber plug to the gap of the mounting base of the camera and then fasten the camera onto the junction box. Rubber plug ④ Route the cables through the cable hole and connect the cables. Then reinstall the upper cover onto the junction box.
  • Page 7 ⑤ Adjust the camera to obtain an optimum angle by loosening the lock screws. Before adjustment, preview the image of the camera on a monitor. After that, tighten the lock screws to finish the installation. Lock screw Web Operation and Login IP Scanner can search for the device on the local network.
  • Page 8 O4DT5 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
