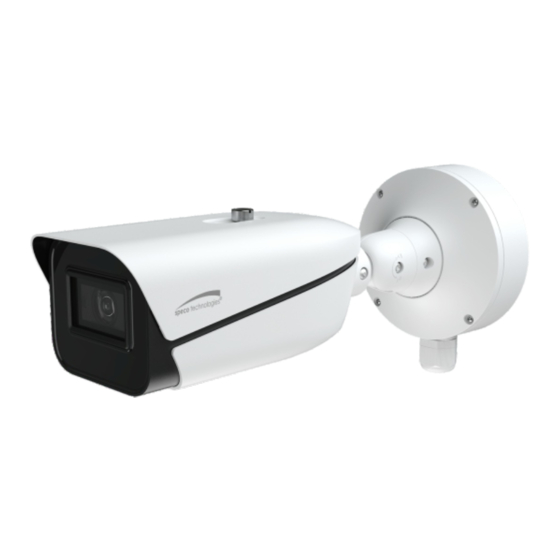

- Page 1 Quick Start Guide O4BM...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 CVBS&DC Terminal for 12VD Drill template Screwdriver IN cable C/24VAC power Overview Overview 10-pin Interface Network Interface Audio InInterface Audio Out Interface DC12VPower Interface AC24VPower Interface SDcardslot Zoom- Reset CVBS&DC Zoom+ 10-pin Interface： INInterface ALM-I ALM-O RS 485 12V+ CVBS DC12V Output CVBS Output RS 485 Interface...
-
Page 5: Installation
Reset: Press Reset button for about 10s when the camera is powering on to restore the default settings. Installation Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. Please install the camera in a dry environment. - Page 6 63.6 (mm) Ø155.4 63.6 Mounting Base 4-Ø7.0 Ø90.0 ④ Mount the junction box to the wall. 6.5x38mm If conduit pipe is not Rubber o-ring used, apply weatherproofing sealant to prevent water intrusion.
- Page 7 ⑤ Connect the cables. Earth wire connection ⑥ Coilupthesecablesandthenattachthecamera onto the junction box.
- Page 8 ⑦Bracket adjustment-Before adjustment, preview the image of the camera on a monitor and then loosen the lock screws to adjust view angle of the camera. After that, tighten the lock screws. ⑧ Open the cover of the camera as shown below. Press T/W to obtain an optimum image.
- Page 9 ② Install IP Scanner from the CD and run it after installation.Or download from https://www.specotech.com/ip-scanner/ 5C:F2:07:24:68:B9 O4BM ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
