Summary of Contents for Kipp & Zonen SUV5

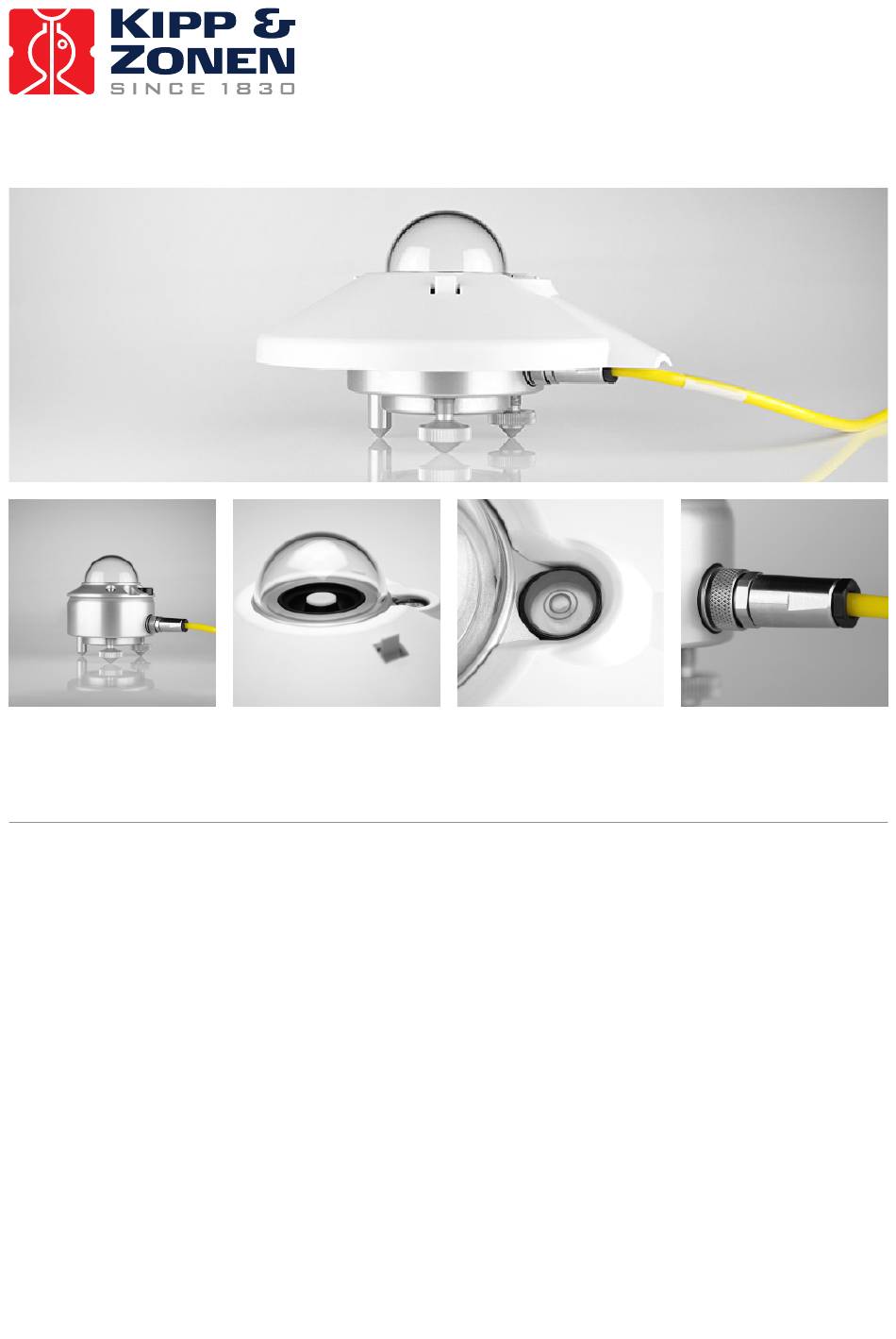

- Page 1 Instruction Manual SUV5 • Smart UV Radiometer...
-
Page 3: Important User Information
Dear customer, thank you for purchasing a Kipp & Zonen instrument. It is essential that you read this manual completely for a full understanding of the proper and safe installation, use, maintenance and operation of your new SUV5 series radiometer. -
Page 5: Declaration Of Conformity
The Netherlands declares under our sole responsibility that the product SUV5 Smart UV Radiometer to which this declaration relates, is in conformity with European Harmonised Standards as published in the Official Journal of the EC, based on the following standard... -
Page 7: Table Of Contents
Declaration of Conformity ................................................................Introduction ..................................................................1.1.1 The SUV5 broad-band UV Radiation ..................................................1.1.2 Spectral response of SUV5 radiometer ................................................Key parts of the SUV5 radiometer ..................................................... Installation ..................................................................Included with the product ........................................................Tools required ................................................................Location and support ............................................................ - Page 8 Specifications ................................................................Optical and electrical ............................................................Dimensions and weight ..........................................................Trouble shooting ..............................................................Output signal not present or incorrect ................................................. Frequently Asked Questions ........................................................ Customer support ..............................................................Appendices Modbus® .................................................................... Modbus® commands ............................................................. Input registers ................................................................Holding registers ..............................................................Read input register ..............................................................
-
Page 9: Introduction
Voltage or Current outputs are also included for devices that have high-level analogue inputs or current loop interfaces. The SUV5 is available in two versions. One has an analogue voltage output of 0 to 1 V, the other has an analogue current output of 4 to 20 mA. -
Page 10: Spectral Response Of Suv5 Radiometer
1.1.2 Spectral response of SUV5 radiometer The accuracy of the SUV5 radiometers is mainly determined by the properties of the band pass filter. The figure below shows the spectral response of a SUV5 on a logarithmic scale. A linear plot of the SUV5 relative spectral response attached to the calibration certificate. - Page 11 The SUV5 can be delivered with a waterproof plug pre-wired to a high quality signal cable, typically this is 10 m long but other lengths are available. The instruments can also be ordered without a cable or with a plug only, for the user to fit their own cable.
-
Page 12: Key Parts Of The Suv5 Radiometer
1.2 Key parts of the SUV5 radiometer glass dome di usor detector bubble level sun shield connector desiccant housing fixed foot adjustable feet... -
Page 13: Installation
Radiometer fixing kit; 2 each of stainless steel M5 x 80 mm screw, nut, flat washer, nylon insulation ring 2.2 Tools required The tools required to fi an SUV5 radioometer to a support are a 4 mm (M5 socket head screw) Allen key and a 8 mm (M5 nut) wrench / spanner. -
Page 14: Location
2.4.2 Mounting The SUV5 radiometer is provided with two holes for 5 mm bolts. Two nylon insulation rings and two each of stainless steel bolts, washers and nuts are provided in the fixing kit. The radiometer should first be secured lightly with the bolts to a solid and stable mounting stand or platform as shown below. -
Page 15: Levelling
2.5 Electrical connections The SUV5 radiometers uses an 8-wire cable with pre-wired waterproof connector. Cables are available at di erent lenghts. The colour code of the wires and the connector pin numbers are shown below and on the instruction sheet. -
Page 16: Power Connection
2.5.1 Power connection The minimum power supply voltage for SUV5 radiometers is 5 VDC. However, for optimal performance it is advised to use 12 VDC, especially when long cables are used. 5-volt power can only be used in combination with a short cable, maximum 10 m. -
Page 17: Data Connection
The connection depends on the use of a RS-485 to USB converter. The converter must have galvanic isolation between the inputs and outputs to prevent possible damage to the SUV5 digital interface. This is particularly an issue with portable computers (laptops, etc.) in which the power supplies can generate large voltage spikes. -
Page 18: Analogue Voltage Output
The slaves may be a SUV5 radiometer or any other Modbus® devices. If a SUV5 radiometer is the last device on the network a line terminator (LT), consisting of a 120 Ω or 150 Ω resistor, must be connected between terminals A/A'/- and B/B'/+. Never place this line termination on the derivation cable. -
Page 19: Accessories
CMB1 mounting bracket to fix and adjust a mounting rod to a mast, pole or wall 3.3 Cables For the SUV5 di erent cable lengths are available with a pre-wired waterproof connector plug. Also a loose connector can be ordered for you to fit to your own cable. -
Page 21: Smartexplorer Software And Modbus® Communication
4. SmartExplorer software and Modbus communication ® The SmartExplorer software allows you to configure a smart sensor and to collect real-time data. SmartExplorer runs on a PC with Windows Vista, 7 or 8 and when installing downloads the .NET 4.5 frame work from the Microsoft Server. When using the software on site, make sure the software is already installed on your laptop. -
Page 23: Operation And Measurement
5.2 Key parts of the SUV5 radiometer The detector of the SUV5 is a photo diode with a white di usor on top. This is covered with a glass dome to protect it. The dome is made of a special glass type that transmits su cient UV light in the UV-A/UV-B range. The photo diode is read by the Smart interface as well as its temperature. -
Page 24: Housing
For ease of maintenance the bubble level of the SUV5 is visible from above without removing the snap-on white sun shield. The sun shield acts to protect all the external parts and to reduce solar heating of the housing. -
Page 25: Maintenance And Recalibration
6. Maintenance and recalibration SUV5 radiometers are simple to maintain and do not require any special tools or training. There are no service items requiring scheduled replacement. 6.1 Daily maintenance Depending upon the weather conditions dew, glazed frost or hoar frost can be precipitated on the top of the dome and can stay there for several hours in the morning. -
Page 27: Specifications
7. Specifications Kipp & Zonen reserves the right to make changes to specifications and other product documentation without prior notice. 7.1 Optical and electrical Specifications Analogue output • V-version 0 to 1 V Analogue output range* -100 to 400 W/m Analogue output •... -
Page 29: Trouble Shooting
A: With longer cable lengths the impedance increases, however it does not a ect the radiometer sensitivity for the following reason. For the SUV5-V the impedance of the voltage measurement device is at least 1000 times more than the impedance of the radiometer plus cable. -
Page 31: Customer Support
9. Customer support If you require any support for your Kipp & Zonen product please contact your local representative in the first instance. The information can be found in the ‘Contact’ section (home tab) of our website at www.kippzonen.com Alternatively, you can contact us directly at www.kippzonen.com/support Please include the following information: •... -
Page 33: Appendices
Write multiple Registers The SUV5 does not make a di erence between a ‘coil’ and a discrete input. The only di erence is that a discrete input is read only. The SUV5 does not make a di erence between a holding register and an input register. The only di erence is that an input register is read only. - Page 34 Real-time Data A/D Counts PDU address Parameter Type Mode Description IO_ADC1_COUNTS Input voltage sensor 1 in 0.01 V (R18=MSB, R19=LSB) IO_ADC2_COUNTS Not supported, always 0 IO_ADC3_COUNTS Input voltage body temperature sensor in 0.01 V (R22=MSB, R23=LSB ) IO_ADC4_COUNTS Input voltage power sensor in 0.01 V (R24=MSB, R25=LSB) Error reports PDU address...
-
Page 35: Holding Registers
(volt version) SGR4 5-15 V/(W/m²) Pyrgeometer (current loop version) SHP1 7-14 V/(W/m²) Pyrheliometer (volt version) SHP1 7-14 V/(W/m²) Pyrheliometer (current loop version) SUV5 300 - 500 V/(W/m²) UV Radiometer (volt version) SUV5 300 - 500 V/(W/m²) UV Radiometer (current loop version) - Page 36 Register 1 IO_DATAMODEL_VERSION The data-model describes the functions supported by the smart sensor. This document is valid for data-model version: ‘100’ and ‘101’. A di erent implementation of the Modbus® protocol (with new features) could result in a di erent data model ‘that is’ or ‘that is not’...
- Page 37 Register 5 IO_SENSOR1_DATA This register holds the actual data (solar radiation) measured by the sensor. The solar radiation is measured in W/m². If the register IO_SCALE_FACTOR is not set to 0 then you must multiply or divide the data as described under register 4. The raw data from the sensor is calibrated, linearized;...
-
Page 38: Discrete Inputs
Explanation of the received bytes: = MODBUS address = read input registers = number of received data bytes 00 01 = operational mode (mode 1) 00 00 = status flags (none) 00 00 = scale factor = 0 = 1x 03 E5 = 997 decimal = sensor 1 data in W/m²... -
Page 39: Coils
A.6 Coils Device control Coil Parameter Def. Mode Description IO_CLEAR_ERROR Select normal operation and clear error (1=clear error) 11 to 17 FACTORY USE ONLY IO_RESTART_MODBUS Restart the device with modbus® protocol FACTORY USE ONLY IO_ROUNDOFF Enable rounding of sensor data IO_AUTO_RANGE Enable auto range mode (0=no auto range) IO_FASTRESPONSE... - Page 40 The IO_VOID_DATA_FLAG and bit 0 of the IO_STATUS_FLAGS are cleared when the IO_VOID_DATA_FLAG is read by the computer. Discrete input 3 IO_OVERFLOW_ERROR This discrete input is raised when an out of range condition occurs and the sensor data (see IO_SENSOR1_DATA) is above the maximum value specified by the calibration program or above 29,999.
-
Page 41: Read Write Discrete Coils
If IO_AUTO_RANGE is set then the sensor is not calibrated and could produce more digits, than there are significant digits. Coil 22 IO_FASTRESPONSE Setting this coil enables the fast response filter. This filter increases the step response of the sensor. The default value for SUV5 radiometers is OFF. -
Page 42: Requesting Serial Number
Coil 23 IO_TRACKING_FILTER Setting to this coil enables the tracking filter. The tracking filter reduces the noise of the signal. However, when the filter is on, the step response on a sudden signal change is decreased. The smart sensor uses variable filter constants to minimize the e ect on the step response. -
Page 43: Simple Demonstration Program
A.11 Simple demonstration program The simple ‘C’ program below will show how to read the sensor data and how to deal with errors. The program will read the registers: ‘operational mode, status flags, scale factor, and sensor data’ from Modbus® device with address 2 into registers uOperationMode, uStatusFlags, iScaleFactor and iSensorData. -
Page 45: Radiometer Physical Properties
For the SUV5 radiometers the physical sensitivities are converted to a digital and analogue output that is identical for all sensors. The SUV5-V versions all have an analogue output of 0 to 1 Volt for -100 to 400 W/m². The SUV5-A outputs are 4 to 20 mA for 0 to 400 W/m². -
Page 46: Operating Temperature
The maximum irradiance is defined as the total irradiance level beyond which the output is no longer linear and out of specifications. The analogue output for the SUV5 is set to 400 W/m², which is su cient under normal atmospheric conditions. - Page 48 Our customer support remains at your disposal for any maintenance or repair, calibration, supplies and spares. Für Servicearbeiten und Kalibrierung, Verbrauchsmaterial und Ersatzteile steht Ihnen unsere Customer Support Abteilung zur Verfügung. Notre service 'Support Clientèle' reste à votre entière disposition pour tout problème de maintenance, réparation ou d'étalonnage ainsi que pour les accessoires et pièces de rechange.
