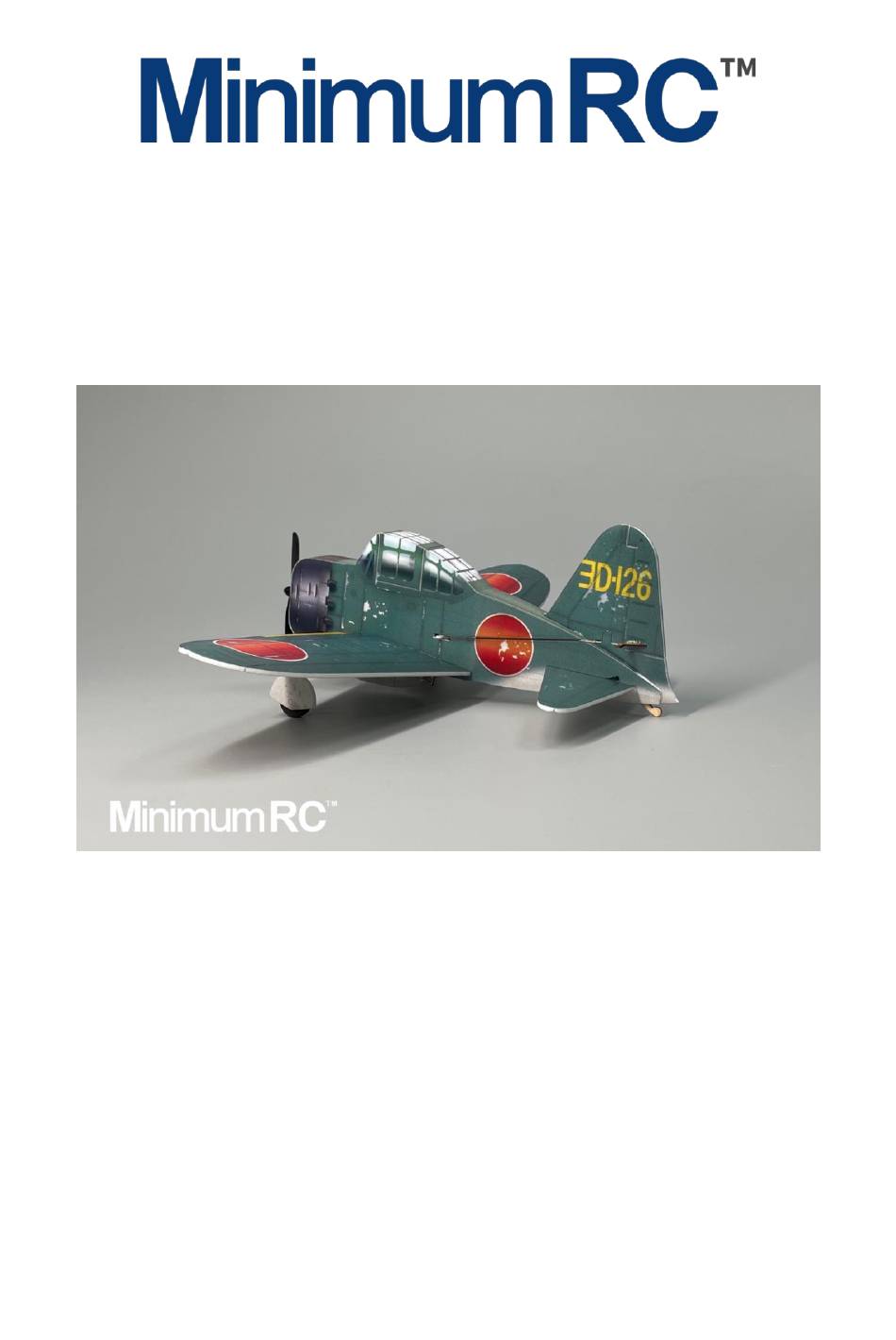

A6M5-D
Assembly Instructions
Important notification
1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for
bonding wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts.
2.Please wait for the glue to dry and solidify in each installation step before the next installation.
3.Please avoid using flame to heat the heat shrinkable tube on the model. Electric iron shall be
used for heating.
4.Please use razor blade to remove the parts from the plate. Do not tear the parts by force.
Advertisement
Related Manuals for MinimumRC A6M5-D
Summary of Contents for MinimumRC A6M5-D
- Page 1 A6M5-D Assembly Instructions Important notification 1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for bonding wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts. 2.Please wait for the glue to dry and solidify in each installation step before the next installation.
- Page 2 1. Fuselage internals. 2. Bond the inner structure of the fuselage with 502 glue.
- Page 3 3. Connect the servos to a powered receiver. Bind the receiver with your transmitter to make the servos arms return to their neutral point. Test whether the servos are working normally, and install the servo arms according to the position shown in the picture. Note: Please make sure that the servos have been tested and installed in strict accordance w ith the following picture.
- Page 4 5. Connect the receiver to the motor, install the propeller and test whether the rotation direction of the motor is correct. If the motor is reversed, reverse the motor line. Test whether the corresponding relationship between the three steering gears and th e transmitter channel is correct (as shown in the figure).
- Page 5 7. Align the scribed line on the inner side of the fuselage and fix the wooden s tructure with glue. 8. Remove the propeller. Press the top plate and bottom plate of the fuselage and bend them into the corresponding shape of the fuselage contour.
- Page 6 9. Cut out the illustrated orange area on the sticker to avoid interference with the motor gears.
- Page 7 11. Combine the fuselage. 12. Fix the battery cover magnet with glue and cover it with stickers. 13. The battery cover can be opened, and can be adsorbed in the closed position by magnet.
- Page 8 14. Paste the fuselage sticker and install the propeller. 15. Use the end of a carbon fiber rod to score through the half -cut line of the wing surface. 16.Use the end of a carbon fiber rod to score through the aileron half-cut line of the wing surface.
- Page 9 17. Use the end of a carbon fiber rod to score through the half -cut line of the tail surface. 18. Use the end of a carbon fiber rod to score through the half -cut line of the rudder surface. 19.
- Page 10 20. Attach the wings to the fuselage. 22. Insert the copper axle core into the center of the wood wheel core.
- Page 11 23. Glue the tires. 24. bend the steel wire with pointed nose pliers as shown in the picture. 25. bend the outer end of the steel wire with pointed nose pliers.
- Page 12 26. Install the landing gears. 27. Fix the landing gear cover plate with circular stickers, which can be reinforced with glue. 28. Install dummy fuel tank.
- Page 13 29. Install tail landing gear. 30. Install aileron control horns. 31. Install rudder control horns.
- Page 14 32. Install elevator control horns. 33. Use heat shrinkable tube to connect tail push rod and steel wire clip. 34. Use heat shrinkable tube to connect the pull rod and wire clip, then use glue to fix them.
- Page 15 35. Attach the steel wire hooks to the control horns. 36. cut the carbon rod to proper length and connect the wire hooks with heat shrinkable tubes. 37. Use heat shrinkable tube to connect aileron steel wire clips.
- Page 16 38. Attach the steel wire clip to the aileron servo arm. 39. Connect the wire hooks with heat shrinkable tubes. 40. Paste the carbon fiber rod at the broken line at the bottom of the wing to increase the strength.
- Page 17 41. The battery is directly placed in the battery compartment. 42. Optional accessories: pilot. Cut off the cockpit cover along the scribed line and install the pilot base and pilot. Note: the installation pilot will change the vertical center of gravity of the aircraft. It is recommended to remove the pilot during flight.
- Page 19 Assembly complete! Maiden flight ·The center of gravity of the aircraft is located at the front score line of the wing. ·The active range of ailerons, elevator and rudder is 5mm on both sides. ·choose grass land for maiden flight.
