Orbit MAX1C Manual page 9

ASSEMBLY INSTRUCTIONS

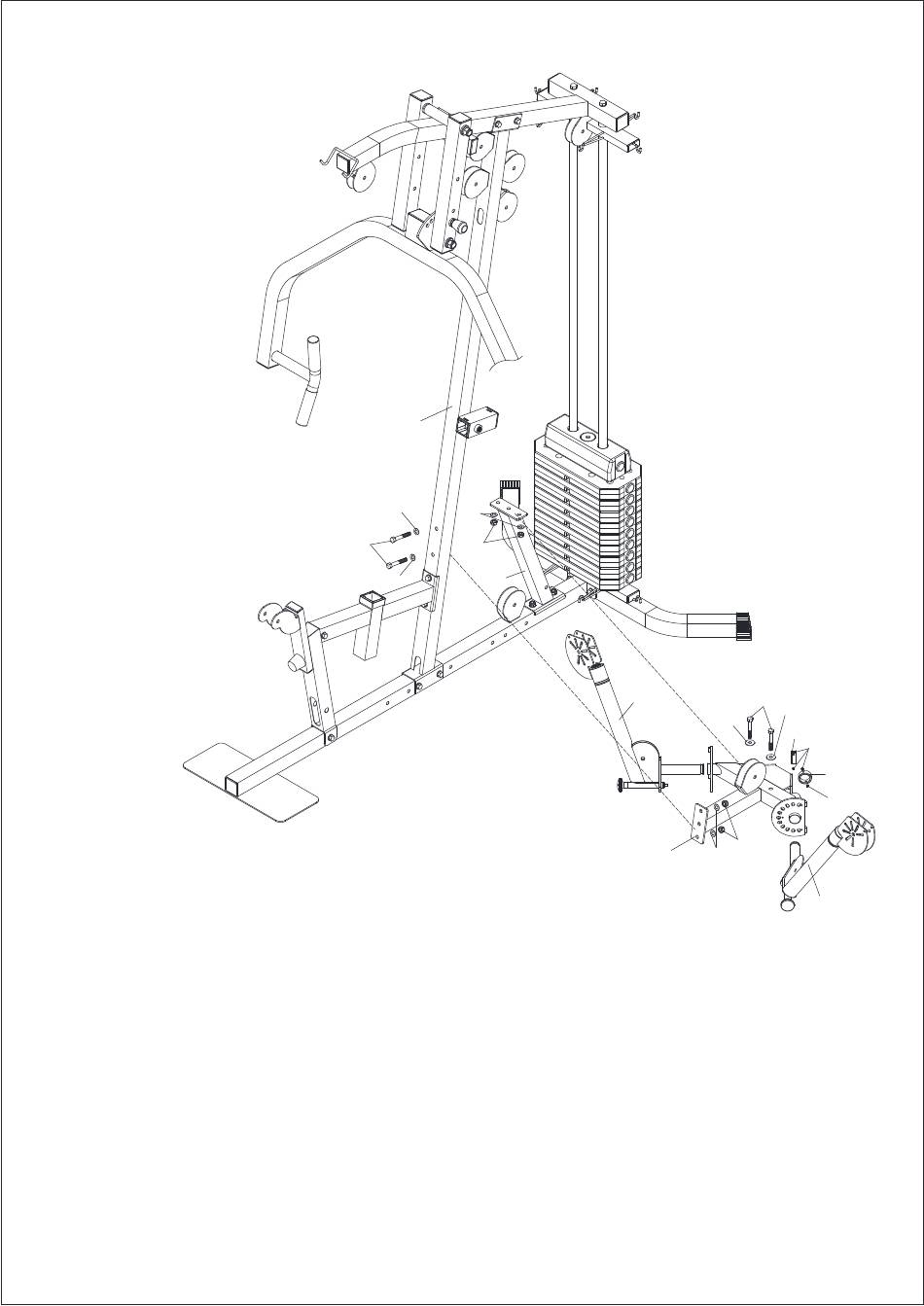

STEP 5
1. Attach the Arm Bracket (14) to the Support Frame (13), using two M10X65mm Hex Bolts
(86), two Washers( ￠28X￠10 ) (104), two M10 Washers (97) and two M10 Nylon Nuts (101).
2. Attach the Arm Bracket (14) to the Main Frame (4), using two M10X70mm Hex Bolts (85),
four M10 Washers (97) and two M10 Nylon Nuts (101).
3. Insert the Arm (15) into the Arm Bracket (14), then attach the Axle Collar (40) to the Arm (15),
using four M6X6mm Screws (106).
4
97
97
85 101
13
97
-8-
86
15
104
104
40
101
14
97
106
40
106
15
