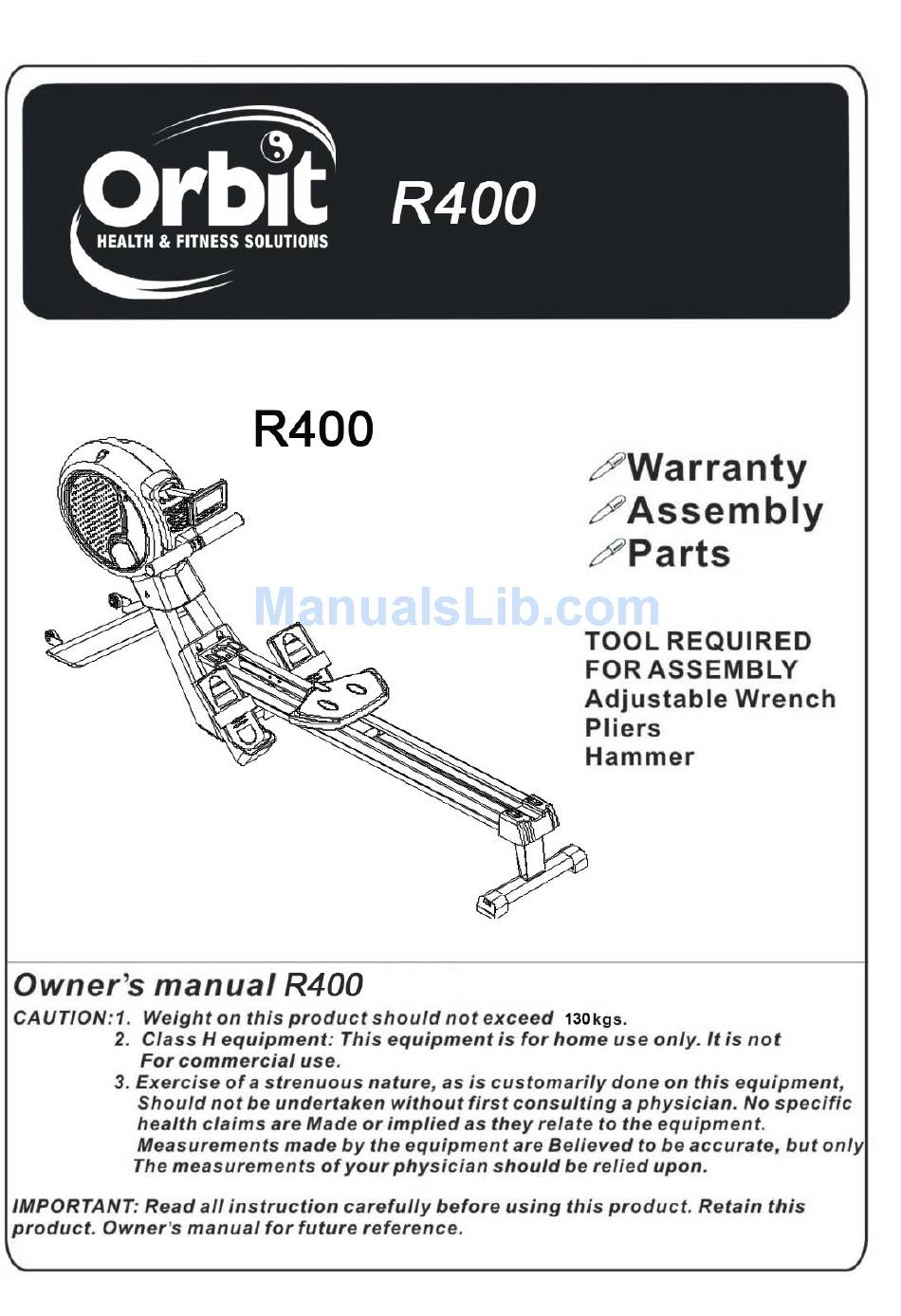

Summary of Contents for Orbit R400
- Page 2 KIT TOOL & SCREW SET - List R400 I-1 Allen Bolt M8x16mm I-2 Curved washer for ? 8*? 19*2T bolt(8) I-3 Screw M5*12 (8) Screwdriver (1) (Pedal Wrench) Allen Key(1) I-4 Screw M5*10 (4)
-
Page 3: Assembly Instruction
Assembly Instruction... - Page 4 Step 1 and secure the Rear Support with 1. Attach the Rear Support (N) with Slippery Rail (M-L,M-R) M8xP1.25x20L Bolt (N-5),Curved Washers (N-4) and Carry Bar (N-3). Step 2 Attach Seat (K-1) onto the Rolling Slider ( K) with M8*16mm Allen Bolt (I-1) and Curved Washers (I-2)
- Page 5 Step 3 Slide the Seat (K) onto the Slippery Rail (M-l , M-R). Step 4 Screws (I-3). Attach the Pedal with band (J-3 & J-5 ) ,then attach onto the pedal support ( J ) with...
- Page 7 Step 5 1.Please pay special attention to this step. Hole size on slippery rails are larger than bolt size, when assembling the pedal holder (J) with the slippery rail using I-1 bolts, please do not fasten the bolts until it's tested that the slippery rails are parallel and the saddle can move smoothly along the rails"...
- Page 8 Step 7 Main Frame (D) M8*16mm Allen Attach the Slippery Rail (M-l , M-R) with the by using Bolt (D-13) and Curved Washers (D-14) Finally, attach the Cover (D-15) onto the Main frame (D) with M5x10L Washer (D-16).
-
Page 9: Explosion Drawing
Explosion Drawing... -
Page 10: Parts List
Parts List ROWER MACHINE Description Quantity COMPUTER SCREW FOR FIXING COMPUTER SUPPORTING TUBE FOR BRACKET BRACKET FOR FIXING COMPUTER SCREW FIXING CAP CURVED WASHER φ6xφ16x1t NYLON NUT M6 HEXAGONAL SCREW M6xP1.0x57L BRACKET FOR ROLLER DRIVING PULLEY ROLLER SCREW M6x50L SCREW NYLON NUT 3/8"x7t NYLON NUT M6 SCREW M8xP1.25x35L(6m/m) - Page 11 D-21 SCREW M4x8L D-22 CONNCTION PIN OF COVER D-23 SCREW M4x12L D-24 DIVERSION OF FAN D-25 POLE D-26 FIXING SOCKET OF FAB D-27 SCREW M3x8 D-28 COVER OF FAN D-29 FAN COVER D-30 SCREW M5x8L D-31 DC WIRE D-32 SCREW M5x8L D-33 CONNECTION BAR HANDLABAR...
- Page 12 ADJUSTING CAP SCREW 3/16"（#10）x3/4" CARRY BAR FOR TRANSOPORTATION CURVED WASHER φ8xφ16x2t SCREW M8xP1.25x20L(6m/m) REAR COVER FOR SLIDER AC ADAPTOR -11-...
- Page 13 INSTRUCTION MANUAL OF SM5880-64 【 FUNCTION BUTTONS】 UP / DOWN： To press these two buttons through available selection. adjust the function value upward and downward. ENTER： To confirm your selection. During training, press the button to scan each display function. START / STOP：...
- Page 14 (level 1 ~ level 16). C. When the any target value of you set count down to zero or you have pressed the STOP button, the monitor will stop and display the average figure of TIME/500M. 3-2. PROGRAM User can select the program profile from P1 to P12 by pressing UP/DOWN/ENTER button, after selected, user can preset the exercise level from L1 to L16 by pressing UP/DOWN/ENTER button, also can adjust the level during exercising.
- Page 15 C. When the race is over, you can press the START to have a race once again, press reset to leave the state of the race. 3-5. USER Entered into this function, you may set the favor program profile for training, press UP/DOWN/MODE button to set up exercising graph you wish.
