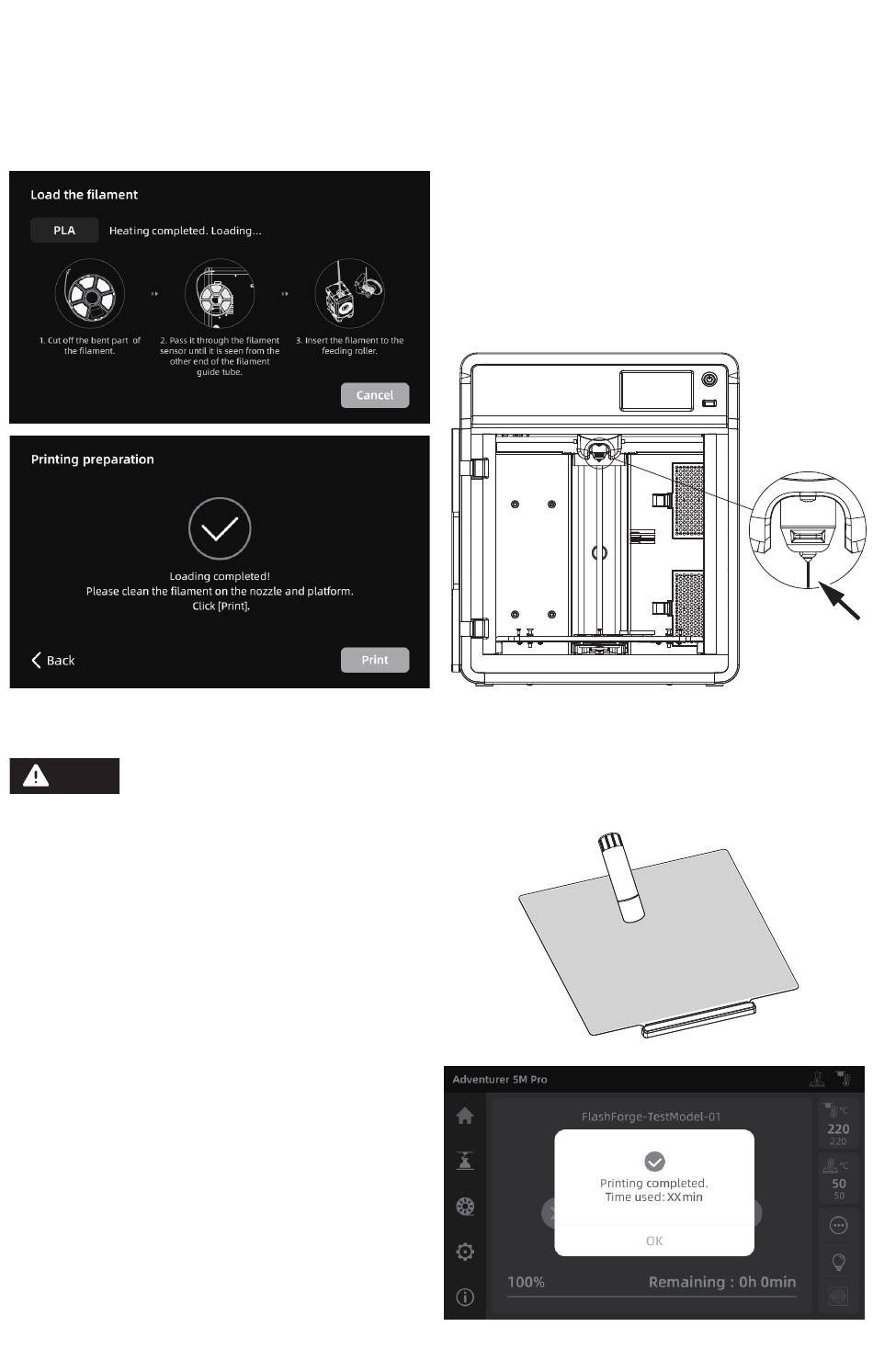

C3. Feeding will begin after heating. Successful filament extrusion from the nozzle indicates
successful loading. Lastly, confirm the filament guide tube is properly inserted.
If no filament is extruded, manually insert the filament into the inlet and click [Back]
Note
to retry. Feel for filament movement until it is extruded.
5. Please clear the filament residues on the nozzle
and platform. Users must apply glue to the platform
so as to improve adhesion for the first print.
6. Click [Print] and the machine starts printing
the built-in file (configured for PLA material).
09
