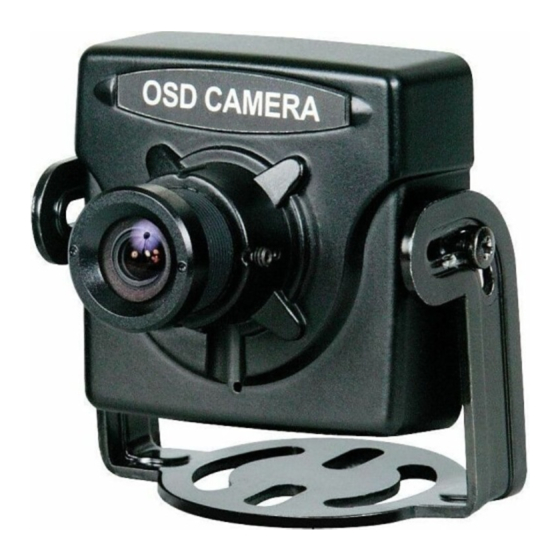

Speco HTINT40T1 Quick Start Manual

HD-TVI 2MP Intensifier® T Indoor Mini-Board Camera
with True WDR, UTC, 2BNC out for TVI & CVBS
HTINT40T1
3.6mm fixed lens, black housing

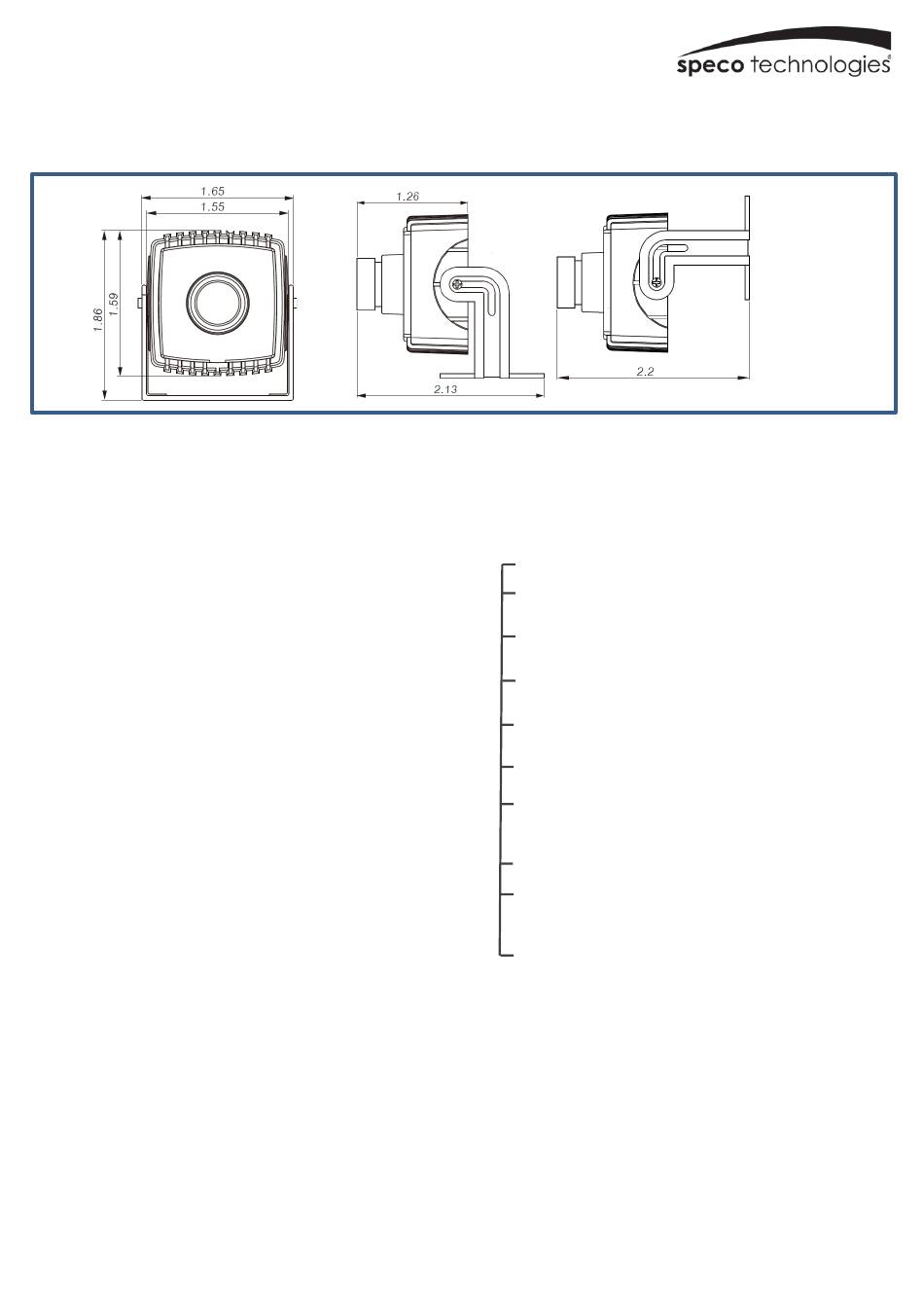

DIMENSIONS

Unit : inch

FEATURES

• PRESET (Indoor/Outdoor/Lowlight/Hallway/Lobby/Elevator)
• Full HD resolution over coax (HD-TVI)
• Supports up to Full HD 1080p @ 30fps
• True WDR operation
• Superior low-light performance
• Amplify existing light with no distance limitation
• 3.6mm fixed lens
• Full OSD operation through onboard control and UTC (TVI)
• Additional 960H analog output (BNC out in Yellow)
• Signal distance up to 1600 feet*
• 12VDC operation
• 5 year warranty

SPECIFICATIONS

Image Sensor.................. 1/3" Progressive Scan CMOS, 2MP
Minimum Illumination....... 0.001 lux (INTENSIFY 'On')
Effective Pixels................ 1984 (H) x 1105 (V)
Total Pixels...................... 2000 (H) x 1121 (V)
Scanning System............ Progressive
S/N Ratio......................... More than 50dB
Output Resolution............ 1920x1080 @ 30fps
Video Output.................... 1.0Vp-p / 75 Ohms
Electronic Shutter............ Auto / Manual (1/30 – 1/30,000 sec.)
Day / Night....................... Auto / Color / BW / External
Test Monitor Output......... CVBS (BNC out in Yellow)
Communication............... UTC (up the coax)
Power............................. 12VDC (power supply not included)
Power Consumption........ 12VDC, 200mA max.
Operating Temperature....14° F – 120° F
Unit Dimensions.............. 1.65" (W) x 1.86" (H) x 2.2" (L)
Unit Weight...................... 7 oz.
Certifications.................... FCC, RoHS
Signal Distance............... Up to 1600 feet
(depending on coax quality)*

OSD MENU TREE

PRESET MODE
• INDOOR • OUTDOOR • LOW LIGHT
MAIN SETUP
LENS

EXPOSURE

• SHUTTER
• BRIGHTNESS
Backlight
• WDR • BLC • HLC

DAY / NIGHT

• B/W • EXTERN
• COLOR

WHITE BAL.

• AWB • COLOR GAIN

SPECO DNR

• LOW • MIDDLE


• SHARPNESS • GAMMA
• ACE • DEFOG

MOTION

SYSTEM

• OUTPUT • FRAME RATE
• COLOR SPACE • COLOR BAR
EXIT

OSD MENU Details

IRIS : Controls various settings related to the lens.
ELC (Electronic Light Control) : Used with manual lens only, stay with this
mode for this item.
EXPOSURE : Adjusts exposure settings.
BRIGHTNESS : Adjusts image brightness. (0~ 20)
SHUTTER : Auto / Manual Shutter can be selectable
- AUTO : Shutter can be selectable automatically.
- FLICKER(Flicker Less) : Selects this when picture flickering. The picture
flickering can be caused by a clash with the frequency of the
installed lighting.
- Manual : Controls the shutter speed manually from 1/30 ~1/30000
INTENSIFY : Sets the desired multiple of the digital exposure length.
(OFF/x2 ~ x32)
AGC(Auto Gain Control): Adjusts the AGC level. (0~10)
200 New Highway, Amityville, NY 11701
800-645-5516 / www.specotech.com
Accessories
1 Bracket
2 Screws
(for mounting)
2 Screws
(for bracket)
• HALLWAY • LOBBY • ELEVATOR
• INTENSIFY • AGC
• AUTO
• HIGH
• MIRROR
• FLIP
• PRIVACY
• FREQ • COM. • IMAGE RANGE
• LANGUAGE
• CAMERA TITLE • RESET
