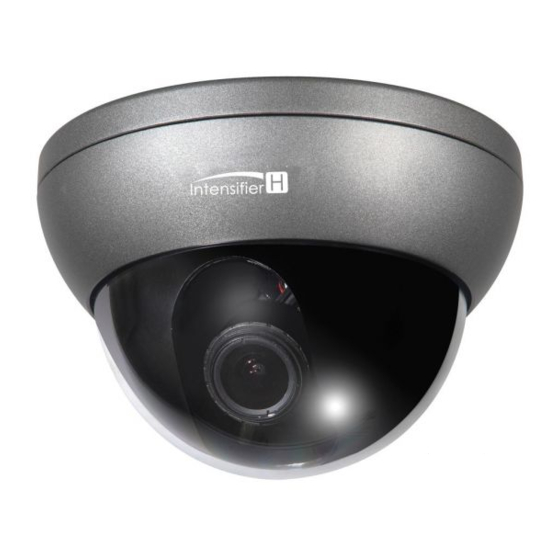

Speco HT7246H Instruction Manual

960h intensifier3 series weatherproof dome camera with chameleon cover, weatherproof bullet camera with mount plate, weatherproof dome camera
Hide thumbs Also See for HT7246H:
Table of Contents

Advertisement

Quick Links

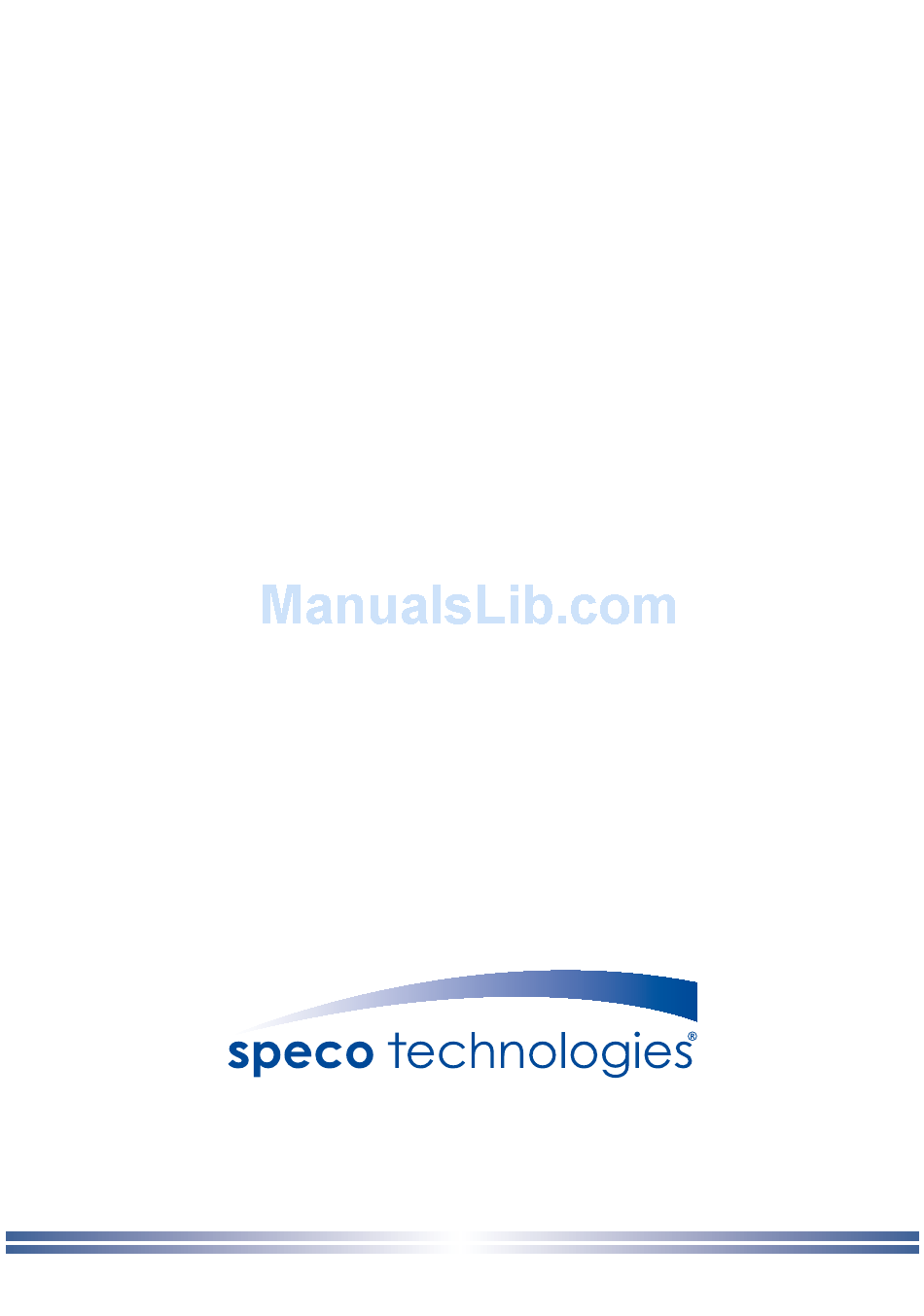

INSTRUCTION
MANUAL
960H Intensifier3™ Series
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
HT7246H
(Weatherproof Dome Camera with Chameleon™ Cover)
HTINTB8H / HTINTB8HW
(Weatherproof Bullet Camera with mount plate)
HTINTD8H / HTINTD8HW
(Weatherproof Dome Camera)
Rev. 11/01/2012

Advertisement

Table of Contents
loading

Related Manuals for Speco HT7246H

Summary of Contents for Speco HT7246H

  • Page 1 HTINTB8H / HTINTB8HW (Weatherproof Bullet Camera with mount plate) HTINTD8H / HTINTD8HW (Weatherproof Dome Camera) Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 11/01/2012...

  • Page 2: Table Of Contents

    Contents Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-11 ◑ Specifications ..........12-14 ◑ Camera Dimension ........15,16 ◑ Features ............17,18 ◑ OSD Menu Details ........19- 33 ◑...

  • Page 3: Precautions

    Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of where temperatures are between cause the camera to work improperly.
  • Page 4 CAUTION CAUTION CAUTION RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK).

  • Page 5: Safety Instructions

    Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑...

  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: 1) HT7246H • 1 Video Test Connector, Power Jack • 1 Chameleon Cover • 1 Wrench • Set Screw - 3 Tapping Screws 4x40 - 3 Plastic Anchor 2) HTINTB8H, HTINTB8HW •...

  • Page 7: Camera Installation

    CAMERA INSTALLATION...

  • Page 8: Camera Installation

    CAMERA INSTALLATION Compatibility 1) HT7246H INTWM INTPM CVCJBD 2) HTINTB8H, HTINTB8HW CVCJBB INTJBS INTCM...
  • Page 9 CAMERA INSTALLATION Compatibility 3) HTINTD8H, HTINTD8HW INTWM INTPM JB03TG...
  • Page 10 To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. CAMERA INSTALLATION 1. HT7246H PLASTIC ANCHOR 6x30, 3EA VANDAL DOME BASE ASSEMBLY...
  • Page 11 CAMERA INSTALLATION 2. HTINTB8H, HTINTB8HW CAMERA ASSEMBLY BASE ADAPTOR BRACKET TAPPING SCREW 4X25, 4EA HEXAGON SOCKET SCREW M5X10, 4EA...
  • Page 12 CAMERA INSTALLATION 3. HTINTD8H, HTINTD8HW DOME BASE TAPPING SCREW 4X25, 3EA DOME ASSEMBLY HEXAGON SOCKET SCREW M6X20, 2EA DOME BODY...

  • Page 13: Specifications

    960H Intensifier3 (Weatherproof Dome Camera with Chameleon™ Cover) DC Auto Iris Varifocal Lens 2.8-12mm ■ HT7246H SPECIFICATIONS HT7246H MODEL Image Pick-Up Device 1/3” 960H Sony Super HAD CCD TV System NTSC, PAL Total Pixels NTSC=1020(H) * 508(V) / PAL=1020(H) * 596(V)
  • Page 14 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)

  • Page 15: Specifications

    Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)

  • Page 16: Camera Dimension

    CAMERA DIMENSION 1) HT7246H 5.10” dia 5.10” dia 3.93” dia 2) HTINTB8H, HTINTB8HW 11.02” 3.46” 5.90” 5.03” 10.51”...
  • Page 17 CAMERA DIMENSION 3) HTINTD8H, HTINTD8HW 5.47” dia...

  • Page 18: Features

    High quality Pictures to be captured in very low light condition. More Powerful WDR in strong back lighting. Your camera allows you to get a clear image. SPECO DNR The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions.

  • Page 19: Features

    FEATURES Motion Detection with Alarm Output Built in motion detector with adjustable areas of coverage will Send a signal to an external alarm device when motion is detected. Privacy Mask It also has the ability to mask up to 8 areas of the picture where Viewing is not desired.

  • Page 20: Osd Menu Details

    Preset Mode ● SPECO TECH 1.PRESET MODE INDOOR 2.MAIN SETUP 3.EXIT RESET 1. Preset : INDOOR / OUTDOOR / LOW LIGHT / HALLWAY / LOBBY / ELEVATOR. - Used for a quick and easy setup for the installation environment. Menu Setup ●...

  • Page 21: Exposure Setting

    ● DC : You can adjust the minimum shutter and maximum value of shutter when DC Lens mode is selected. 2. Press LENS to choose from the sub menu items as listed below. - BRIGHTNESS : Adjusts the video brightness (selectable from 1-70) - IRIS SPEED : Adjusts Iris control speed of the DC lens.
  • Page 22 ◆ BRIGHTNESS : Adjusts the video brightness. ◆ SHUTTER : You can select either auto or manual shutter. * A.FLK : Select this when you see picture flicker, this can happen when the frequency of the local lighting clashes with the camera. * ESC : Select this to control the shutter speed automatically.
  • Page 23 WDR (Wide Dynamic Range) Setting ● WDR illuminates darker areas of an image while retaining the same light level for brighter area to even out the overall brightness of images with high contrast between bright and dark areas. 1. When the SETUP menu screen is displayed, select “WDR” by using the Up and Down buttons so that the arrow indicates ‘WDR’.
  • Page 24 1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Up and Down buttons so that the arrow indicates ‘BACKLIGHT’. MAIN SETUP 1.LENS 2.EXPOSURE 3.WDR 4.WHITE BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY/NIGHT AUTO 8.SPECIAL 9.RETURN SAVE 2. Select a desired mode using the Left and Right buttons depending on the camera purpose.

  • Page 25: Speco Dnr Setting

    ◆ OFF : Deactivates SPECO DNR. Noise is not reduced. ◆ ON : Activates SPECO DNR so that noise is reduced. 3. Set the SPECO DNR mode to 'ON' and press the SET button, then you can adjust the noise reduction level. ☞...
  • Page 26 Down buttons so that the arrow indicates ‘DAY/NIGHT’. MAIN SETUP 1.LENS 2.EXPOSURE 3.WDR 4.WHITE BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY/NIGHT AUTO 8.SPECIAL 9.RETURN SAVE 2. Select a desired mode using the Left and Right buttons according to the picture display you want.

  • Page 27: Special Setting

    Special Setting ● 1. When the SETUP menu screen is displayed, select 'SPECIAL' by using the Up and Down buttons so that the arrow indicates ‘SPECIAL’. MAIN SETUP 1.LENS 2.EXPOSURE 3.WDR 4.WHITE BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY/NIGHT AUTO 8.SPECIAL 9.RETURN SAVE...
  • Page 28 2. Select a desired mode using the Left and Right buttons. SPECIAL 1.IMAGE ADJ 2.CAM TITLE 3.SYNC 4.MOTION 5.PRIVACY 6.DIS 7.RETRUN BASIC ◆ IMAGE ADJ. : 1) When the SPECIAL menu screen is displayed, select ‘IMAGE ADJ’ by using the Up and Down buttons so that the arrow indicates ‘IMAGE ADJ'.
  • Page 29 * FONT COLOR: You can change the OSD font color. * SHARPNESS: As you increase this value, the picture outline becomes stronger and clearer. Adjust this value appropriately depending on the sharpness of the picture. * LANGUAGE: You can select the menu language. - NTSC : Korean, English, French, Spanish, Japanese, Portuguese.
  • Page 30 ☞ NOTE ■ When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if you enter one. ■ Only English is available in this mode. ■ If you move the cursor to CLR and press the SET button. To edit a letter, change the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the SET button.
  • Page 31 - ALARM OUT : Trigger the signal from the Alarm Output Terminal of the camera when an object’s movement matched a custom motion type. - DETECT AREA : Defines the motion detection area. - MASK AREA : Specify a detection exception area to mask. Select a mask area number and specify the size and position.
  • Page 32 ◆ PRIVACY : Mask an area you want to hide on the screen. 1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the arrow indicates ‘PRIVACY’. 2) Set up the mode using the 4 direction buttons. - AREA SEL : You can select up to 12 PRIVACY areas.

  • Page 33: Exit Setting

    Exit Setting ● Select a desired EXIT mode using the Left and Right buttons depending on the camera purpose. - SAVE : Save the current settings and exit the MAIN SETUP menu. - NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu. - RESET : Resets the camera settings to the factory defaults.

  • Page 34: Trouble Shooting

    Trouble Shooting ● PROBLEM POSSIBLE CAUSE FCheck the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. FAre the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the FAdjust the monitor controls, as required.
  • Page 36 uMEMO...
  • Page 37 uMEMO...
  • Page 38 uMEMO...
  • Page 39 uMEMO...
  • Page 40 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
