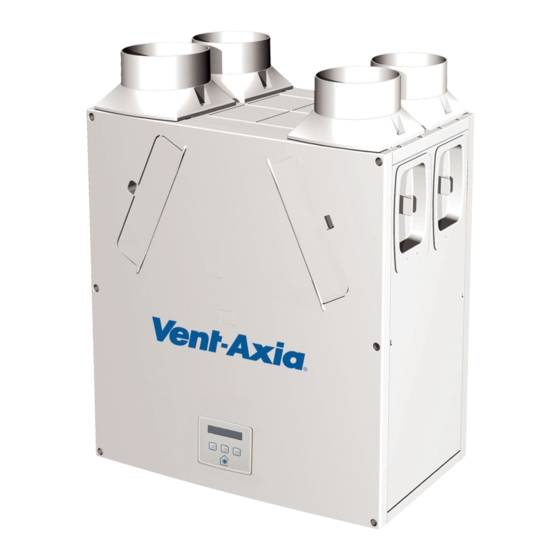

Vent-Axia Sentinel Kinetic MVHR Installation & Commissioning

Hide thumbs Also See for Sentinel Kinetic MVHR:

Installation & commissioning manual (48 pages)

Installation & commissioning (52 pages)

Table Of Contents

Table of Contents

Quick Links

Sentinel

Kinetic MVHR Range

Installation & Commissioning

PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT.

Stock Ref. N°

438222 Kinetic B Right

438222L Kinetic B Left

443319 Kinetic BH Right

443319L Kinetic BH Left

408167 Kinetic FH Right

408169 Kinetic FH Left

443028 Kinetic Plus B Right

443028L Kinetic Plus B Left

408449 Kinetic High Flow Right

408451 Kinetic High Flow Left

Table of Contents

Need help?

Do you have a question about the Sentinel Kinetic MVHR and is the answer not in the manual?

Questions and answers

Summary of Contents for Vent-Axia Sentinel Kinetic MVHR

Page 1 408167 Kinetic FH Right 408169 Kinetic FH Left 443028 Kinetic Plus B Right 443028L Kinetic Plus B Left 408449 Kinetic High Flow Right 408451 Kinetic High Flow Left PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT. Copyright © 2009 Vent-Axia Limited. All rights reserved.
Page 2: Important Safety Information
Sentinel Kinetic MVHR Installation & Commissioning...
Page 3: Table Of Contents
Connecting a System Cooker Hood ..........49 Connecting an opto-coupler (447340) .........49 Wireless Enable Kit (consists of Wireless Receiver and one Wireless Switch) (441865) ............50 Wired Remote Control (443283) ..........51 Isolator Relay Controller (442030) ..........51 Remote LED Indicator (448347) ..........52 Sentinel Kinetic MVHR Installation & Commissioning...
Page 4 Regulations (Part F - Means of Ventilation requirements) for installed performance of a ducted mechanical extract fan when installed in accordance with the instructions in this document. Note: Read in conjunction with the User Instruction Manual 442073 Sentinel Kinetic MVHR Installation & Commissioning...
Page 5: Product Description
Sentinel Kinetic, Sentinel Kinetic F, Sentinel Kinetic Plus & Sentinel Kinetic High Flow The Vent-Axia Sentinel Kinetic, Sentinel Kinetic F, Sentinel Kinetic Plus & Sentinel Kinetic High Flow Mechanical Ventilation/Heat Recovery (MVHR) are heat recovery units designed for the energy efficient ventilation of houses and similar dwellings, conforming to the latest requirements of the Building Regulations document F 2010.
Page 6 A range of sensors can be used to manage system demand and control the ventilation rate. These include an internal humidity sensor, humidity sensors for independent mounting in rooms, wireless receiver and wireless boost switches, sensor, Vent-Wise sensors, manual switches and pull cords. For these alternative control options, see www.vent- axia.com Sentinel Kinetic MVHR Installation & Commissioning...
Page 7: Technical Data
Operating 0% to 95% RH Humidity Storage -20C to +45C Temperature Storage Humidity 0% to 95% RH Software Version For all other technical details, please see the Product Catalogue or our website at www.vent-axia.com Sentinel Kinetic MVHR Installation & Commissioning...
Page 8 Installation Figure 5: Sentinel Kinetic Dimensions Figure 6: Sentinel Kinetic Plus and Sentinel Kinetic High Flow Dimensions Sentinel Kinetic MVHR Installation & Commissioning...
Page 9 Installation Minimum maintenance access area required in front of kinetic units.(Kinetic Plus & hign flow dimensions the same). Sentinel Kinetic MVHR Installation & Commissioning...
Page 10: Sentinel Kinetic Performance Graph For Horizontal Discharge
Sentinel Kinetic Performance graph for Vertical Discharge Volume (l/s) 100% Volume (m Sentinel Kinetic Performance graph for Horizontal Discharge Volume (l/s) 100% Volume (m3/h) Note: Graphs show 2 typical system curves with total unit input power in Watts. Sentinel Kinetic MVHR Installation & Commissioning...
Page 11: Sentinel Kinetic F Performance Graph For Vertical And Horizontal Discharge
Installation Sentinel Kinetic F Performance graph for Vertical and Horizontal Discharge Sentinel Kinetic MVHR Installation & Commissioning...
Page 12: Sentinel Kinetic Plus Performance Graph For Vertical And Horizontal Discharge
Sentinel Kinetic Plus Performance graph for Vertical and Horizontal Discharge Note: Graph shows 2 typical system curves with total unit input power in Watts Sentinel Kinetic High Flow Performance graph for Vertical and Horizontal Discharge Volume (l/s) 1000 100% Volume (m Sentinel Kinetic MVHR Installation & Commissioning...
Page 13: Before Installation Of The Unit
If the orientation of the condensate exit (and the atmosphere spigots) would be better suited on the left of the unit, the front Control Unit and the rear Cable Inlet Plate can be swapped over to allow the unit to be installed in the opposite orientation. Refer to Vent-Axia website (http://www.vent- axia.com/range/sentinel-kinetic.html) for installation instructions in the Opposite Orientation.
Page 14 60mm water seal or a HepVo valve to the building’s foul water drainage system and ensure there is a minimum 3 degree fall to allow condensate drainage. 4. Go to Spigot Installation on page 17. Sentinel Kinetic MVHR Installation & Commissioning...
Page 15 The hole is a clearance hole for a diameter 22 mm pipe and so may vary a little from 60 mm this guidance. 21 mm Sentinel Kinetic MVHR Installation & Commissioning...
Page 16 22mm diameter x 280mm long condensate pipe with worm drive clip. 6. Fit pipe assembly into waste pipe and secure to condensate spigot with worm drive clip. N.B. Always insulate condensate pipe if installing in a cold void Sentinel Kinetic MVHR Installation & Commissioning...
Page 17 Lift unit and locate the steel wall bushes onto the wall bracket. The unit should now be physically installed in its intended operating location. Ensure that the condensate drain is connected as described on page 15. Stand-off feet Sentinel Kinetic MVHR Installation & Commissioning...
Page 18 Installation Sentinel Kinetic MVHR Installation & Commissioning...
Page 19 The unit should now be physically installed in its intended operating location. 7. Ensure that the condensate drain is connected as described on page 15. Stand-off feet Wall Mounting Sentinel Kinetic Plus & Sentinel Kinetic High Flow Sentinel Kinetic MVHR Installation & Commissioning...
Page 20 2. Securely connect this ducting to the spigots using worm-drive clips or cable ties. 3. Insulate all ducting running to and from atmosphere and any ducting that passes through an unheated space. Sentinel Kinetic MVHR Installation & Commissioning...
Page 21: Electrical Installation
Connect any switches or sensors required to control the unit by connecting to the terminal connectors at the bottom of the control unit as shown below and in Table 1. If necessary contact Vent-Axia regarding the wiring and fixing of accessories and sensors.
Page 22 Plate via a suitable gland to ensure the IP rating of the unit is not affected. Connect the other end of the cable to the switched fused spur. Use cable clamps and clips to secure the cable, as appropriate. Sentinel Kinetic MVHR Installation & Commissioning...
Page 23 If the LS core of the mains cable is not used it should be terminated in an appropriate manner. NOTES Power supplied to the unit via a 3 pole isolating switch, such as Vent-Axia Part Number 563518, must be supplied via the same circuit as the LS connection. Alternatively an isolator relay controller, part number 442030, may be used.
Page 24: Powering Up The Unit
2 seconds for fast scrolling. Press to activate Boost mode. See page 25 for options. Press and hold for 5 seconds to activate Purge mode. (Press and hold for 5 seconds to cancel Purge). Sentinel Kinetic MVHR Installation & Commissioning...
Page 25: Start-Up Screens
The Normal screen displays the rate of normal airflow (supply air) through the unit. If the installation has proportional sensors or an internal humidity α sensor fitted, and any of these are boosting the airflow, an symbol will be displayed. Sentinel Kinetic MVHR Installation & Commissioning...
Page 26 The normal screen top line will include Check Filter 30 % as a reminder to check and, if necessary, clean or replace the filters. When this has been done, press and hold the buttons for 5 seconds to reset the automatic message. Sentinel Kinetic MVHR Installation & Commissioning...
Page 27 N.B Alternative functions are assigned to S/W1, S/W2, S/W3 & SW5 when Control Mode 02 is selected in the start-up screens see Appendix One for further details. Sentinel Kinetic MVHR Installation & Commissioning...
Page 28 This screen is only displayed when the bypass is fitted. See Page 9 for a description of this function. Options available are Normal (default), Evening Purge, Night time purge and Off. Sentinel Kinetic MVHR Installation & Commissioning...
Page 29 2 minutes. This function will only work when the Summer Bypass is set to on. Return to the normal display by pressing the button or leave to timeout and return automatically after 2 minutes Sentinel Kinetic MVHR Installation & Commissioning...
Page 30: Commissioning
The following is attached to the unit and should be used as a check list prior to setting the air flows. Sentinel Kinetic MVHR Installation & Commissioning...
Page 31: Control Unit Screens Summary
Anti-frost 3 pre-heater and air flow mode Anti-frost 4 pre-heater and bypass mode Normal On All Set Security PIN? Set Service No Restore Defaults Humidity Sensor Currently Unavailable option RH RR Overrun Timeout after 2 minutes Sentinel Kinetic MVHR Installation & Commissioning...
Page 32: Commissioning Screens
Default Boost speed = 50%. See graph on page 10, 11 or 12 for setting the Extract airflow. The Boost speed cannot be set above the Cooker Hood speed or below Normal speed setting. Sentinel Kinetic MVHR Installation & Commissioning...
Page 33 Default Low speed = 20%. See graph on either page 10, 11 or 12 for setting the Extract airflow. The Low speed cannot be set below 1% or above Normal speed setting. Sentinel Kinetic MVHR Installation & Commissioning...
Page 34 This is used to prevent the unit from boosting unnecessarily when the light switch is switched on for short periods. Selectable range: min. = 00, max. = 10, default = 00. Sentinel Kinetic MVHR Installation & Commissioning...
Page 35 Setting finishes when the last off minutes for Sun3 are accepted, at which point the screen will now show All Set or holding the button for 3 seconds. Boost On All Set Sentinel Kinetic MVHR Installation & Commissioning...
Page 36 This feature allows an overrun of up to 60 minutes from a “Rapid rise” of humidity. Sentinel Kinetic MVHR Installation & Commissioning...
Page 37 Table 2: Boost & Normal Limits – Defaults and Adjustment Range Sensor Humidity Temperature Pure 0-10V Default (%) Range (%) Default (ppm) Range (ppm) Default (°C) Range (°C) Range (V) Boost limit 25-90 2000 200-2000 10-35 Normal limit 25-90 1000 200-2000 10-35 Sentinel Kinetic MVHR Installation & Commissioning...
Page 38 Momentary closure (1 sec) starts or stops boost for set SW4 Momentary time. Selectable range: min. = 15, max. = 30. Default = Off when no Vent-Wise card fitted. SW5 Flow SW5 Screen To select between boost or low flow Default = Boost Sentinel Kinetic MVHR Installation & Commissioning...
Page 39 Bypass Mode - While the supply air temperature is below 0°C, the antifrost mode will automatically activate. This mode will open the bypass to prevent frost forming on the heat exchanger. Sentinel Kinetic MVHR Installation & Commissioning...
Page 40 Building Management System (BMS) system. The output may controlled by a BMS system to switch the unit on or off for example in conjunction with a smoke alarm. No changes may be made to this screen. Sentinel Kinetic MVHR Installation & Commissioning...
Page 41 Available options: No (default) and Yes. The default commissioning settings are present when the unit is switched on and can be restored by setting the Restore Defaults screen to Yes Sentinel Kinetic MVHR Installation & Commissioning...
Page 42 Running Time Filter Service Suburban (default) 12 months, or can be set to Urban and Rural Restore Defaults User Screens Set Clock Summer Bypass Summer Bypass On Indoor Temp 25 C Outdoor Temp 14 C Sentinel Kinetic MVHR Installation & Commissioning...
Page 43: Maintenance
Condensate Drain Check the condensate drain tube is secure and clear of debris. Clean if necessary. Fastenings Check that all unit and wall-mount fastenings are sufficiently tight and have not become loose. Re-tighten if necessary. Sentinel Kinetic MVHR Installation & Commissioning...
Page 44: Spares
Maintenance Spares The following spares may be ordered from Vent-Axia: Part No Description 441768 Main Power Board 441767 Control Panel 443430 Temperature Sensor T1 (Supply) 443431 Temperature Sensor T2 (Extract) SENTINEL KINETIC SPARES 442356 G3 Filters, 2 per pack 441764 Heat Recovery Cell (bypass version 438222 &...
Page 45: Troubleshooting
Table 4: Fault Codes Code Problem Supply Fan not running Extract Fan not running Control PCB 24 V fuse (FS1) failure Temperature sensor T1 (supply) faulty Temperature sensor T2 (extract) faulty Wired Remote Control failure Sentinel Kinetic MVHR Installation & Commissioning...
Page 46 If you are within the commissioning screens the Antifrost and Room Too Cold Failures modes will not operate allowing the flow rates to be adjusted even in a property which is below 5C. Sentinel Kinetic MVHR Installation & Commissioning...
Page 47: Appendix One: Control Mode 02 Description
(see Service/Fault Code Screens on page 45). Mains Live 220-240 V AC, 50 Hz input Mains Neutral 220-240 V AC, 50 Hz input EARTH Mains Earth Earthing connector Switched Live 220-240 V AC, 50 Hz input Sentinel Kinetic MVHR Installation & Commissioning...
Page 48: Airflow Mode Selection
If running on boost due to pressing the when that device switches off. If a number of different devices are calling for boost flow, the unit will run at boost until the last one has reverted to normal. Sentinel Kinetic MVHR Installation & Commissioning...
Page 49: Appendix Two: Options And Accessories
Connect the flying leads of the opto-coupler pcb into the LED terminals, + to + and - to - Connect the pair of leads from the BMS to the terminal block of the opto-coupler pcb. Sentinel Kinetic MVHR Installation & Commissioning...
Page 50: Wireless Enable Kit (Consists Of Wireless Receiver And One Wireless Switch) (441865)
Boost speed. 5. Purge Feature: Pressing and holding the button for more than 5 seconds will send a signal telling the unit to run at Purge speed for 2 hours. Sentinel Kinetic MVHR Installation & Commissioning...
Page 51: Wired Remote Control (443283)
2 screws provided. The Wired Remote Control will automatically be detected. Isolator Relay Controller (442030) The isolating relay controller allows several LS signals to be combined from independent circuits. For instance, from lighting circuits on different floor levels. Sentinel Kinetic MVHR Installation & Commissioning...
Page 52: Remote Led Indicator (448347)
2 is - Connect the other end of the lead to the LED + &- terminals on the Kinetic unit PCB. Please ensure that the + goes to + and the – goes to -. Sentinel Kinetic MVHR Installation & Commissioning...
Page 54 Appendix Three PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Vent-Axia Vent-Axia Vent-Axia Kinetic B / L - 438222/ Kinetic BH /L- Kinetic Plus B - Model ID (Stock Ref.) : 443319/ L 443028/L...
Page 55 Appendix Three PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Vent-Axia Model ID (Stock Ref.) : Kinetic High Flow / L - 408449 / 408450 SEC Class SEC Value ('Average') -40.98 SEC Value ('Warm') -15.72...
Page 56 Appendix Three PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Vent-Axia Model ID (Stock Ref.) : Kinetic FH - 408167 SEC Class SEC Value ('Average') -42.51 SEC Value ('Warm') -17.25 SEC Value ('Cold') -87.39...
Page 58 Appendix Three...
Page 59 Appendix Three...
Page 60 Applicable only to products installed and used in the United Kingdom. For details of guarantee outside the United Kingdom contact your local supplier. Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:-...
