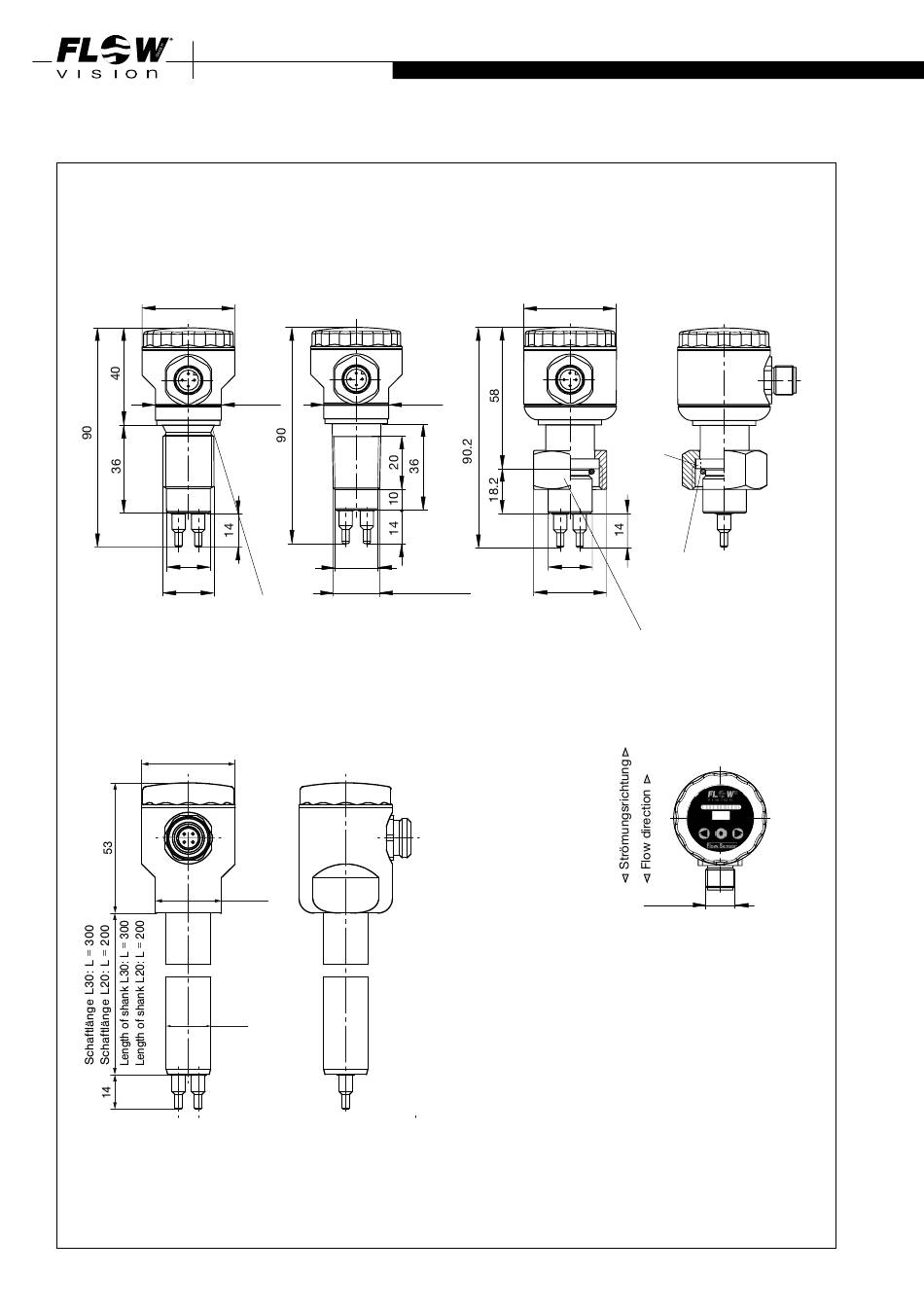

Strömungsmesser | FC50
Gewindeanschluss
Screw-in type process connection
ø38
ø18
G1/2A
DIN 3852 Form A
DIN 3852 form A
Einschiebeanschluss
Push-in type process connection
Ø 38
Ø 18
Alle Abmessungen in mm
All dimensions in mm
4
BESCHREIBUNG | DESCRIPTION
SW27
SW27
ø17.5
NPT1/2"-14
SW 27
Einsteckanschluss
Plug-in type process connection
ø38
Arretierungsnut
locking slot
ø18
SW30
O-Ring 15,3x2,2 FPM (Viton)
in Anlehnung an DIN ISO 6149
O-ring 15.3x2.2 FPM (Viton)
following DIN ISO 6149
Überwurfmutter G3/4"
cap nut G3/4"
Flow Switch
-
+
ON
Q
Adj.
M12x1
Fig. 1
