- Page 1 Hello, I’ve arrived! Now that I’m here you are only one flat-pack away from transforming your home.
- Page 2 Thank you for supporting us. We believe design belongs to everyone. From materials and processes to safety testing, production and delivery, we are passionate and committed to bringing you the best possible product so you can create beautifully functional spaces to feel comfortably you. Here are a few assembly tips before you get started: Make Time Set The Mood...

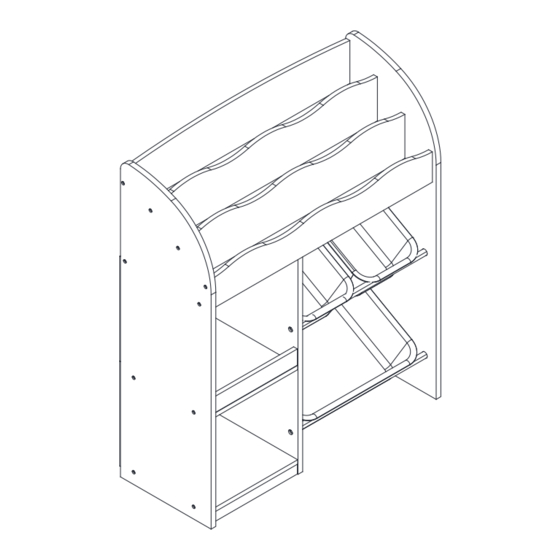

- Page 3 Theo Kids Bookshelf & Tub Organiser Thank you for purchasing the Theo Kids Bookshelf & Tub Organiser. Please follow these assembly instructions in detail. large cam bolt large cam small cam bolt small cam dowel screw screw Metal washer Fabric strip...
- Page 4 Theo Kids Bookshelf & Tub Organiser Insert 8 x dowels (A) to panels [7] and [8] as shown. Insert 8 x dowels (A) to panels [9] and [10] as shown. mocka.co.nz I mocka.com.au...
- Page 5 Theo Kids Bookshelf & Tub Organiser Finished Edge Attach panel [9] to panel [7] and secure with 2 x screws (G). Attach panels [10] and [17] to panel [8] and secure with 2 x screws (G) and 2 x screws(J).
- Page 6 Theo Kids Bookshelf & Tub Organiser Insert 2 x dowels (A) to panel [6] as shown. Attach panel [6] to panels [7] and [8] and [9] and [10] and secure with 4 x screws(G). Attach 6 x stickers (P) to the screw holes.
- Page 7 Theo Kids Bookshelf & Tub Organiser Insert 8 x dowels (A) to panels [3] and [13] and [14].Attach 2 x large cam Attach panel [3] to panel [13] and secure with 2 x small cams (E). bolts (B) to panels [13] and [14].Attach 2 x small cam bolts (D) to panel [3].
- Page 8 Theo Kids Bookshelf & Tub Organiser Attach panel [4] to step 9 assemble the piece and secure Attach panels [3] and [13] and [14] to panel [6] and secure with 2 x large cams (C). with 7 x screws (G).
- Page 9 Theo Kids Bookshelf & Tub Organiser Insert 6 x dowels (A) to panels [1] and [2] as shown.Insert 1 x small cam Attach panel [15] to panel [1] and secure with 2 x screws (G). bolt (D) to panel [2].
- Page 10 Theo Kids Bookshelf & Tub Organiser Attach panel [4] to step 13 assemble the piece and secure Attach panel [2] to panel [15] and secure with 1 x small cam (E). with 2 x screws (G). Attach 2 x stickers (P) to the screws holes.
- Page 11 Theo Kids Bookshelf & Tub Organiser Attach panel [2] to step 14 assemble the piece and secure Attach panel [12] to step 15 assemble the piece.Attach panel [16] to with 1 x screw (G). panel [6] and secure with 4 x bolts (F).
- Page 12 Theo Kids Bookshelf & Tub Organiser Attach panel [11] to step 17 assemble the piece and secure with 16 x screws (N). Attach panel [5] to step 16 assemble the piece and secure with Attach 6 x cushions (K) to panels [4] and [5] and [6] as shown.
- Page 13 Theo Kids Bookshelf & Tub Organiser Attach 2 x fabric strips (I) to panels [4] and [5] and secure with 2 x metal Punch two holes in the wall and insert 2 x wall anchors (O) and secure washers (H) and 2 x screws (J).
- Page 14 Theo Kids Bookshelf & Tub Organiser Put 2 small storage bins L and 1 large storage bins M into the cabinet. mocka.co.nz I mocka.com.au...
