MuxLab 500768 Quick Installation Manual

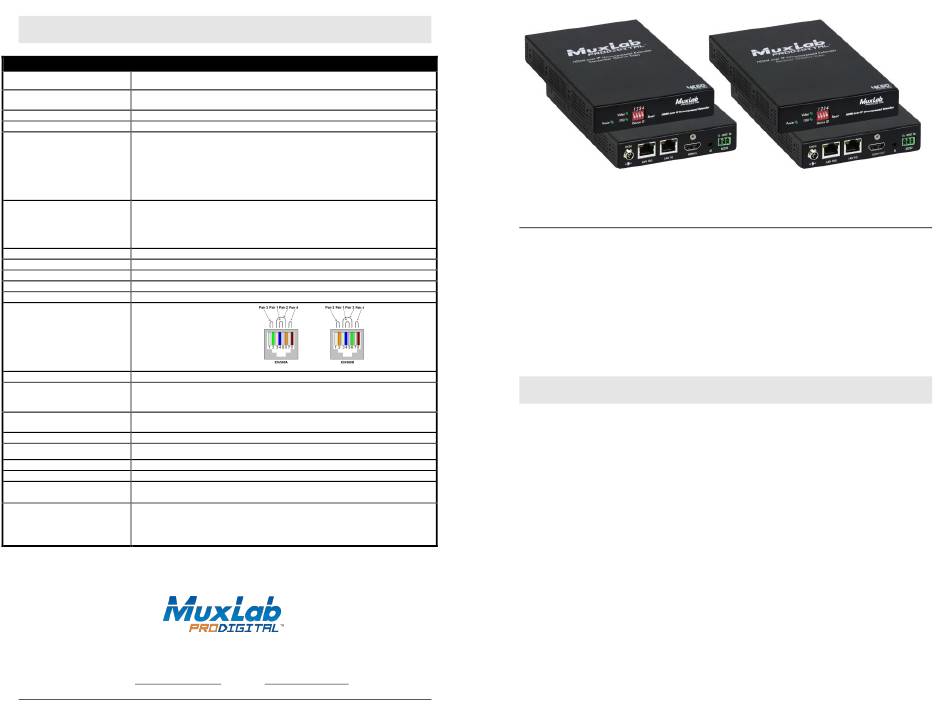

Specifications
Specifications
Environment HDMI 2.0b and HDCP 2.2
Devices Blu-Ray, projectors, monitors, TV, PC, laptops, and media servers supporting
HDMI.
Bandwidth 297 MHz
Signals HDMI 2.0b protocol, up to 4K @ 60Hz (4:2:0)
Connectors Connectors per TX and RX:
One (1) HDMI receptacle.
Two (2) RJ45S for Cat 5e/6 unshielded or shielded twisted pair (for 10GbE and
1GbE ports).
One (1) 3.5mm jack for IR emitter or IR sensor.
One (1) 3-pin terminal block connector for RS232.
Note: Cables not included.
One (1) 2.1mm locking power jack (for DC power).
Maximum Distance
Supports up to 4K @ 60Hz (4:2:0) at 100m over Cat 6a/7 and at 55m over Cat 6
Note: When installed in an electrically noisy environment, an STP cable must be
Based on a maximum length of
used. Also, cross-connection reduces the effective distance depending on the
6.6ft (2m) of HDMI cable per
grade of twisted cable used.
end.
Latency Zero Latency
Compression Uncompressed
Network Bandwidth < 10Gbps
Network Requirement 10Gig Network XFI, IEEE 802.3
IR Frequency 38 to 56KHz
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive. Use
Pin 3 (R) Pin 6 (T)
EIA/TIA 568A or 586B straight-
Pin 4 (R) Pin 5 (T)
through wiring.
Pin 7 (R) Pin 8 (T)
Cable One (1) Cat 5e/6 or better twisted pair cable required
Power Source Input: 100-240VAC @ 50-60Hz
Output: 12VDC
Includes multi-blades for US, UK and EU
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.33" x 6.93" x 1" (11cm x 17.6cm x 2.5cm)
Dimensions
Weight 1.16 lbs (0.53 kg)
Regulatory: FCC, CE, RoHS
Compliance
Warranty 3 years
Order Information 500768-TX HDMI over IP Uncompressed Transmitter, 4K/60
500768-RX HDMI over IP Uncompressed Receiver, 4K/60
Accessories 500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
(These items are sold
separately) 500990
500994
2321 Cohen, Montreal, QC Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Storage: -20° to 85°C
Flammability: 94V0
IR Emitter
IR Sensor
Fax: (514) 905-0589
URL: www.muxlab.com
94-000888-A SE-000888-A

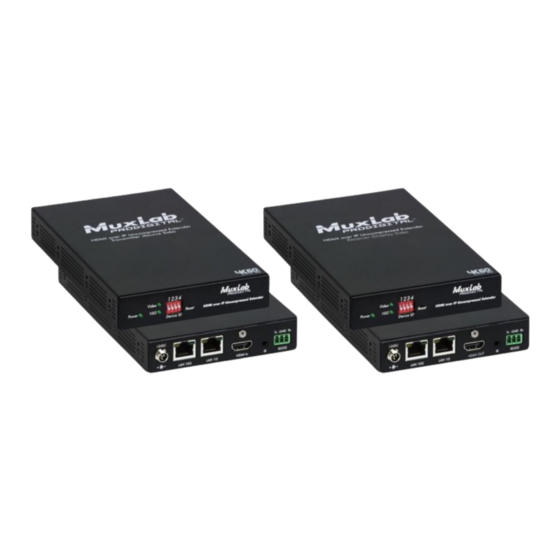

HDMI over IP Uncompressed Extender, 4K/60
Quick Installation Guide
The HDMI over IP Uncompressed Extender, 4K/60 allows HDMI source equipment supporting up
to 4K (3840x2160) resolution @ 60Hz to be connected via Cat5e/6 cable up to 330ft (100m) from
a 10G Ethernet Switch, in point-to-point, point-to-multipoint and multipoint-to-multipoint
configurations. The Transmitter and Receiver, also each support a 1G Ethernet Switch port to
connect additional network devices, plus a directional IR port and RS232 port for remote control of
end devices. The MuxLab Pro Digital Network Controller (500811) is available to simplify
centralized configuration and control, software updates, and allows for management from the
MuxLab Control smartphone and tablet App, and third party control Apps. Applications include
commercial and residential AV systems, classroom projector systems, digital signage, boardroom
systems, collaborative PC systems, and medical information systems.
Installation
1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the
above front and rear product views for further details.
2.
Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specifications (see Specifications table for more details).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant cable.
3b. If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or higher)
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use a 10G Ethernet Switch between Transmitter and Receiver.
4.
To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant cable.
4b. If the application is point-to-point, then connect one (1) Cat 5e/6 cable (or higher)
coming from the Transmitter, to the RJ45 LINK connector on the Receiver. If
transmitting over the network, use a 10G Ethernet Switch between Transmitter and
Receiver. You may use the 1G port of the TX and RX to connect additional
network devices (e.g. for managing purposes) if required. In both point-to-point
cases, ensure the TX and RX have the same Dip Switch setting.
5.
If the configuration is a point-to-multipoint or multipoint-to-multipoint:
5a. You will need to use an Ethernet Switch with 10G ports and DHCP Server support. In
500768
