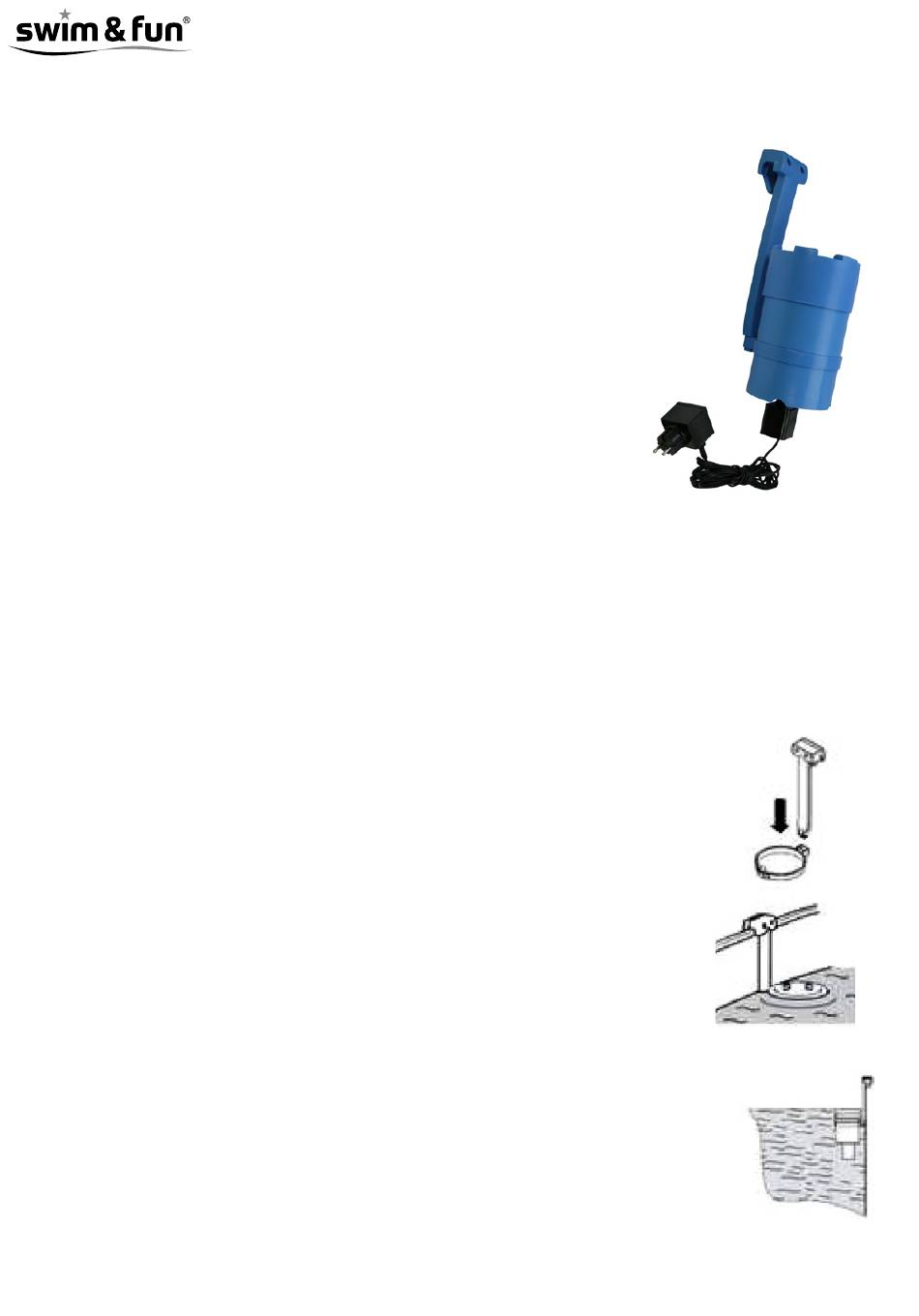

6. Installation of the Pool Skimmer Filter
Important: This manual contains important safety information
about the installation and use of the skimmer filter. This manual
should therefore be carefully read by the person installing the filter
and by those who regularly handle the pool and filter. Keep this
manual so that it is available should there be any questions as to
the function and operation of the filter at a later time.
Parts List:
In the carton containing the skimmer filter, you will find the following parts:
• 1. Bracket for wall mount
• 2. Floating surface skimmer
• 3. Cartridge filter
• 4. Motor and transformer
General Description
This skimmer filter is intended for use in fresh-water swimming pools. It contains an electromechanical de-
vice, safety class IPX8 (resistant to the penetration of dust, solid particles and moisture).
Connecting the Filter
The transformer shall be connected to a standard 230V 50Hz power source connected to an HPFI residual current de-
vice <= mA.
Installation
The installation of this filter system is not difficult. The instructions in this manual must be carefully
followed. The skimmer filter shall be placed in the pool facing the wind so that any dirt or overflow
water is more easily led toward the filter.
Placement of the Mount
The mount arm is pushed into the filter mount brackets.
The skimmer filter and the filter holder are installed at the edge of the pool.
The nuts are inserted into the holes on the bracket sitting on the outside of
the edge of the pool.
The two screws are inserted from the pool side and are screwed in place.
The filter system is now ready for use.
Adjustments and Fastening
Loosen the mount and insert the skimmer filter so far down that the
float is level with the water table. Please note that the float should
be approximately halfway on the mount arm. Fasten the mount in
place.
72
