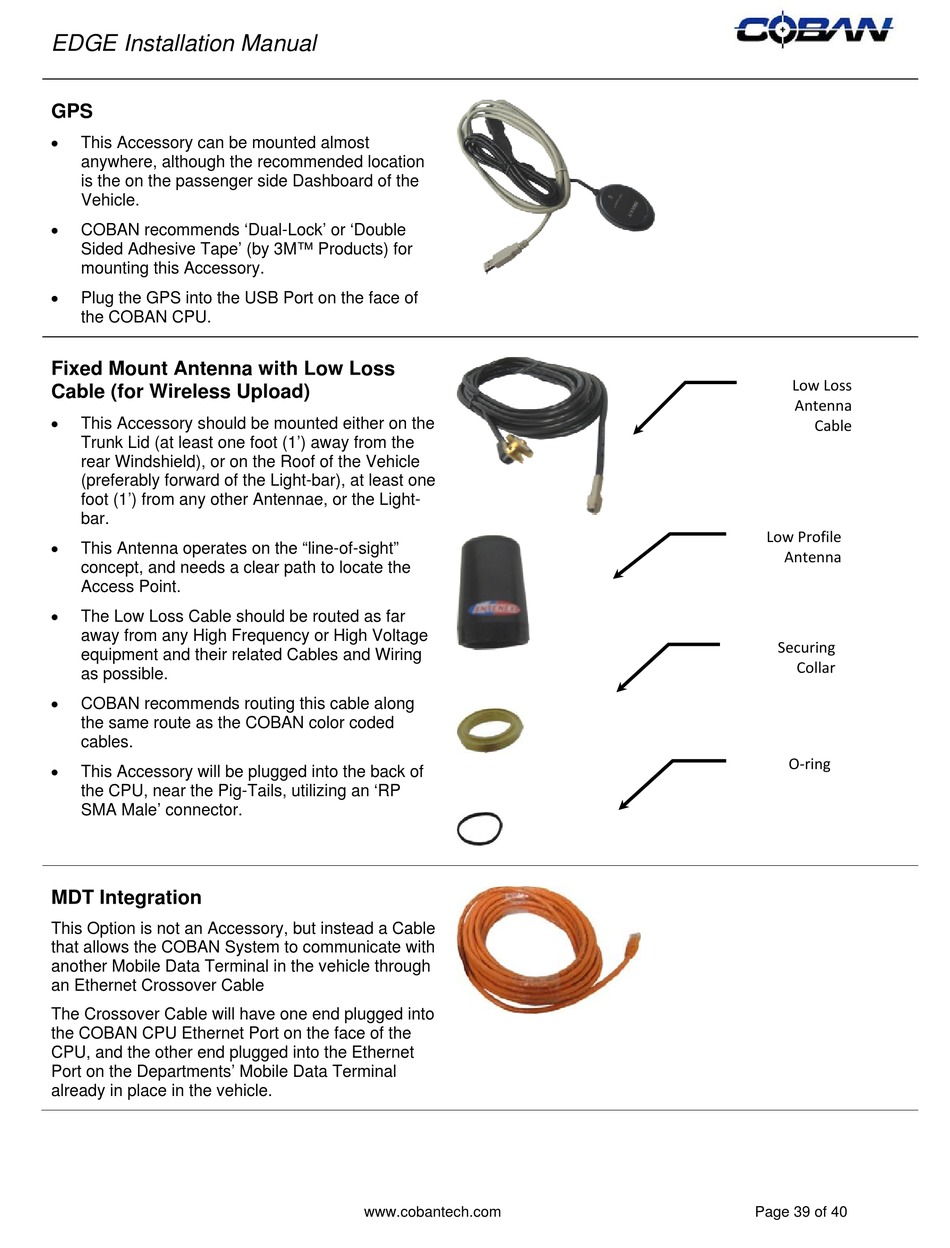

Gps; Fixed Mount Antenna With Low Loss Cable (For Wireless Upload); Mdt Integration - Coban EDGE Installation Manual

EDGE Installation Manual

GPS


This Accessory can be mounted almost
anywhere, although the recommended location
is the on the passenger side Dashboard of the
Vehicle.

COBAN recommends 'Dual-Lock' or 'Double
Sided Adhesive Tape' (by 3M™ Products) for
mounting this Accessory.

Plug the GPS into the USB Port on the face of
the COBAN CPU.
Fixed Mount Antenna with Low Loss
Cable (for Wireless Upload)

This Accessory should be mounted either on the
Trunk Lid (at least one foot (1') away from the
rear Windshield), or on the Roof of the Vehicle
(preferably forward of the Light-bar), at least one
foot (1') from any other Antennae, or the Light-
bar.

This Antenna operates on the "line-of-sight"
concept, and needs a clear path to locate the
Access Point.

The Low Loss Cable should be routed as far
away from any High Frequency or High Voltage
equipment and their related Cables and Wiring
as possible.

COBAN recommends routing this cable along
the same route as the COBAN color coded
cables.

This Accessory will be plugged into the back of
the CPU, near the Pig-Tails, utilizing an 'RP
SMA Male' connector.

MDT Integration

This Option is not an Accessory, but instead a Cable
that allows the COBAN System to communicate with
another Mobile Data Terminal in the vehicle through
an Ethernet Crossover Cable
The Crossover Cable will have one end plugged into
the COBAN CPU Ethernet Port on the face of the
CPU, and the other end plugged into the Ethernet
Port on the Departments' Mobile Data Terminal
already in place in the vehicle.
www.cobantech.com
Low Loss
Antenna
Cable
Low Profile
Antenna
Securing
Collar
O‐ring
Page 39 of 40
